Cascade K Series User Manual

13
6055911-R8 EN
I
NSTALLATION
13

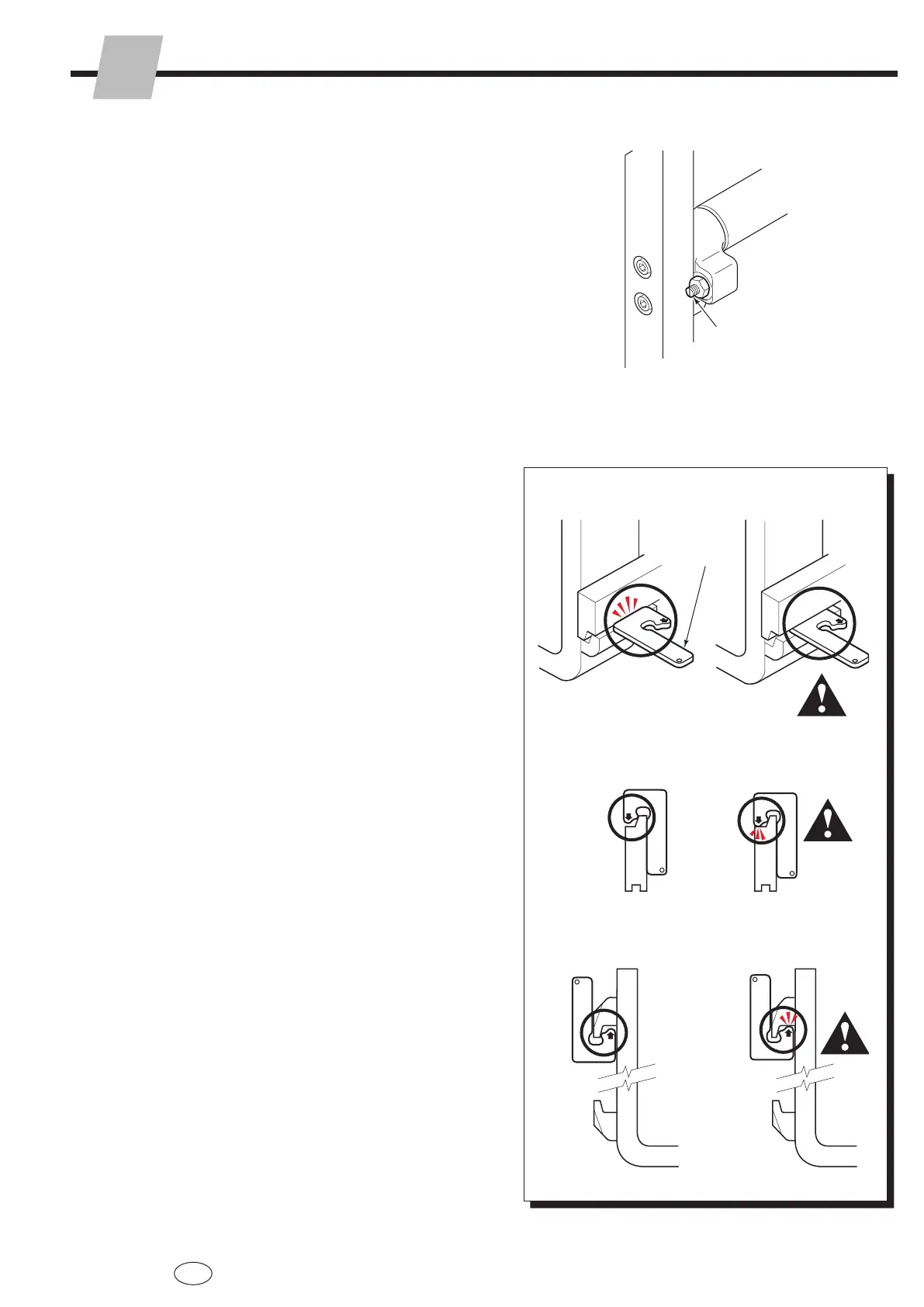

Back (Driver's) View
FP0760.eps
Flow Restrictor
(each side)
A
14
Inspect fork hooks,
carriage bar clearance
NOTE: Use go/no-go Wear Gauge Part No. 209560
(Class II), 209561 (Class III) and 6104118 (Class IV).
A Inspect the fork lower hooks and carriage bar.
If the gauge fits between the carriage bar and
lower hook, repair or replacement is needed.
B Inspect the upper carriage bar. If the gauge
arrow touches the carriage bar, repair or
replacement is needed.
C Inspect the fork upper hooks. If the gauge
arrow touches the hook, repair or replacement
is needed.
Adjust forks for equal movement
(if required)
NOTE: Attachment is factory-adjusted for equal
fork movement when operated at recommended
pressure and flow rate.
A Locate flow restrictors at each end. Loosen
jam nuts and screw both flow restrictors in until
they bottom. Screw each restrictor out (CCW)
three (3) turns.
B Open forks fully, then close. Look for unequal
fork movement.
C On faster fork (one that bottoms first), screw
flow restrictor in (CW) 1/2 turn.
D Repeat Steps B and C until fork movement is
equal. Tighten jam nuts.
FP0832.eps
OK
OK
OK
FORK LOWER HOOKS, CARRIAGE
UPPER CARRIAGE BAR
FORK UPPER HOOKS
Wear
Gauge
