Case IH 95C - Engine Service - Install

Engine-Engineandcrankcase
Engine-Install
1.-Rettheexiblebeltonthealternatorandtakeup
theslackaccordingtotheprocedureinAlternator-
Tensionadjustbelt(55.301).
2.-Repositionthecompressorandtherelevantbelt
followingthisprocedure:
-Repositionthecompressoronthesupportandwith
therelevantpipesupportsecureitwiththescrews
-Totthebeltpolyvusethetool
380200011.

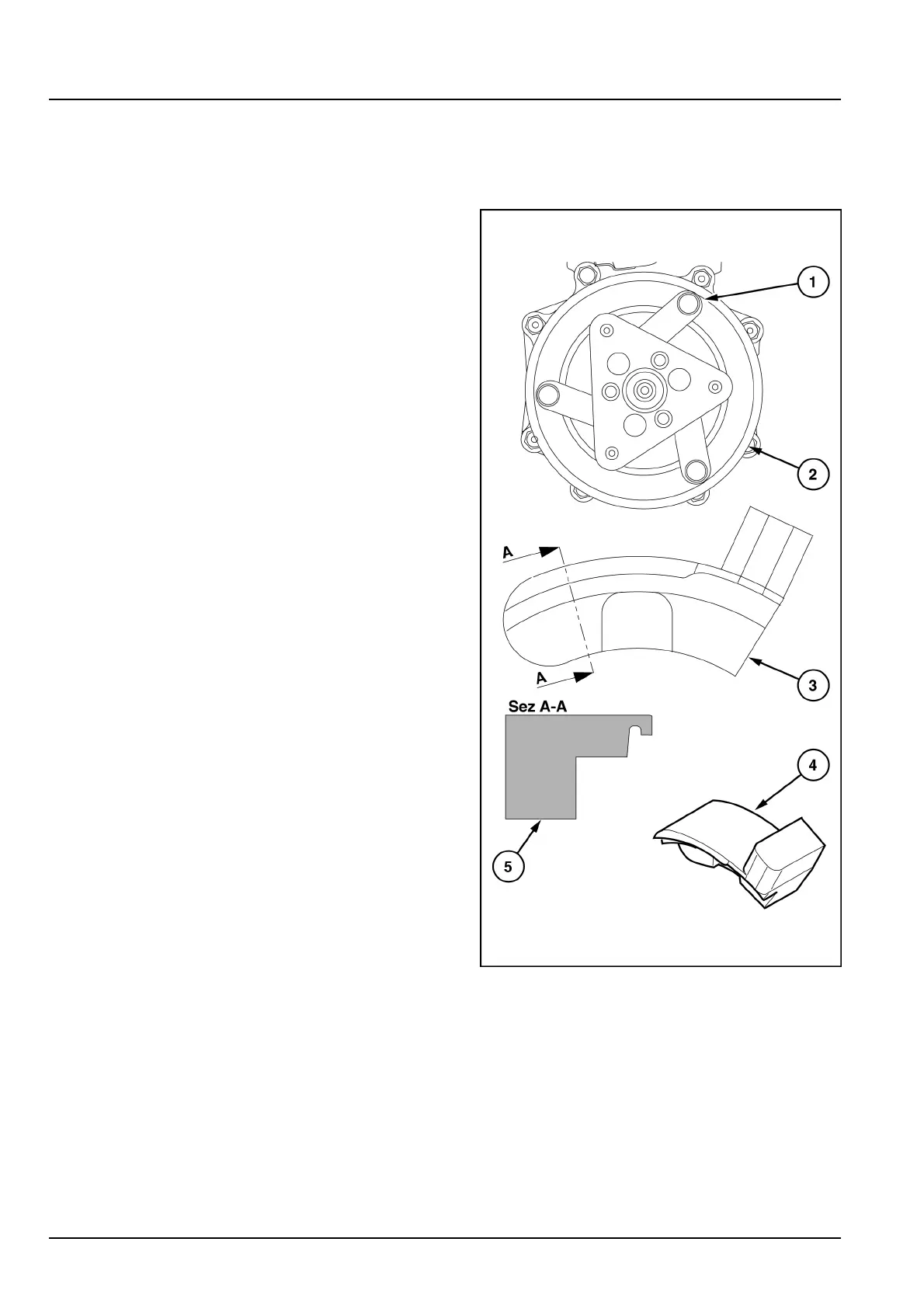

(1).Compressorclutchactuatordrivebracket.
(2).polyvbeltpulleyouteredge.
(3).Toolrecess.Itisusedtodrivethetool;this
recesshousesthebracket(1).
(4).Tail.Usedtodrivethepolyvbeltinthepulley
seat.
(5).Hitching.Thankstothisrecess,wheretheouter
edge(2)ishoused,thetoolremainshitchedtothe
compressor.
