Engine-Fueltanks
5.Disconnectthefuelhosesatthetank,aswellasthe
levelsensorconnector(1).
NOTE:Labelthefuelhoseswiththecorrectconnection
points.
NOTE:Immediatelycoverthehoseswithplugstominimize
theintroductionofairintothesystem.
6.Attachhoistingstrapsonthefoureyebolts(2).
7.Withasuitableliftingdevice,liftandcarefullyremove
thefueltankfromthechassishousing.
NOTICE:Ifyouneedtotiltthecabmoretoremovethe
tank,tiltthecabcarefully.Avoiddamagetowindowsand
rear-viewmirrors.

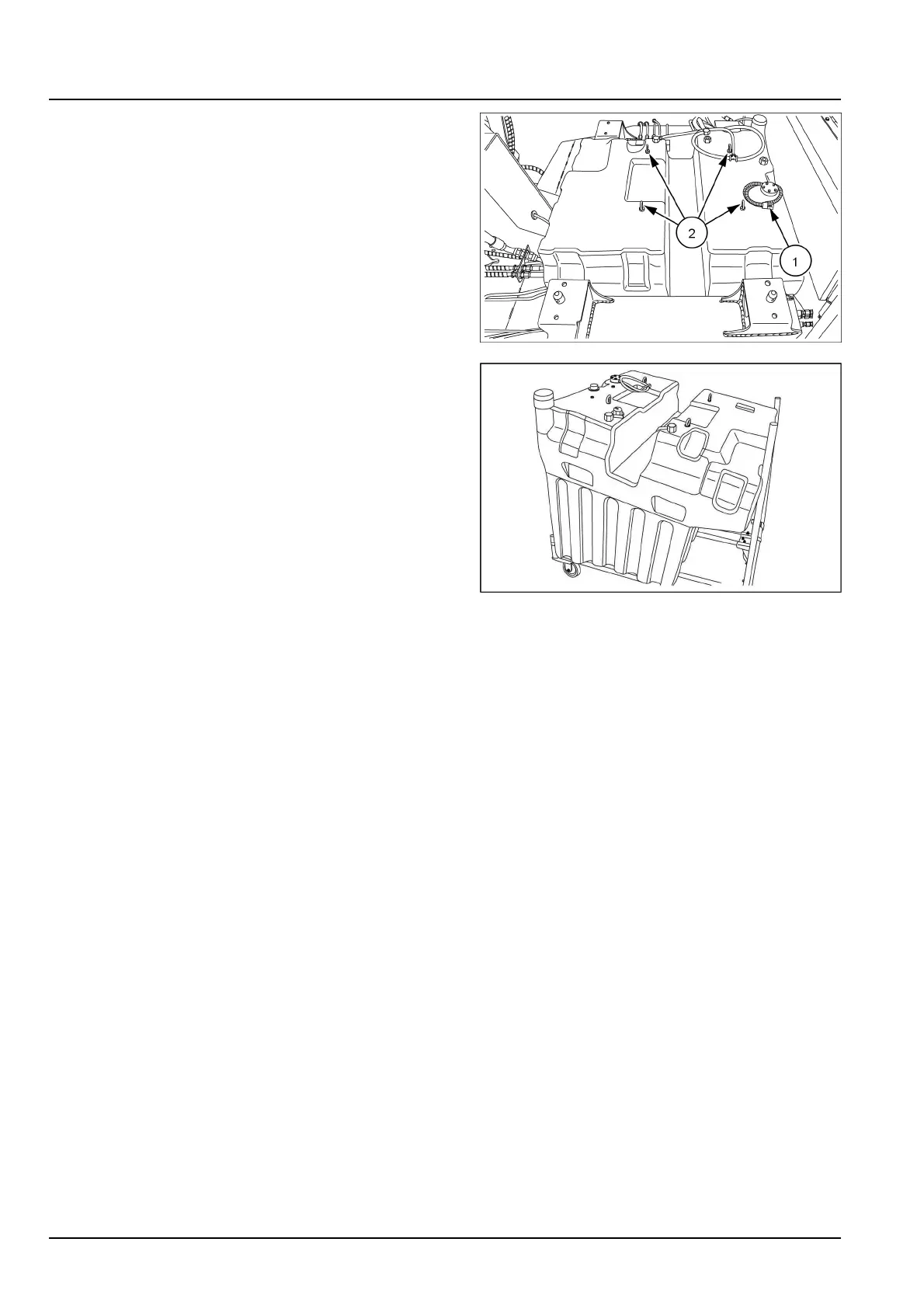

NOTE:Figure6showstheremovedtankonamobiletres-
tle.
SOIL17SC00790AA5
SOIL17SC00971AA6
Nextoperation:
Fueltank-Install(10.216)
4806361204/05/2018
10.2[10.216]/6
