Engine-Aircleanersandlines
Airintakesystem-Installto8230and9230
Prioroperation:
Airintakesystem-Removefrom8230and9230(10.202)

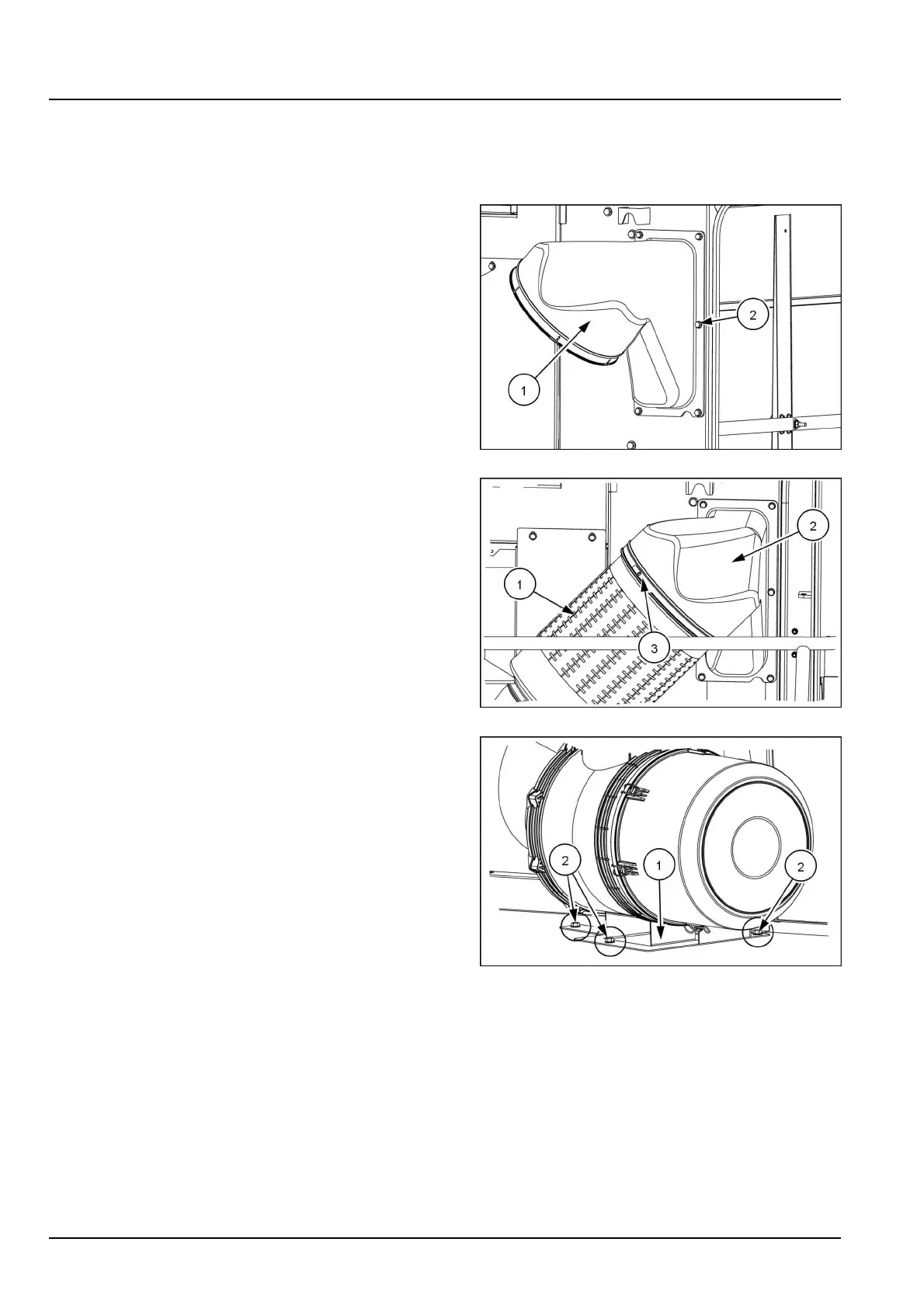

1.Iftheairplenum(1)wasremoved,positionittothe
coolerboxandinstallthesixangebolts(2)securing
theairplenumtothecoolerbox.T orqueto6N·m(4lb
ft)±2N·m(1lbft)
NHPE13AF00539AA1
2.Carefullyinstalltheaircleanerassembly(1)ontothe
airplenum(2)andpositiontheclamp(3).Tightenthe
clamp.
NHPE13AF00448AA2
3.T oinstalltheairlterhousing,aligntheaircleanerbase
(1)totheexistingmountingholesintherearplatform
andinstallthreeM10x25mm(2)angebolts.Tighten
tostandardtorque.
NHPE13AF00449AA3
4804083715/08/2017
10.1[10.202]/6
