maintenance

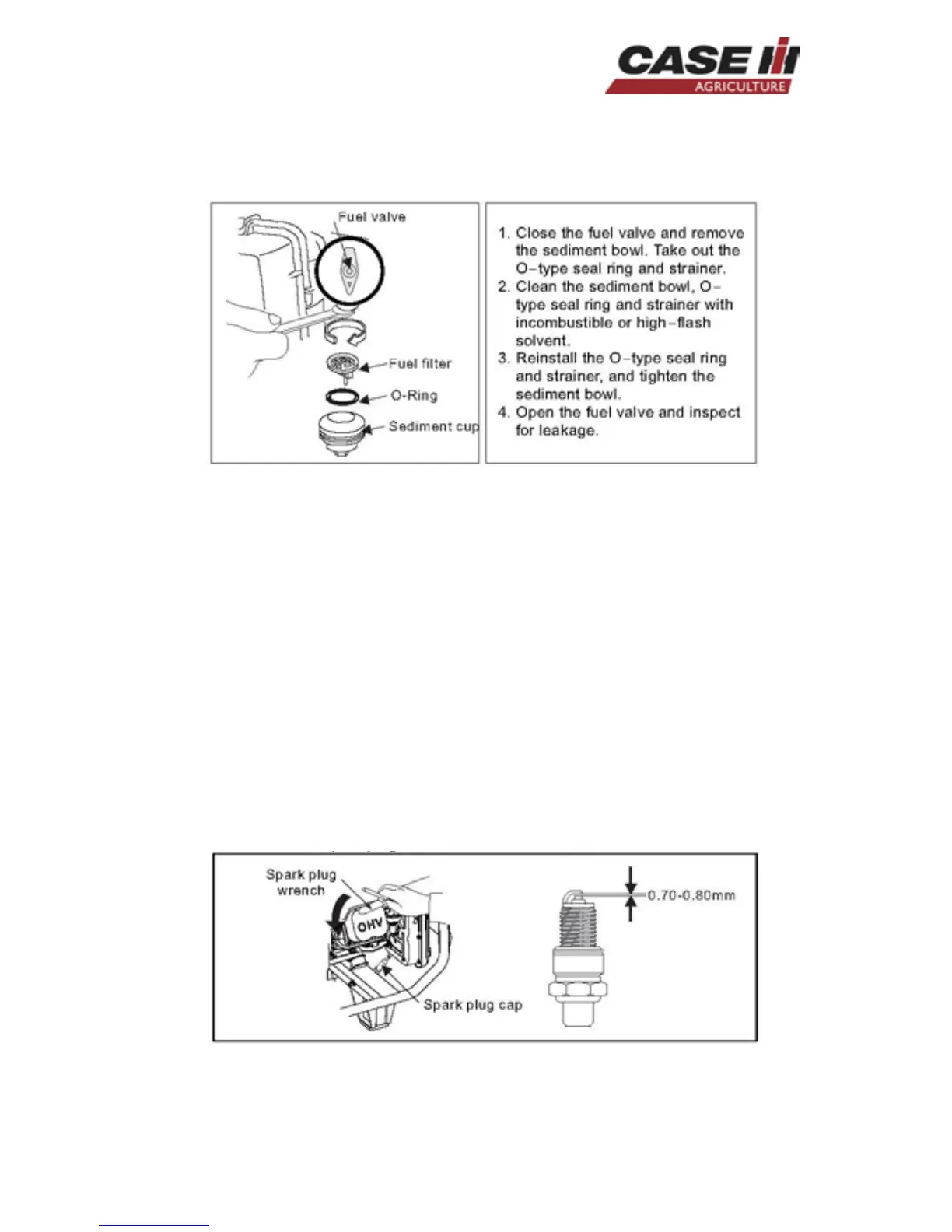

CLEAN THE FUEL VALVE LEVER SEDIMENT CUP

CLEAN THE SPARK PLUG

1) Remove the spark plug cap.

2) Clean the spark plug base.

3) Remove the spark plug with the spark plug socket spanner.

4) Inspect the spark plug insulator visually for damage. If it is damaged

replace a new one.

5) Measure the spark plug gap with a gap gauge. Twist the side

electrode to adjust the gap. The gap should be kept between 0 70

and 0 80mm.

6) Inspect if the washer of the spark plug is in good condition.

7) Reinstall the spark plug and tighten it with the spark plug socket

spanner. Press down the washer of the spark plug and place the spark

plug cap.

Recommended spark plug models: F7RTC and F7TC
