SECTION 2 - CONTROLS, INSTRUMENTS AND OPERATION
2ï92

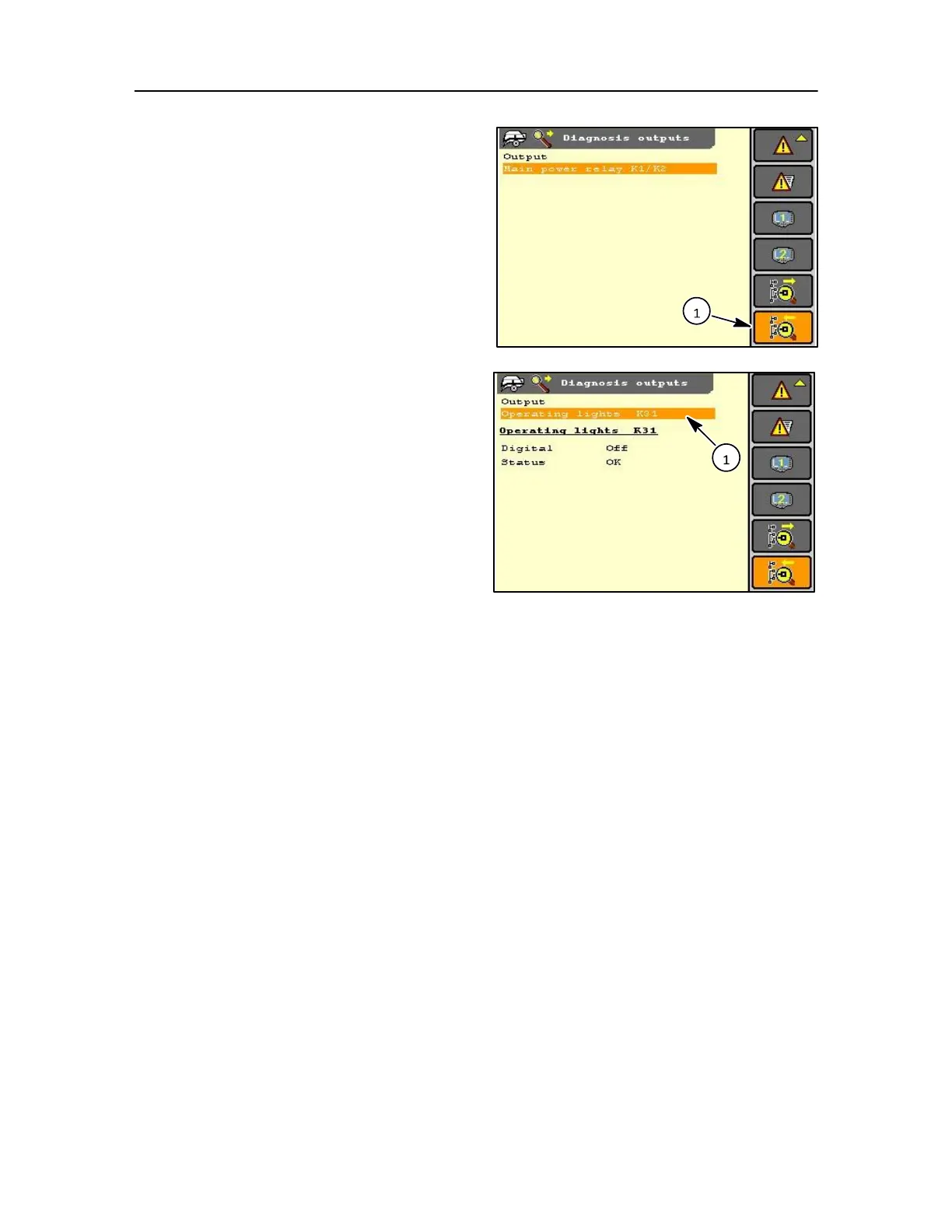

DIAGNOSIS OUTPUT
Outputs for solenoids and other sources can be
displayed, and used by Dealers to make adjustments.
These can be viewed through the diagnosis screen
using the diagnosis output icon (1), and by use of the
soft key, or touch screen.
An example of an output diagnosis is operating lights
as shown here where the light can be viewed as
digital status.
Shown below is the list of outputs that can be checked
by selecting the outputs field (1) using the key pad or
rotary encoder:
