SECTION 2 - CONTROLS, INSTRUMENTS AND OPERATION
2ï38

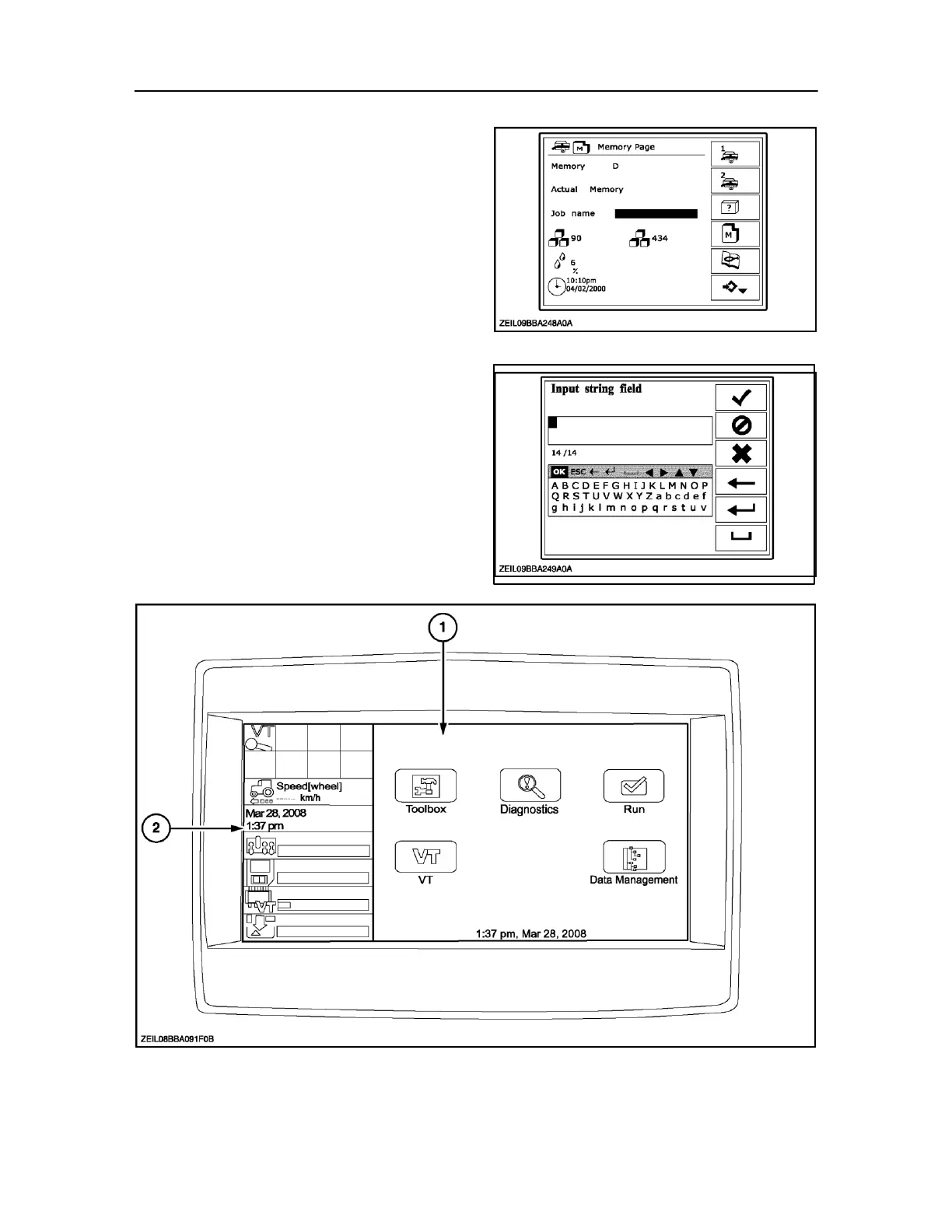

Memory Page
In the memory page input of data is possible by the
operator to record bales made for each job or
customer.
The customer name can be recorded as required using
the rotary encoder.
Input string field
Whenever an alpha numeric input is required in a field
the input string field is displayed.
By using the rotary encoder select letters, numbers, and
use OK to confirm when the data is to be saved.
68
