SECTION 58 - DRIVELINES - CHAPTER 3
58-10
TOP CAP
Removal

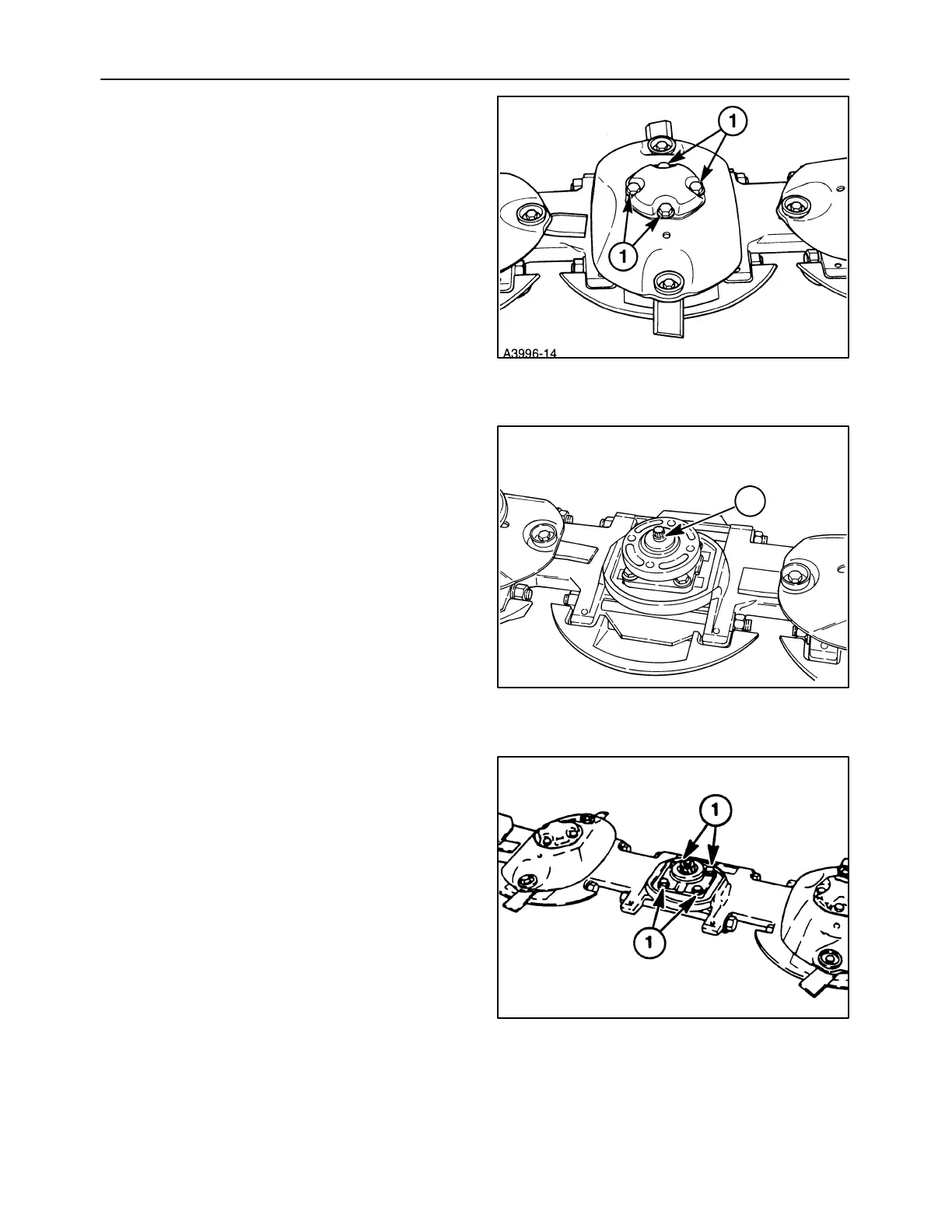

1. Block the cutter bar discs in place with a
hardwood block to lock up the cutter bar, and
remove the disc of the affected module by
removing the four retaining bolts, 1, securing the
disc and cover to the disc hub.
2. Clean any material buildup from around the disc
hub and top cap assembly.
3. With the cutter bar blocking still in place, remove
the disc hub retaining bolt, 1.
4. Remove the hub, and remove any remaining
material buildup on top of module and top cap
assembly.
NOTICE: Removing the disc hub will expose the
upper bearing in the top cap assembly. Cover this
area with a cloth, or use special tool #FNH23ET95 to
prevent contamination from entering the bearing.
5. Remove the four retaining bolts, 1, and pry the top
cap assembly off the lower module.
16
19986023
1
17
18
