SECTION 00 -- GENERAL INFORMATION -- CHAPTER 1
00-9

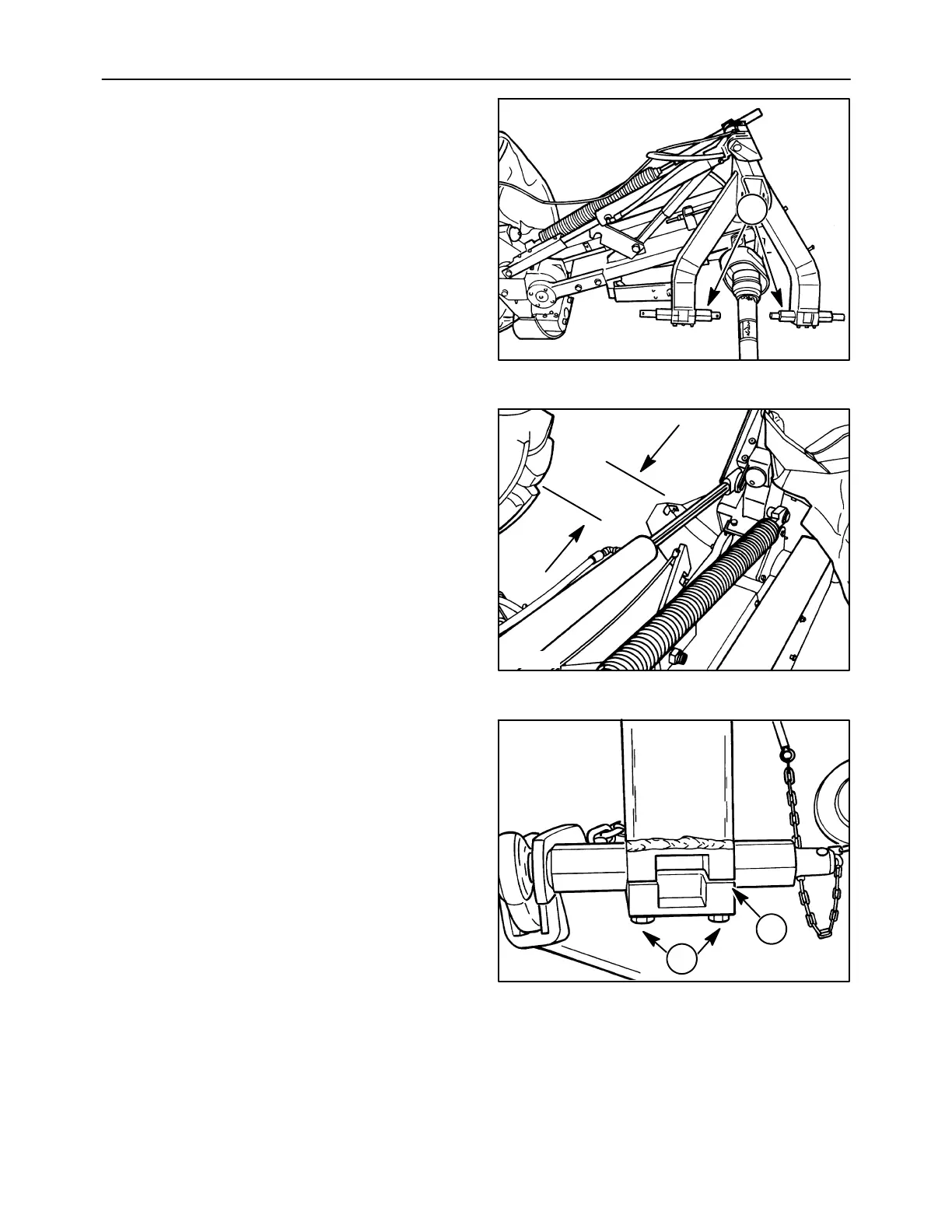

ATTACHING THE MOWER TO THE
TRACTOR
Models MD82 and MD92
Prior to installing the mower onto the tractor, the
mower must be adjusted to match the tractor.
Depending on the size of the tractor and the wheel
spacing, it may be necessary to move the
hex-shaped lower lift pins, 1.
NOTICE: Ideally a 102 mm (4 in) clearance should be
held between the outside edge of the tractor tire and
the mower inner shield for a full cut of the cutter bar
at all times.
The hex-shaped hitch pins mounted on the bottom of
the main frame arms can be moved to position the
mower behind the tractor for different tread widths. To
do this, loosen the four clamp bolts, 1, on each main
frame arm until the hitch pins can be moved.
Retighten the clamp bolts evenly so that both sides of
the clamp block, 2, have equal clearance to the main
frame arm.
NOTICE: Always position the hitch pins so that the
long round pin is towards the outside of the main
frame. Do not position the long round pins inside the
main frame, or damage to the mower PTO drive shaft
could occur.
A3680-2
1
12
A3679-6
4 in
(102 mm)
13
A3679-26
1
2
14
