SECTION 00 -- GENERAL INFORMATION -- CHAPTER 1
00-16

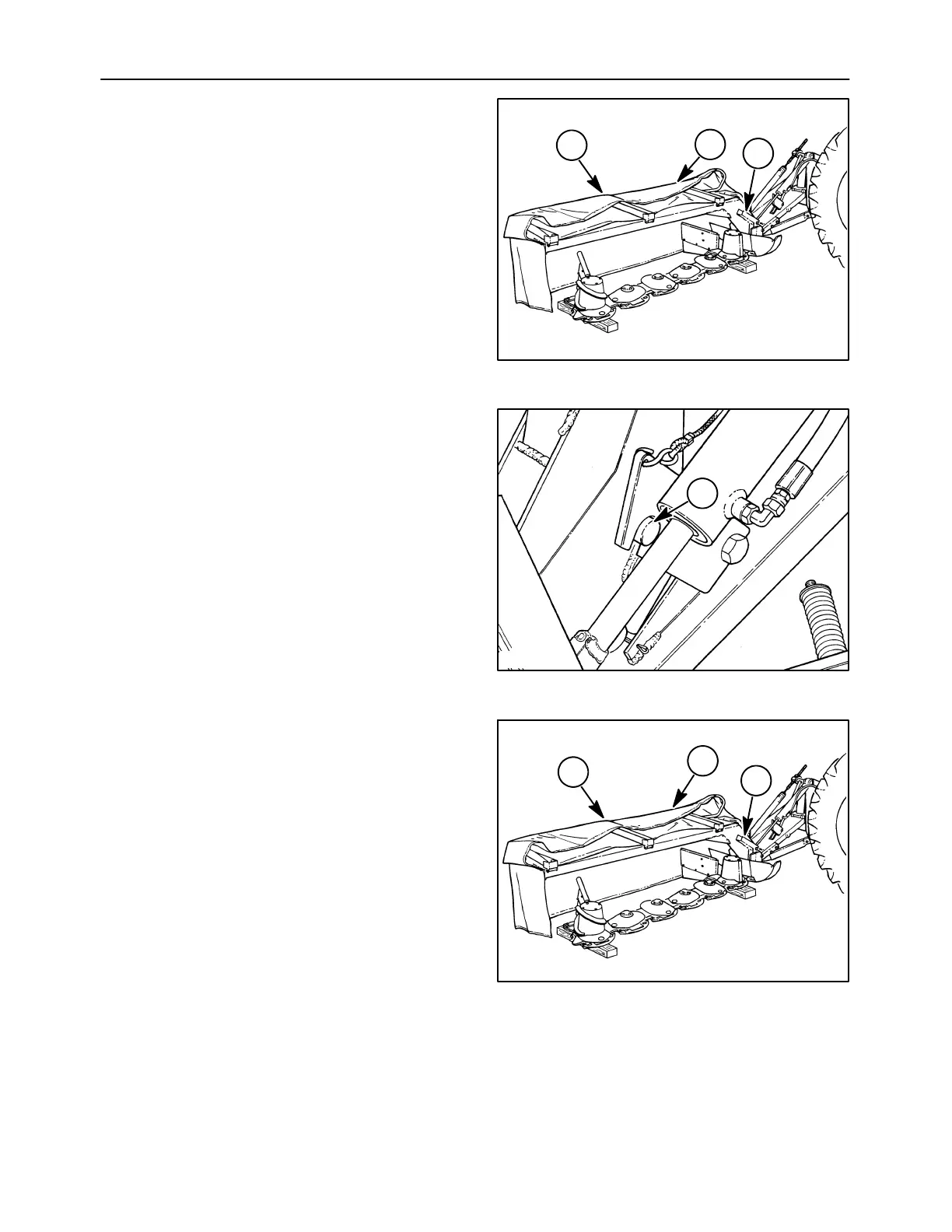

TRANSPORTING THE MOWER
1. Fold the front half of the cutter bar curtain, 1,
rearward. Secure the curtain with the rubber tie
strap, 2. Flip the cutter bar up-stop channel, 3,
toward the cutter bar and against the brace.
2. Raise the cutter bar with the tractor hydraulics.
Raise it high enough to engage the transport
latch, 1.
NOTICE: Before raising the cutter bar with the hy-
draulic cylinder, make sure there is adequate clear-
ance between the machine and the tractor. The top
link may have to be lengthened for the cutter bar to
clear the cab.
REMOVING THE MOWER FROM THE
TRACTOR
1. Fold the front half of the cutter bar curtain, 1,
rearward. Secure the curtain with the rubber tie
strap, 2. Flip the cutter bar up-stop channel, 3,
toward the cutter bar and against the brace.
A3680-20r
3
1
2
29
A3680-17
1
30
A3680-20r
3
1
2
31
