SECTION 00 -- GENERAL INFORMATION -- CHAPTER 1
00-17

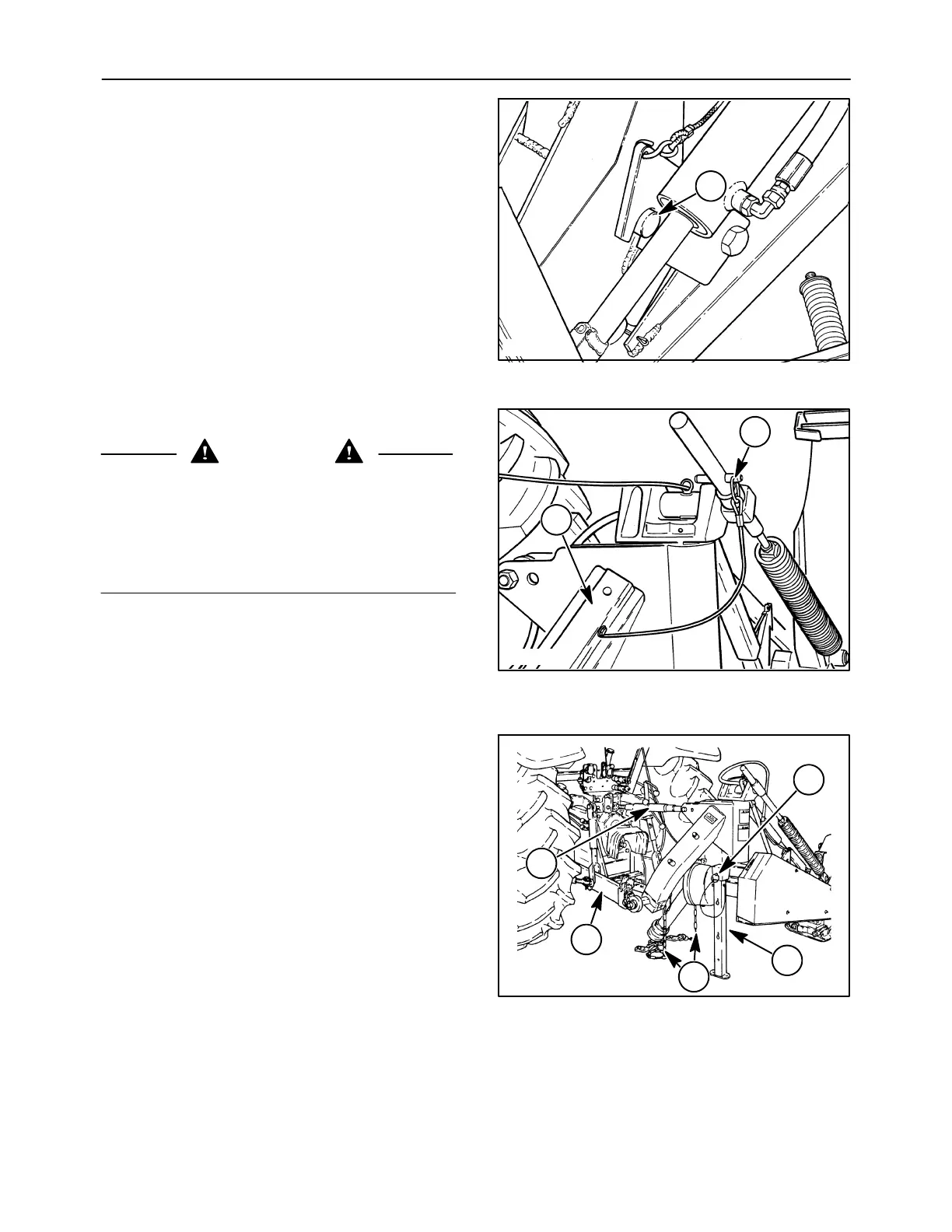

2. Raise the cutter bar with the tractor hydraulics.
Raise it high enough to engage the transport
latch, 1.
NOTICE: Before raising the cutter bar with the hydraulic
cylinder , make sure there is adequate clearance be-
tween the machine and the tractor . The top link may
have to be lengthened for the cutter bar to clear the cab.
3. Remove the flotation spring pin, 1, from the spring
rod.
WARNING
Disconnect the flotation system before attempt-
ing to remove the implement from the tractor.
Failure to disconnect the flotation system could
result in sudden movement, causing bodily inju-
ry. Failure to comply could result in death or seri-
ous injury.
M1496
4. Remove the jack stand, 2, from the storage
position.
5. Raise the tractor three-point hitch high enough to
install the jack, 1, in the lift frame mount and install
thepin,2,tosecureit.
6. Disconnect the limit chains, 3, from the rear of the
tractor.
7. Lower the cutter bar to the ground in the mowing
position and lower the tractor three- point hitch so
the mower frame is sitting on the jack as shown.
8. Loosen, unlock, or remove the tractor sway bars
or equivalent.
9. Disconnect the three-point hitch arms from the lift
links, 4, and top link, 5, from the mower.
10. Disconnect the hydraulic hose, transport latch
rope, and PTO from the tractor.
A3680-17
1
32
A3679-32r
1
2
33
36091680
1
2
3
4
5
34
