SECTION 35 -- HYDRAULICS -- CHAPTER 1
35-2
The lift cylinder is a single acting cylinder, and is re-
pairable. A screw-in orifice (0.040 in) plate is installed
in the inlet port to control the speed of stroke of the
cylinder.
It is possible to rebuild the lift cylinder without fully re-
moving it from the unit.
HYDRAULIC CYLINDERS
Disassembly

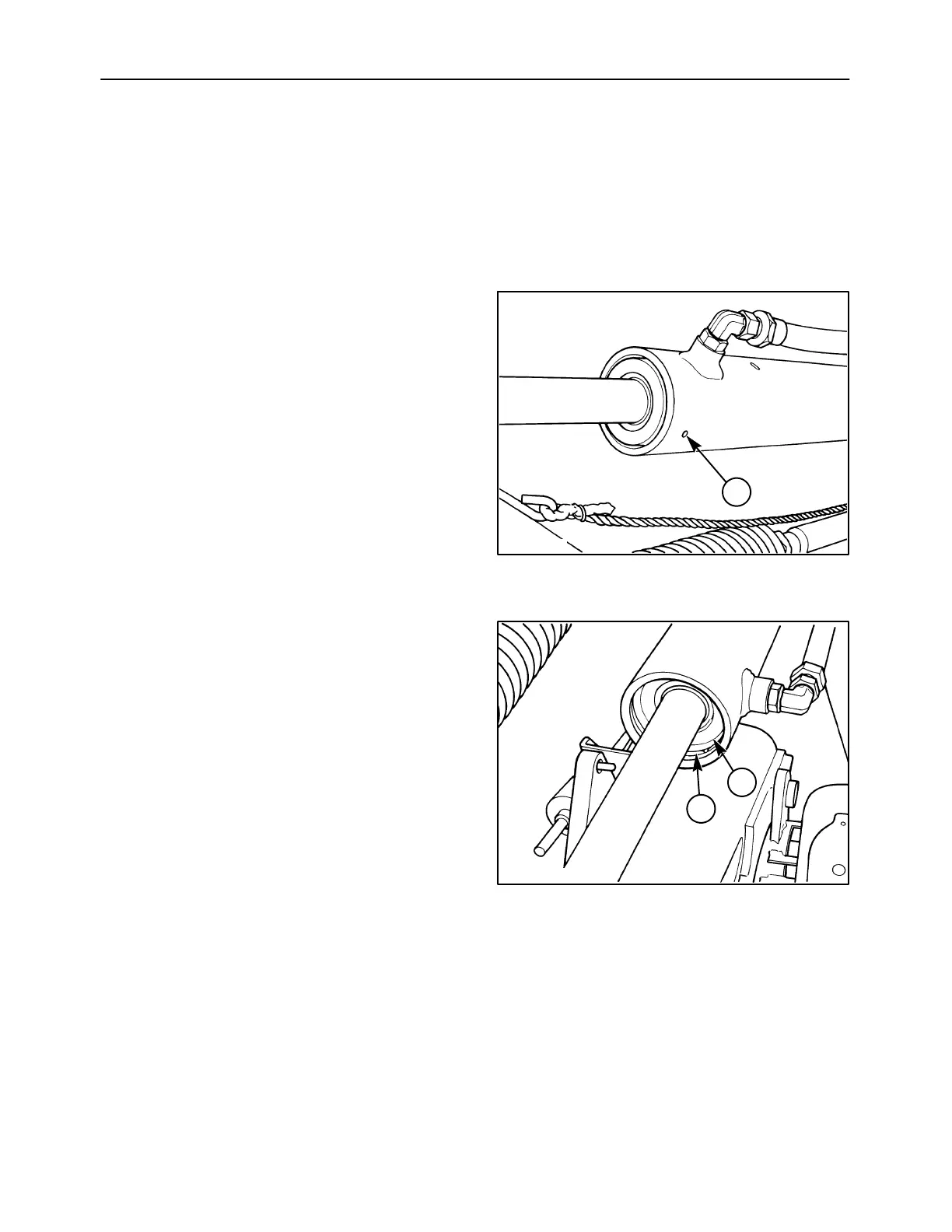

1. Fully extend the cylinder so that the cutter bar is
resting on the ground, and to remove as much
oil from the cylinder as possible. Remove
setscrew, 1.
2. Tap the cylinder head, 1, into the cylinder far
enough to remove retaining ring, 2.
600-6-1
1
1
600-6-2
1
2
2
