SECTION 58 - DRIVELINES - CHAPTER 1
58-4

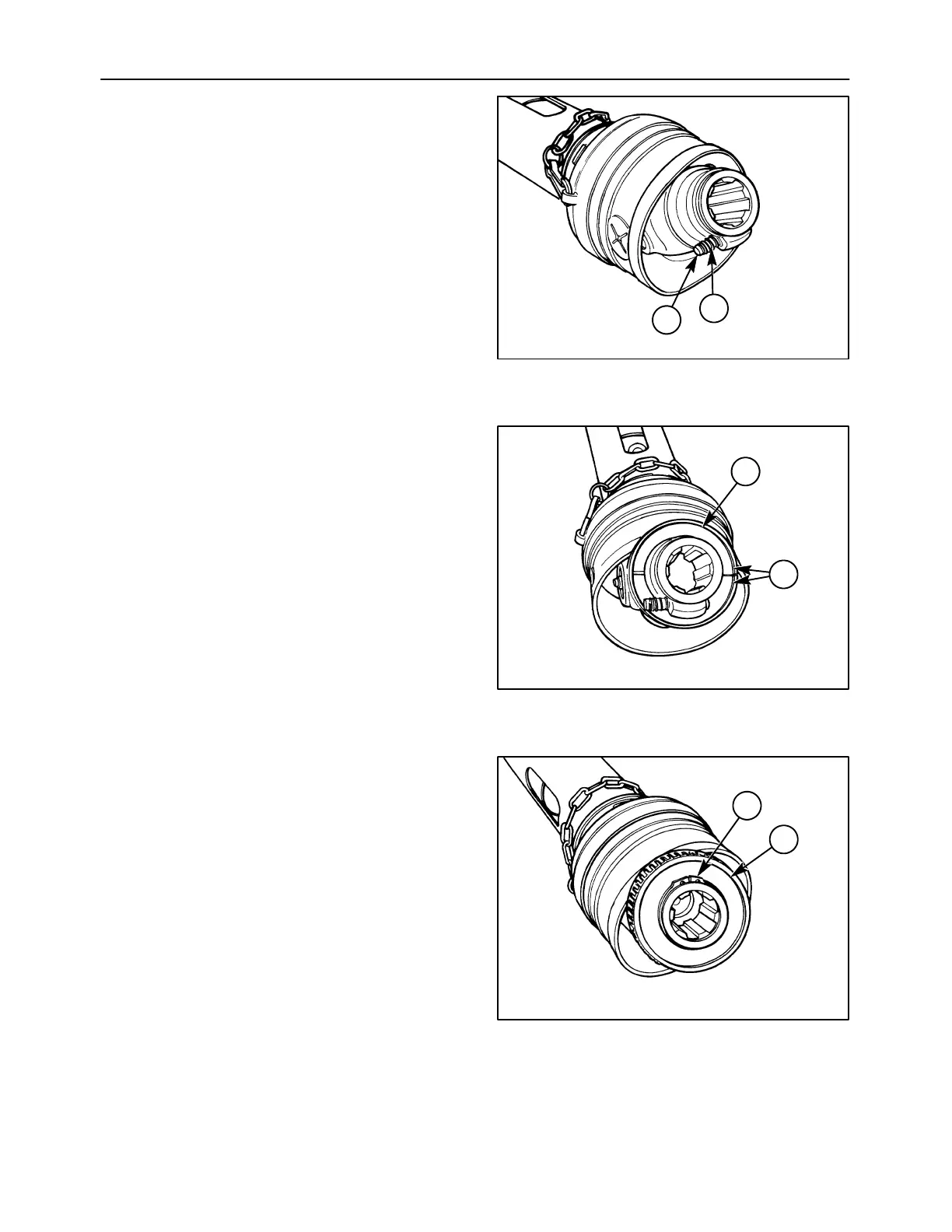

Assembly
1. Slide the retaining pin, 1, into the bore in the yoke,
and work the spring, 2, on over the end of the pin.
NOTICE: The spring has a large and small end.
Install the large end over the pin first, and work the
small end over the end of the pin.
2. Install the inner cover, 1, by spreading the ends, 2,
apart until it can be positioned over the groove in
the yoke.
3. Squeeze the inner cover onto the shaft, and slide
the collar, 2, onto the yoke, so that the ramp inside
the collar lines up with the retaining pin, and the
back of the collar slides over the inner cover.
Install the snap ring, 1, to retain the assembly.
600-3-11
1
2
6
600-3-10
1
2
7
600-3-9
1
2
8
