Assembly

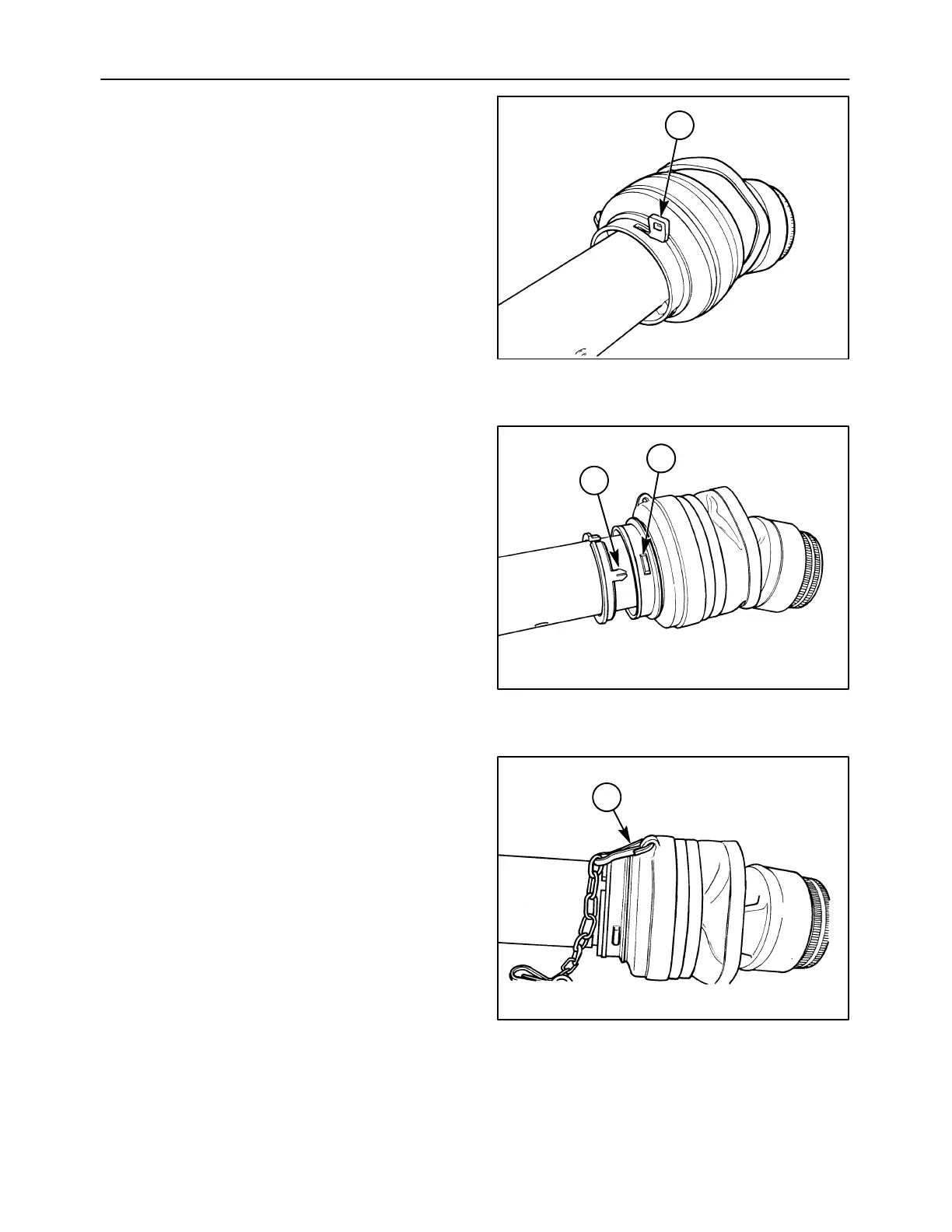

1. Slide the shield tube, 1, and bell, 2, onto the shaft.
Note that the tube has notches which fit over ribs
on the bell to properly align the parts.
2. Slide the shield bearings, 1, through the notches
and into the groove on the yoke, 3, Figure 17.
Securely seat the clip end into the notches on the
shields.
3. Align the shield clip, 1, with the bearing clips, 2,
and press it into place to secure the bearings.
4. Reinstall the anti-rotation chains if previously
removed by latching the hook, 1, onto the loop on
the shield bell.
600-3-18
1
18
600-3-17
1
2
19
600-3-20
1
20
