Installation

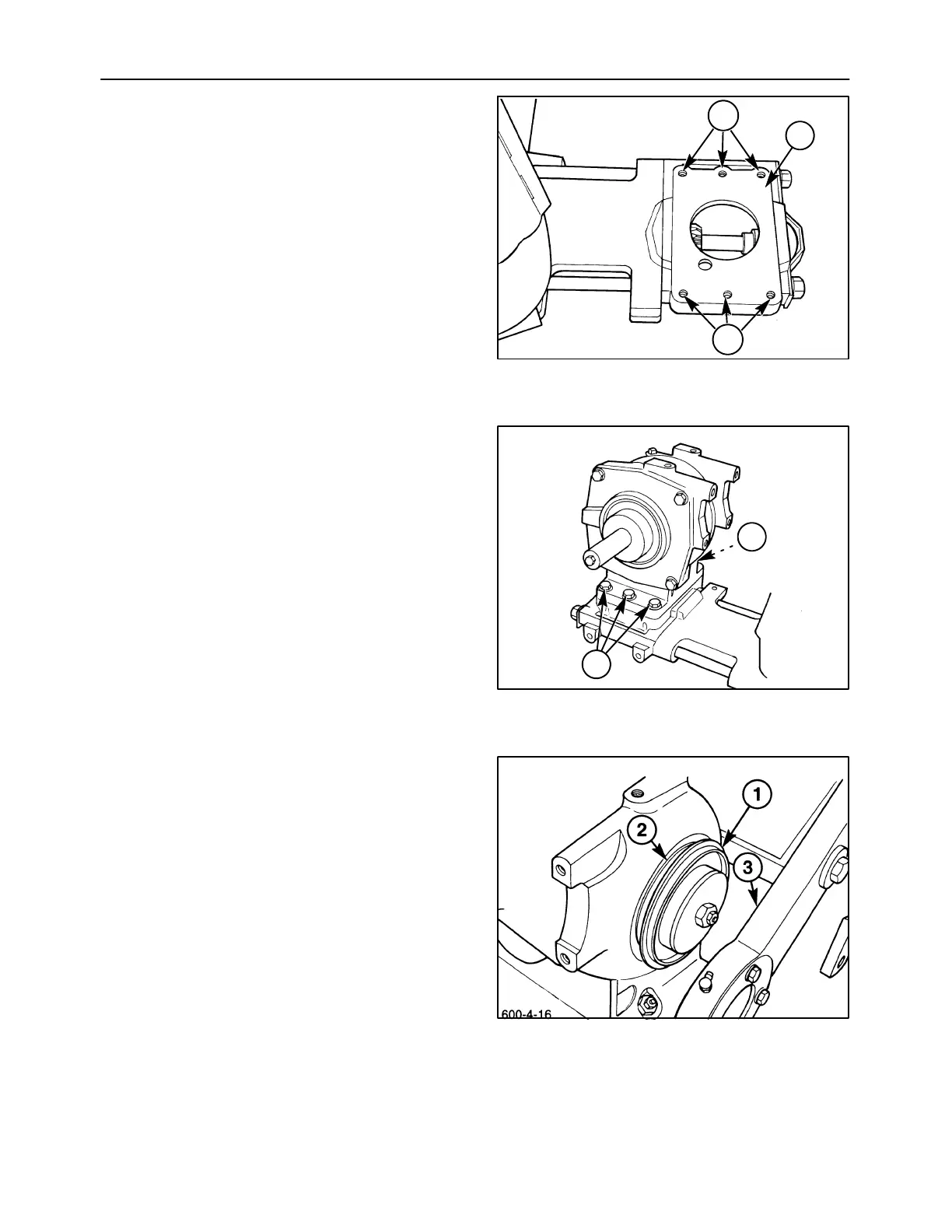

1. Thoroughly clean all sealant residue off of the
mounting surface, 1, on the drive module, and
apply a thin coat of sealant to the entire surface.
NOTICE: If the mounting holes, 2, for the gearbox
are elongated, the drive module should be replaced.
2. Carefully set the bevel gearbox down onto the
drive module, ensuring that the pilot shoulder fits
into the bore on the drive module, and the gears
mesh together. Align the bolt holes, and install the
six 1/2 inch Grade 8 cap screws, 1. Torque the
rear bolts to 159 N⋅m (117 lb ft); do not completely
tighten the front bolts at this time, as they will be
removed later for skid shoe installation.
3. Apply grease to the black plastic “T-seal” washer,
1, and slide it onto the front pivot hub on the
gearbox, so that it engages in the groove, 2, on
the face of the gearbox. Slide the cutter bar
assembly together with the lift arm so that the
front pivot arm, 3, slides over the pivot hub on the
gearbox, and the groove in the pivot arm fits over
the “T-seal” washer.
