SECTION 58 - DRIVELINES - CHAPTER 2
58-16

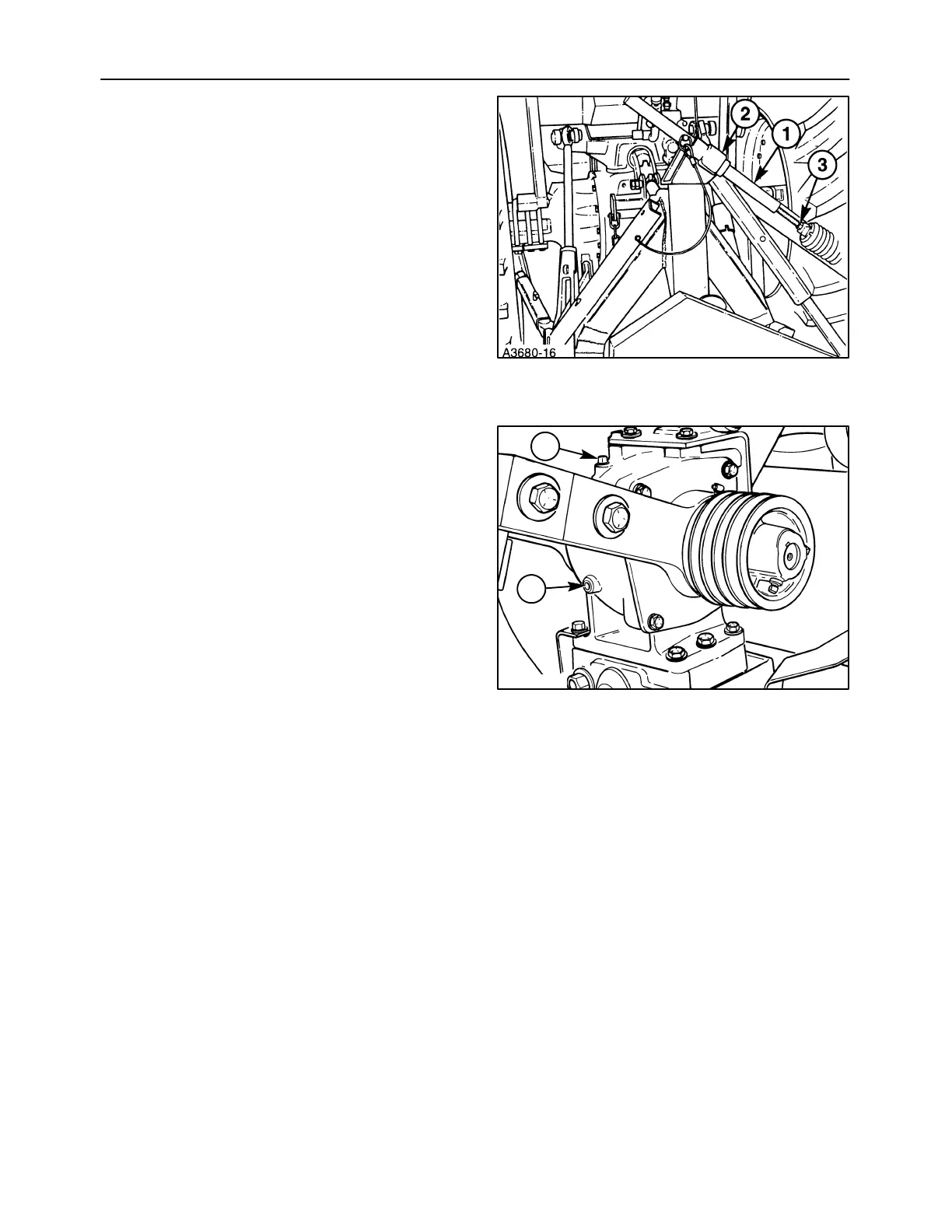

14. Slide the upper float rod, 1, through the upper
mount, 2, ensuring that the long leg of the upper
mount is to the left.
NOTICE: Ensure that the long leg of the upper mount
is positioned to the left to prevent possible failure of
the flotation system.
Thread the rod into the flotation spring to its
previous position, and retighten the jam nut, 3.
Refer to the “Adjustments” section of this manual
for additional information on flotation spring
adjustment.
15. With the cutter bar positioned on a level surface, fill
the bevel gearbox with Case Akcela 135 H EP
80W90 gear oil by removing plug, 2, and filling until
the oil level is at the bottom of the check plug, 1.
NOTICE: Shielding and belt not shown for clarity.
35
A3679-22
1
2
36
