SECTION 58 - DRIVELINES - CHAPTER 3
58-4
DISCS
Each time knives are replaced or turned, check the
discs for damage and wear. If a disc is bent or
cracked, replace it. When the leading edge of the disc
wears thin, it can be used on an opposite rotating
module to utilize the second face.
NOTICE: Do not make weld repairs to the discs, as
this will affect disc strength and balance.

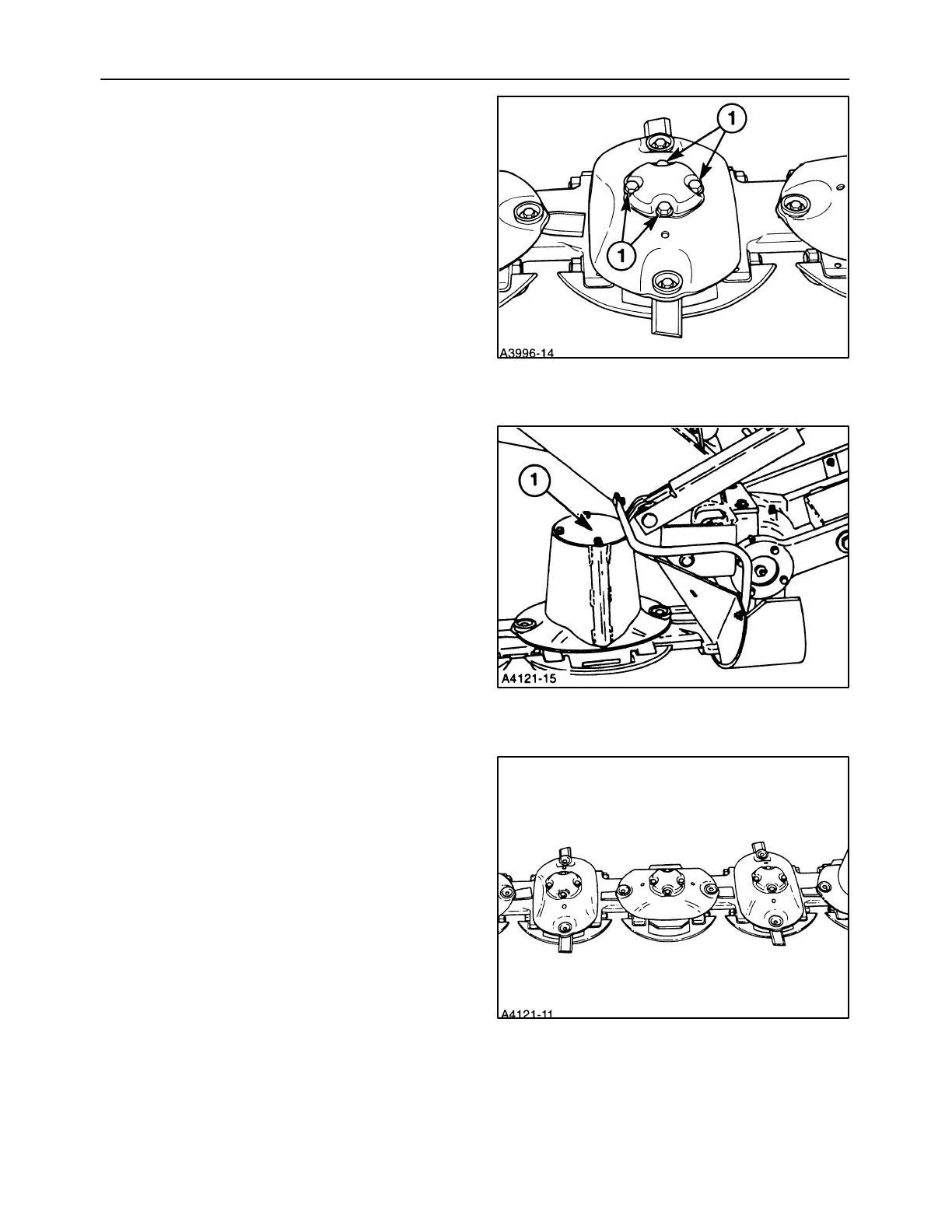

Remove discs by removing four bolts at 1.
Discs with drums can be removed by first removing
the drum covers, 1; the four disc/drum retaining bolts
can then be removed.
Reinstall discs at right angles to each other as
shown. Be sure the correct hardware is installed as
follows:
Discs w/caps: 1/2 inch x 1 inch cap screws
cupped lock wash
Discs w/drums: 1/2 inch x 1-1/4 inch cap screws
thick hardened washers
NOTICE: Use of incorrect disc retaining hardware
may cause cutter bar lock-up and potential damage,
or may prevent proper retention of discs.
Torque retaining bolts to 113 N⋅m (83 lb ft).
NOTICE: Do not overtighten as bolts may yield.
5
6
7
