SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--3
Full Powershift Transmission (North America only)
11
Your tractor is equipped with a number of electronic controls located on the arm rest unit. A full explanation of
individual switch operation can be found in the relevant sections of this manual.

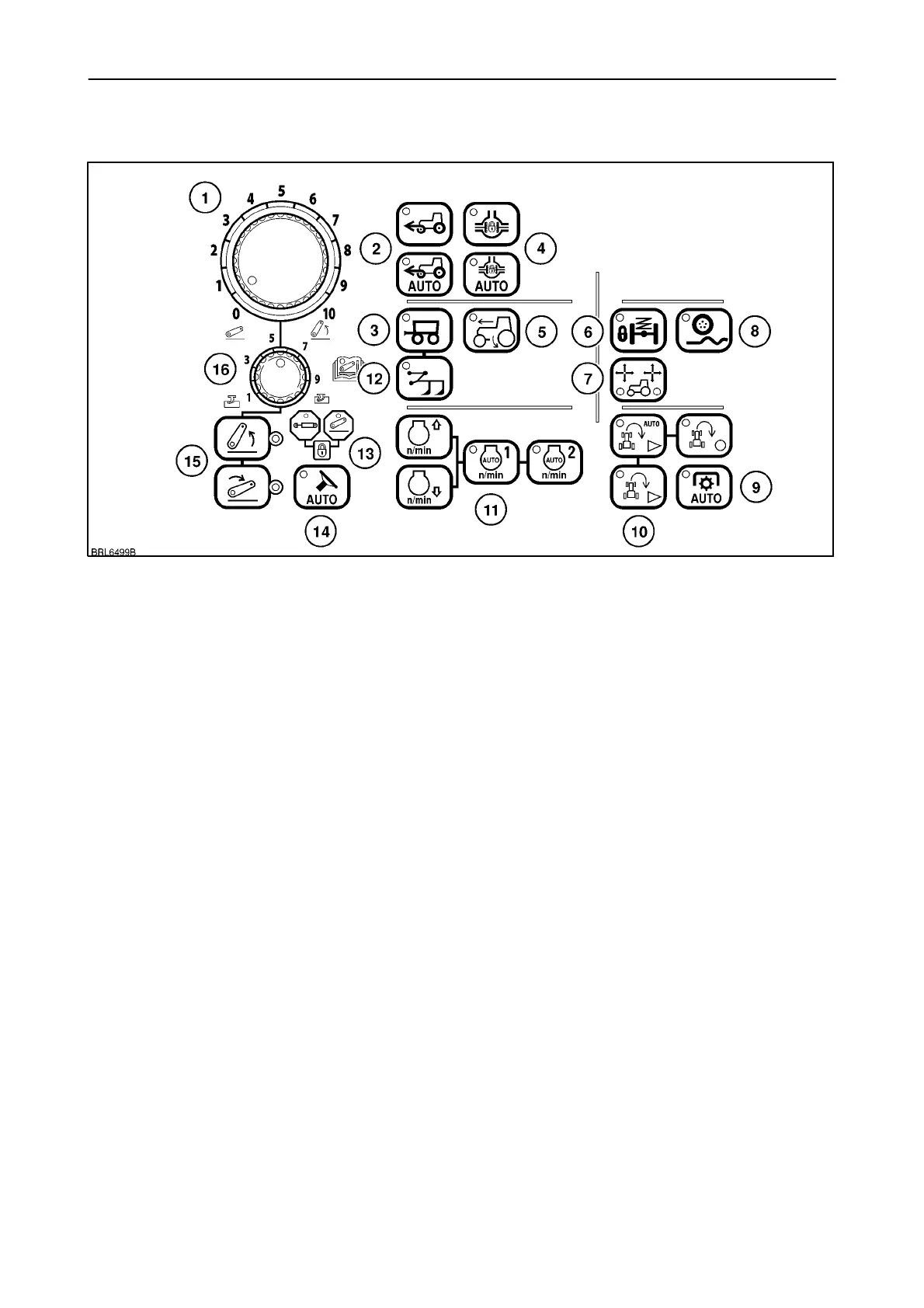

Right--Hand Control Console
1. 3--point hitch position control
2. 4WD Auto or Manual engagement
3. Transmission road auto function
4. Auto/manual rear axle differential lock
engagement
5. Slip Control
6. Front axle suspension lock
7. Front/rear joystick operation select
8. Ride Control
9. Rear Auto PTO control
10. Auto/Manual HMC record/playback operation
11. Constant Engine Speed settings
12. Transmission field auto function
13. Electronic remote valves and 3--point hitch lock
warning lights
14. Autoguide function
15. 3--point hitch raise/lower buttons and operating
lights
16. 3--point hitch draft loading control
