SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--2
INTEGRATED CONTROL PANEL
Full Powershift Transmission
10
Your tractor is equipped with a number of electronic controls located on the arm rest unit. A full explanation of
individual switch operation can be found in the relevant sections of this manual.

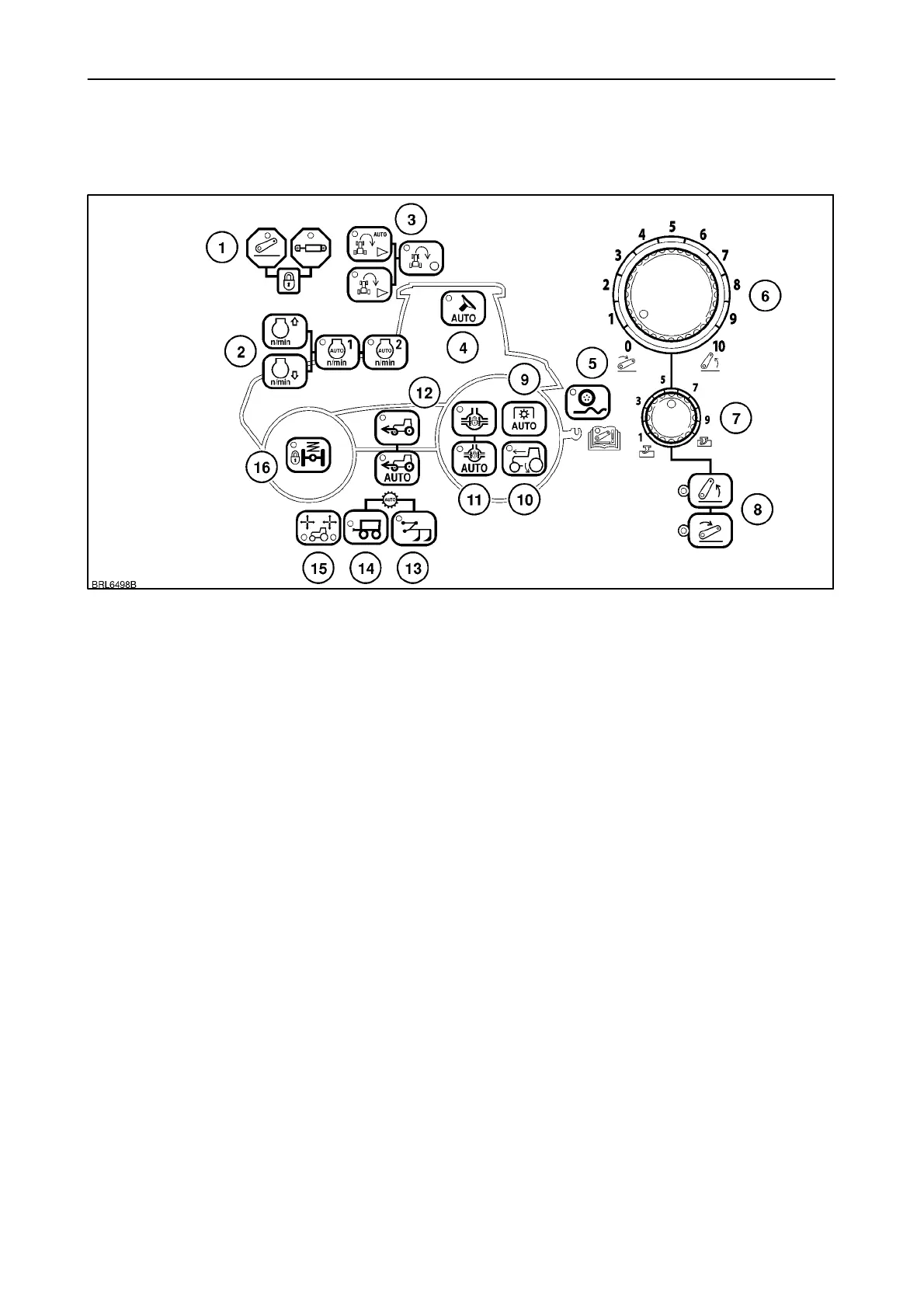

Right--Hand Control Console
1. Electronic remote valves and 3--point hitch lock
warning lights
2. Constant Engine Speed settings
3. Auto/Manual HMC record/playback operation
4. Autoguide function
5. Ride Control
6. 3--point hitch position control
7. 3--point hitch draft loading control
8. 3--point hitch raise/lower buttons and operating
lights
9. Rear Auto PTO control
10. Slip Control
11. Auto/manual rear axle differential lock
engagement
12. 4WD Auto or Manual engagement
13. Transmission field auto function
14. Transmission road auto function
15. Front/rear joystick operation select
16. Front axle suspension lock
