Case 1188 - Electrical Schematic - Plate 3; Instrument Panel and Cab Components; Electrical Cabinet, Floor, Upperstructure, Engine Components

4001-18
Cre 7-26540GB Issued 11-99
CM99K025
P10
B22
B1
B4
P11 - X10
F3 - F19SC1
V21 - Sh5
B50
S21 - H32
H15 -V30
B23
B52 - B53
B21
B2

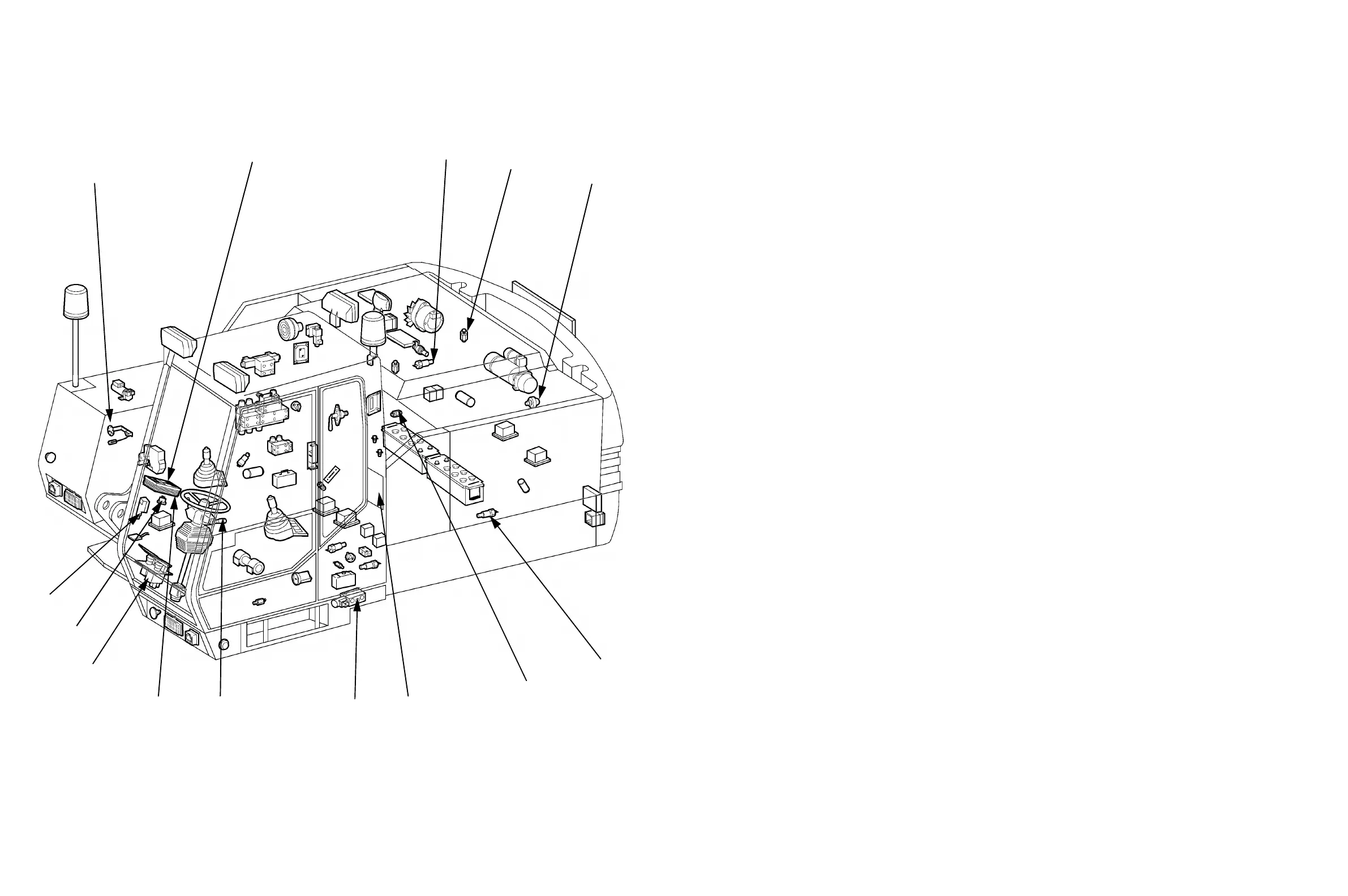

ELECTRICAL SCHEMATIC (PLATE 3)
INSTRUMENT PANEL
P10 Instrument panel
H32 Overload indicator switch lighting (optional)
S21 Overload indicator switch (optional)
ELECTRICAL CABINET
F3 Fuse, 7.5 A, instrument panel, hourmeter
F19 Fuse, 5 A, LH front/rear sidelight + night lighting
Sh5 Shunt Night lighting (switch) + P excavator regi-
stration plate
V21 Overload indicator lamp diode on instrument panel
V30 Buzzer diode
CAB
SC1 Direction indicator combination switch (commodo),
main beam and dip switch, side lights and
headlight flasher switch
FLOOR
B50 Parking brake pressure switch
B52 Pressure switch for minimum braking pressure
B53 Steering pressure switch
E15 Rear LH side light
UPPERSTRUCTURE
B1 Air filter restriction pressure switch
B2 Hydraulic oil filter restriction pressure switch
B21 Hydraulic oil temperature sender
B23 Overload indicator (optional)
P11 Fuel level gauge
X10 Fuel level indicator connector
ENGINE
B4 Engine oil pressure switch
B22 Engine coolant temperature sender
