Case 1188 - Shock Absorbers

1002-27
Cre 7-79021GB Issued 11-99
1188LC model 1188CK model
Sprocket
Type........................................................................................ D60..................................................................... D60
Weight ............................................................................. 61.60 kg.............................................................. 61.60 kg
Number of teeth (per sprocket)..................................................21........................................................................21
Retaining screw torque setting ......................................... 500 Nm............................................................... 500 Nm

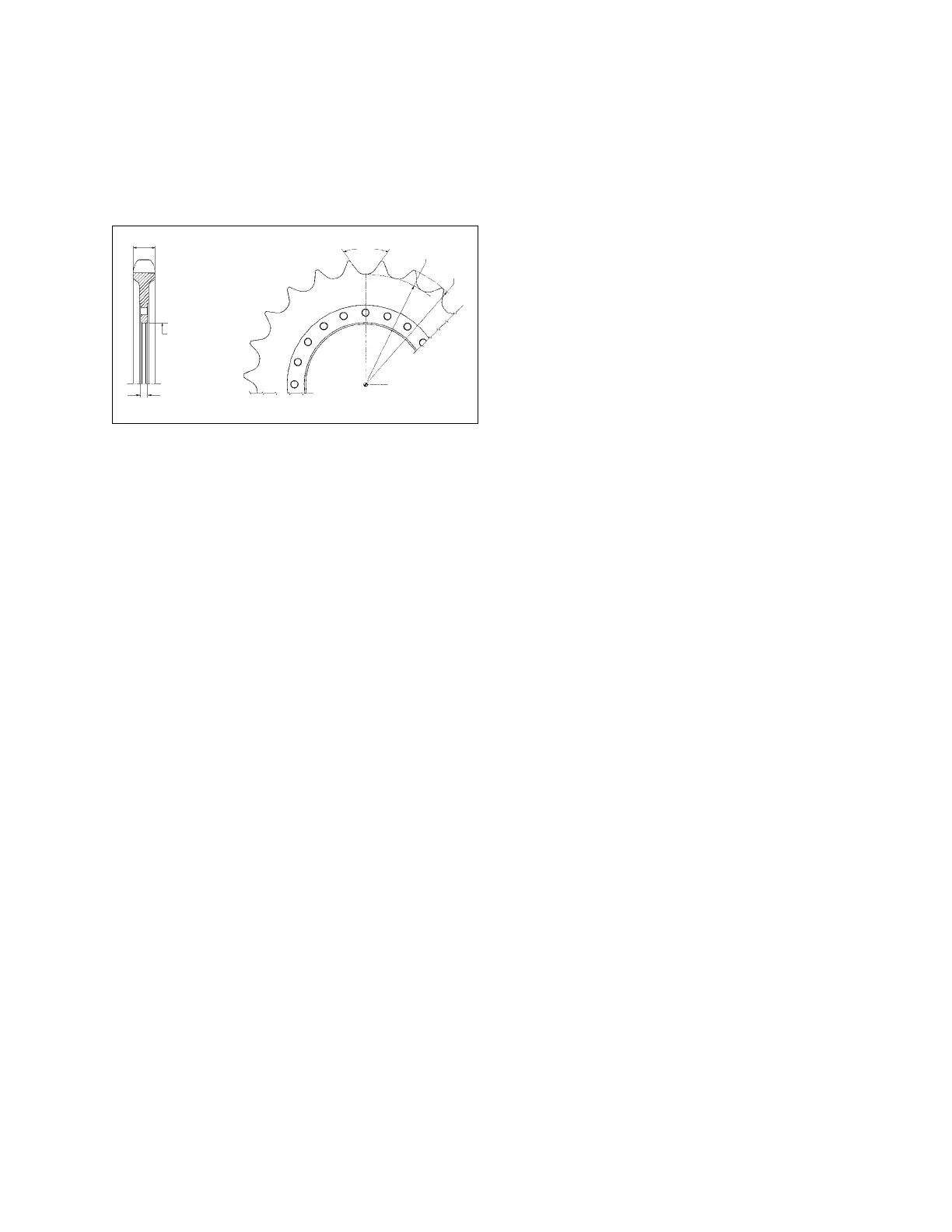

PDG0385
Original dimension
A............................................................................664.6 mm............................................................664.6 mm
B............................................................................584.6 mm............................................................584.6 mm
C ......................................................................................60°.......................................................................60°
D ................................................................................ 25 mm.................................................................25 mm
E...............................................................................350 mm...............................................................350 mm
F.................................................................................72 mm.................................................................72 mm
Shock absorbers
Weight (per shock absorbers) .............................................. 79 kg................................................................... 79 kg
Grease adaptor torque setting.......................................... 100 Nm............................................................... 100 Nm
Number (per track) ...................................................................... 1..........................................................................1
Turntable
Weight ..............................................................................................................................................................270 kg
Number of teeth.......................................................................................................................................................72
Module..................................................................................................................................................................... 11
Retaining screw torque setting on
Outer ring on upperstructure ..................................................................................................................... 500 Nm
Inner ring on undercarriage........................................................................................................................ 500 Nm
Batteries
Weight of one battery
With electrolyte...............................................................................................................................................37 kg
Without electrolyte..........................................................................................................................................29 kg
Number of batteries...................................................................................................................................................2
Voltage of each battery................................................................................................................................... 12 volts
Starting capacity at -17°C............................................................................................................................800 amps
Charge for capacity test (load) ....................................................................................................................400 amps
D
E
C
B
A
F
