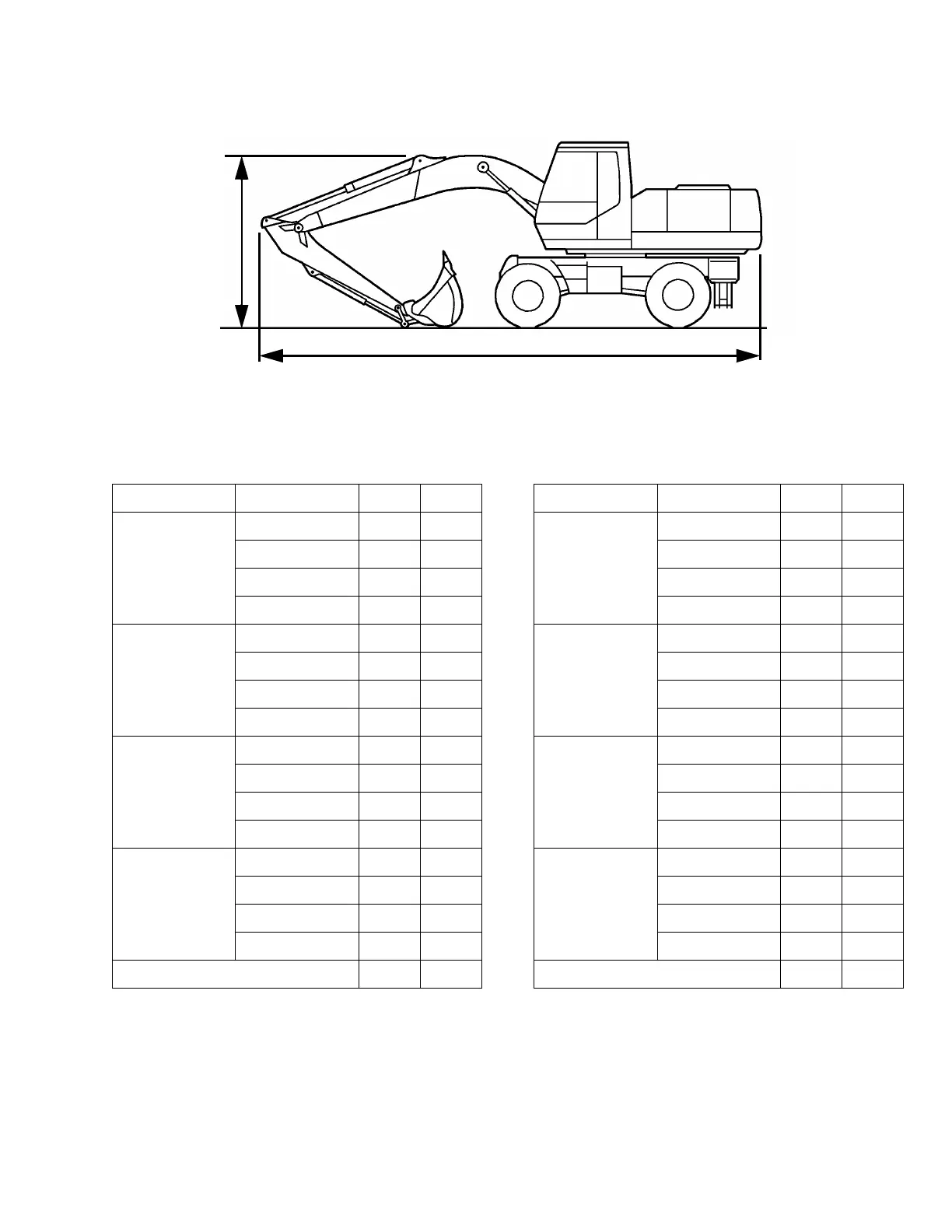

TRANSPORTATION OVERALL DIMENSIONS
PDH0126
NOTE: For top of cab to ground, see "Overall dimensions".
P2A Version
NOTE: These values are given in metres.
P2AL and P2A+2A Versions
B
A
Boom Dipper A B
4.80 m
one-piece
1.70 m 3.00 9.15
2.20 m 3.15 8.90
2.80 m 3.80 8.90
3.40 m 4.30 8.65
5.40 m
one-piece
1.70 m 3.10 9.75
2.20 m 3.20 9.55
2.80 m 3.35 9.55
3.40 m 3.80 9.45
Articulated
1.70 m 3.00 9.85
2.20 m 3.10 9.50
2.80 m 3.35 9.35
3.40 m 3.80 9.30
Adjustable
1.70 m 3.35 9.55
2.20 m 3.30 9.00
2.80 m 3.60 8.90
3.40 m 4.75 8.35
Handling 3.00 9.30
Boom Dipper A B
4.80 m
one-piece
1.70 m 3.45 9.20
2.20 m 3.70 8.95
2.80 m 4.15 8.75
3.40 m 4.80 8.45
5.40 m
one-piece
1.70 m 3.10 9.75
2.20 m 3.30 9.55
2.80 m 3.80 9.55
3.40 m 4.30 9.35
Articulated
1.70 m 3.00 9.85
2.20 m 3.15 9.50
2.80 m 3.50 9.30
3.40 m 4.70 9.00
Adjustable
1.70 m 3.35 9.55
2.20 m 3.55 9.10
2.80 m 3.90 8.75
3.40 m 5.20 8.15
Handling 3.00 9.30
