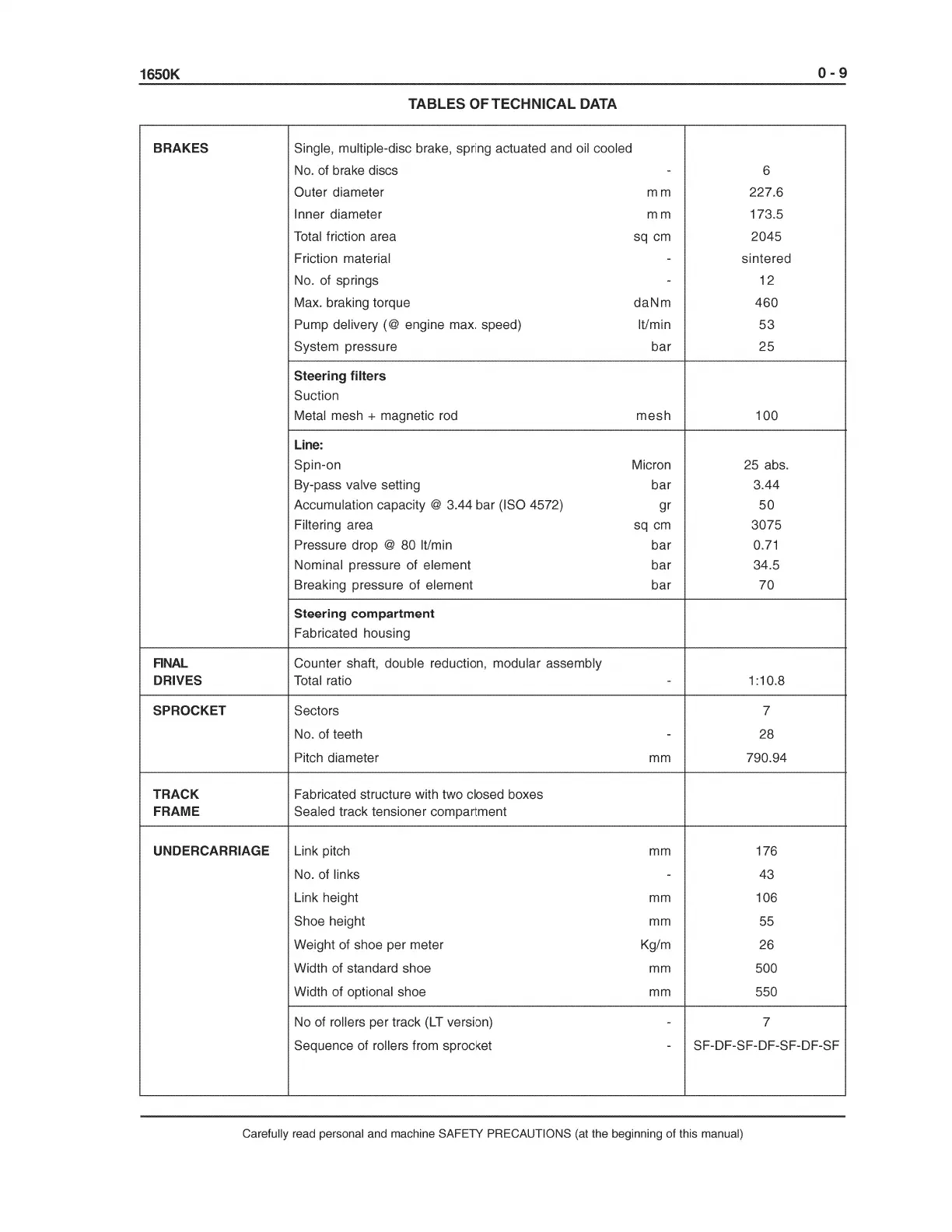

TABLES OF TECHNICAL DATA
BRAKES Single, multiple-disc brake, spring actuated and oil cooled
No. of brake discs
-
6
Outer diameter
mm 227.6
Inner diameter
mm 173.5
Total friction area sq
cm 2045
Friction material
-
sintered
No. of springs
-
12
Max. braking torque daNm 460
Pump delivery(@ engine max. speed)
It/min
53
System pressure bar 25
Steering filters
Suction
Metal mesh
+ magnetic rod mesh
100
Line:
Spin-on Micron 25 abs.
By-pass valve setting bar 3.44
Accumulation capacity @ 3.44 bar (ISO 4572) gr
50
Filtering area sq
cm 3075
Pressure drop @ 80 It/min
bar
0.71
Nominal pressure of element bar 34.5
Breaking pressure of element bar 70
Steering compartment
Fabricated housing
ANAL Counter shaft, double reduction, modular assembly
DRIVES Total ratio
-
1:10.8
SPROCKET Sectors 7
No. of teeth
-
28
Pitch diameter
mm 790.94
TRACK Fabricated structure with two closed boxes
FRAME Sealed track tensioner compartment
UNDERCARRIAGE Link pitch mm 176
No. of links
-
43
Link height
mm 106
Shoe height
mm
55
Weight of shoe per meter Kg/m 26
Width of standard shoe
mm
500
Width of optional shoe
mm
550
No of rollers per track (LT version)
-
7
Sequence of rollers from sprocket
-
SF-DF-SF-DF-SF-DF-SF
