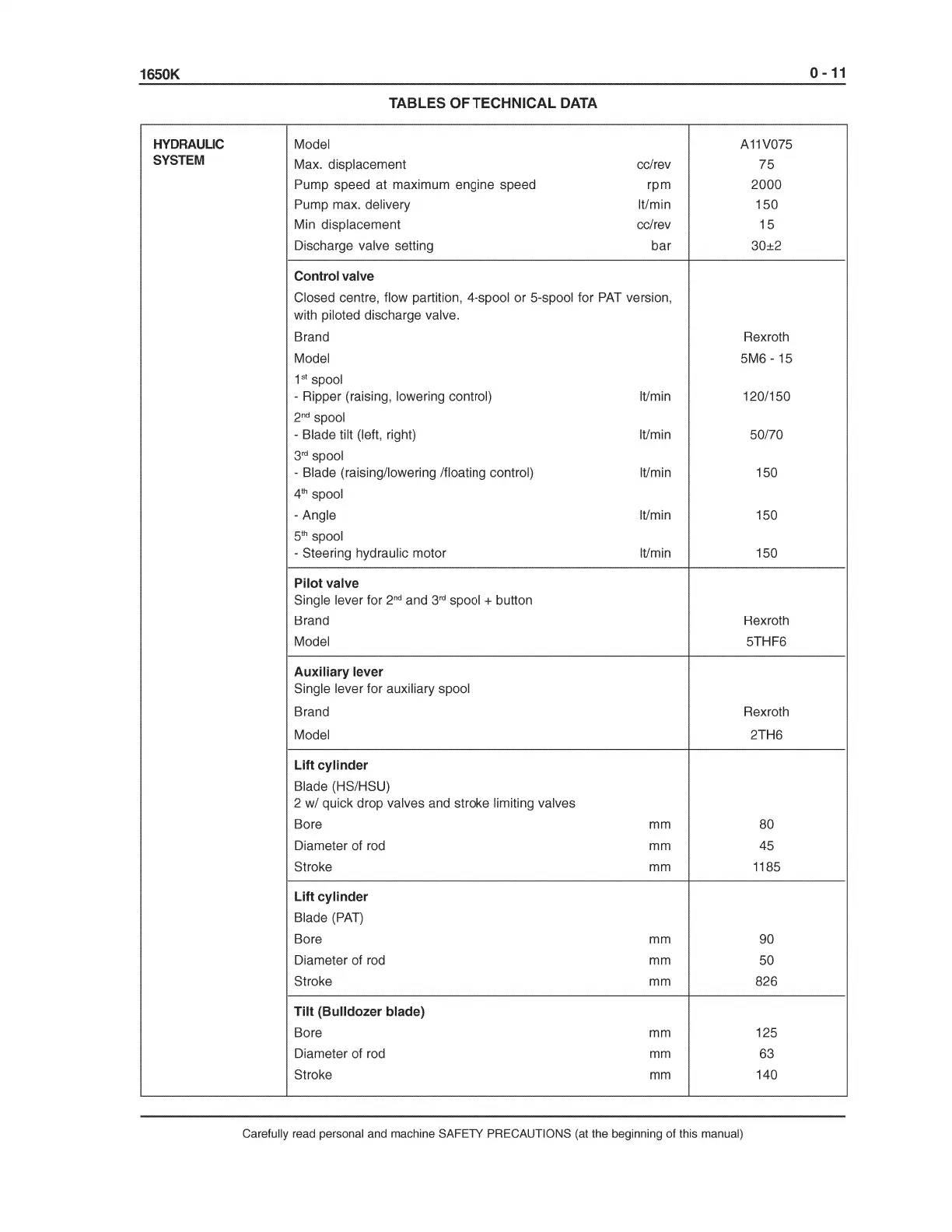

1650K
0-11
TABLES
OF
TECHNICAL DATA
HYDRAULIC Model A11V075
SYSTEM
Max. displacement cc/rev
75
Pump speed at maximum engine speed rpm 2000
Pump max. delivery It/min
150
Min displacement cc/rev
15
Discharge valve setting bar 30±2
Control valve
Closed centre, flow partition, 4-spool or 5-spool for
PAT
version,
with piloted discharge valve.
Brand Rexroth
Model 5M6 - 15
1
st
spool
- Ripper (raising, lowering control) It/min 120/150
2
nd
spool
- Blade tilt (left, right) It/min 50/70
3
rd
spool
- Blade (raising/lowering /floating control) It/min 150
4
th
spool
- Angle
It/min 150
5
th
spool
- Steering hydraulic motor It/min 150
Pilot valve
Single lever for 2
nd
and 3
rd
spool + button
Brand Rexroth
Model 5THF6
Auxiliary lever
Single lever for auxiliary spool
Brand Rexroth
Model 2TH6
Lift
cylinder
Blade (HS/HSU)
2
w/
quick drop valves and stroke limiting valves
Bore mm
80
Diameter of
rod
mm 45
Stroke mm 1185
Lift
cylinder
Blade
(PAT)
Bore mm
90
Diameter of
rod
mm 50
Stroke mm 826
Tilt (Bulldozer blade)
Bore mm 125
Diameter of rod
mm
63
Stroke
mm
140
Carefully read personal and machine SAFETY PRECAUTIONS (at the beginning of this manual)
