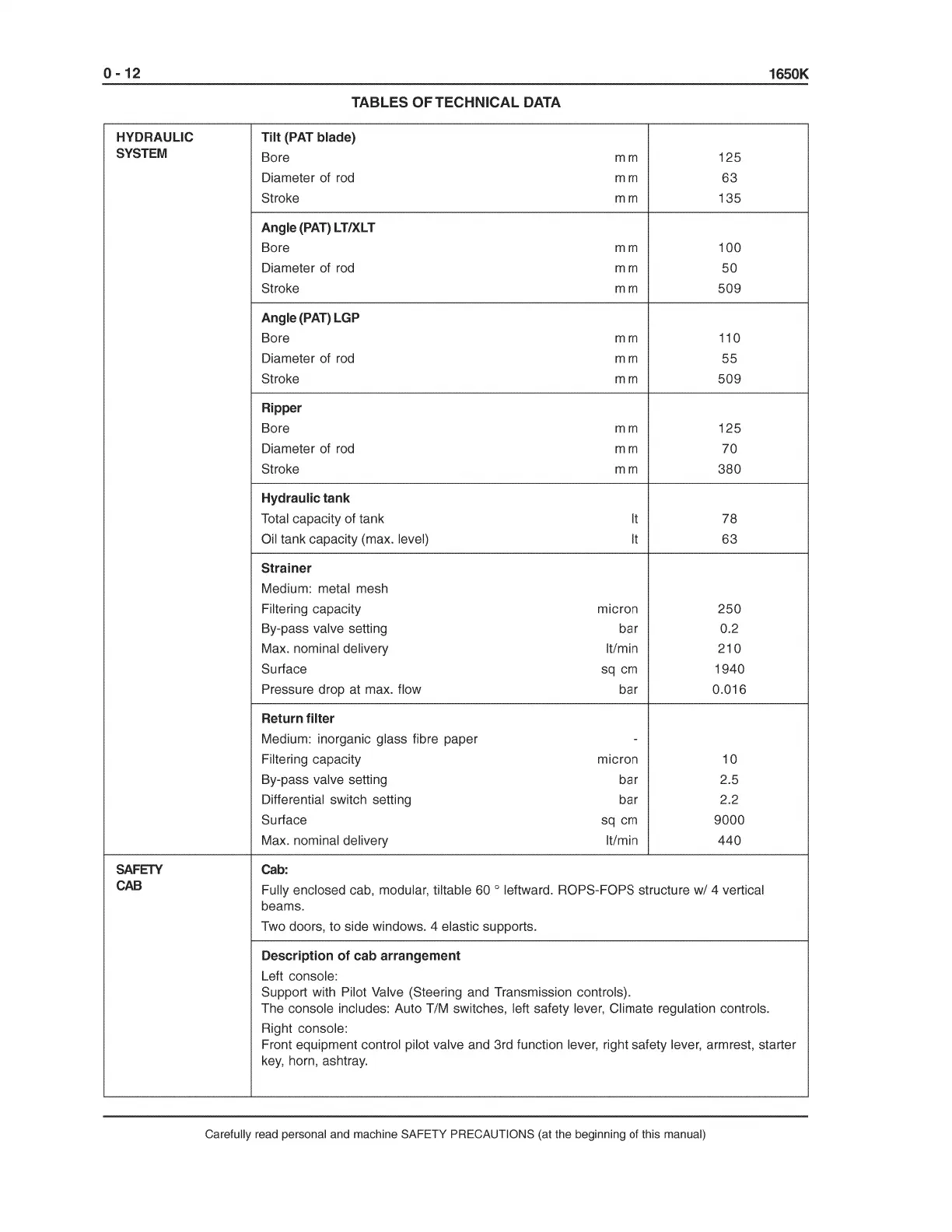

0-12
1650K
TABLES
OF
TECHNICAL DATA
HYDRAULIC Tilt (PAT blade)
SYSTEM
Bore
mm
125
Diameter of
rod
mm
63
Stroke
mm
135
Angle (PAT)
LT/XU
Bore
mm
100
Diameter of
rod
mm
50
Stroke
mm
509
Angle (PAT) LGP
Bore
mm
110
Diameter of
rod
mm
55
Stroke
mm
509
Ripper
Bore
mm
125
Diameter of
rod
mm
70
Stroke
mm
380
Hydraulic tank
Total capacity of tank
It
78
Oil tank capacity (max. level)
It
63
Strainer
Medium: metal mesh
Filtering capacity micron 250
By-pass valve setting bar 0.2
Max. nominal delivery It/min 210
Surface sq
cm
1940
Pressure drop at max. flow bar 0.016
Return filter
Medium: inorganic glass fibre paper
-
Filtering capacity micron 10
By-pass valve setting bar 2.5
Differential switch setting bar 2.2
Surface sq
cm
9000
Max. nominal delivery It/min 440
SAFETY
Cab:
CAB
Fully enclosed cab, modular, tiltable
60
° leftward. ROPS-FOPS structure w/ 4 vertical
beams.
Two doors, to side windows. 4 elastic supports.
Description
of
cab
•:,-""''"'
Left console:
Support with Pilot Valve (Steering and Transmission controls).
The console includes: Auto T/M switches, left safety lever, Climate regulation controls.
Right console:
Front equipment control pilot valve and 3rd function lever, right safety lever, armrest, starter
horn, ashtray.
Carefully read personal and machine SAFETY PRECAUTIONS (at the beginning of this manual)
