Case 580N EP - Diagnostic service tool port

INTRODUCTION
Basicinstructions-Diagnosticservicetoolport
Thediagnostic/servicetoolportislocatedinthefuseboxatthesideconsole.ConnecttheElectronicServiceT ool
(EST)orDATARtothisporttoupdatesoftwareand/orperformserviceanddiagnostictests.

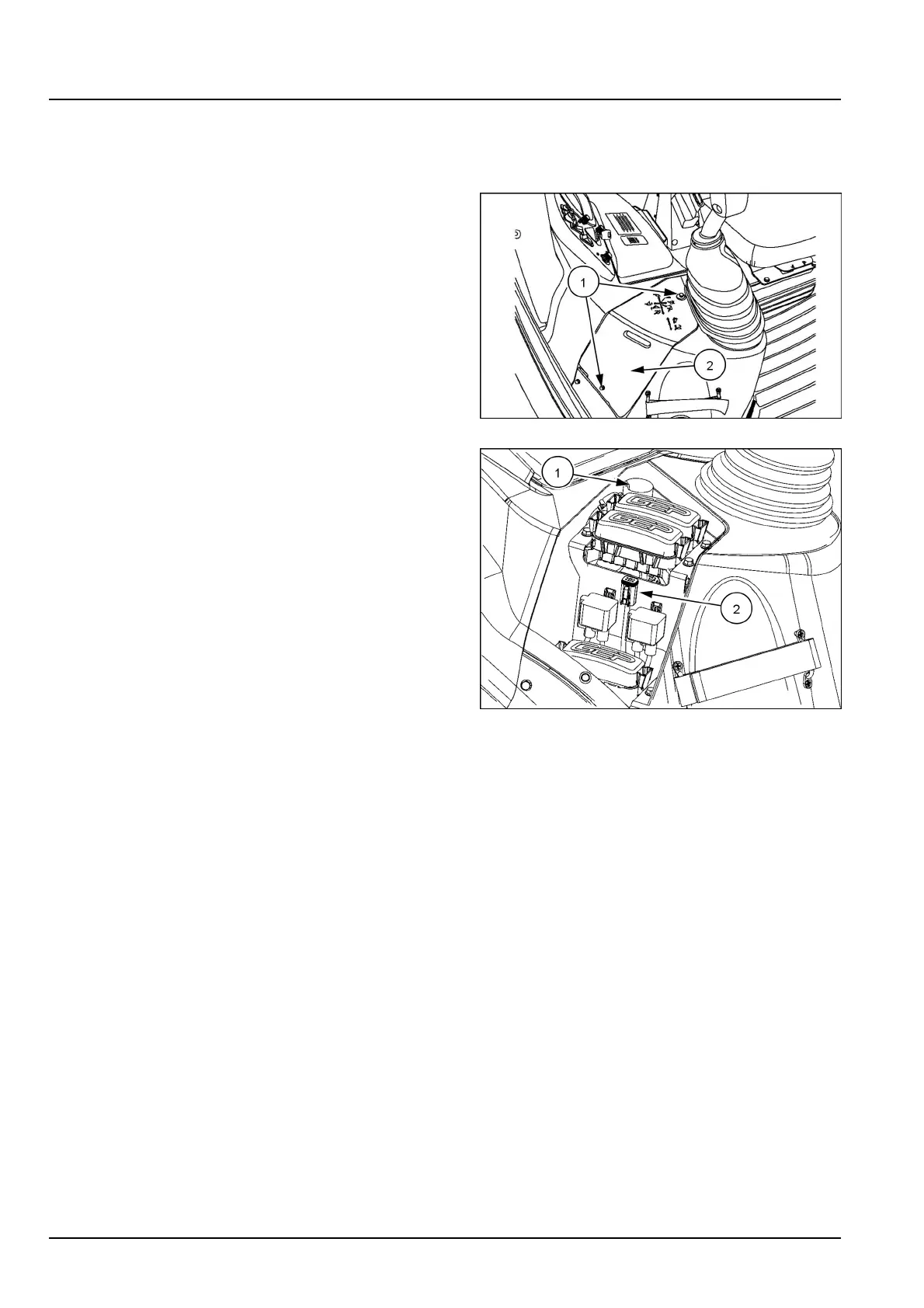

1.Turnthethumbscrews(1)toloosenthepanelcover
(2)forthefusebox.Removethepanelcover.
RCPH10TLB437AAF1
2.Plugintothenecessarycomponent:
A.Removethecapandplugintothemaindiagnostic/
servicetoolport(1).
B.PlugintotheSiteWatch™(telematics)connector
(2)ifnecessary.
RAIL16TLB0527BA2
4819454220/11/2017
