INTRODUCTION

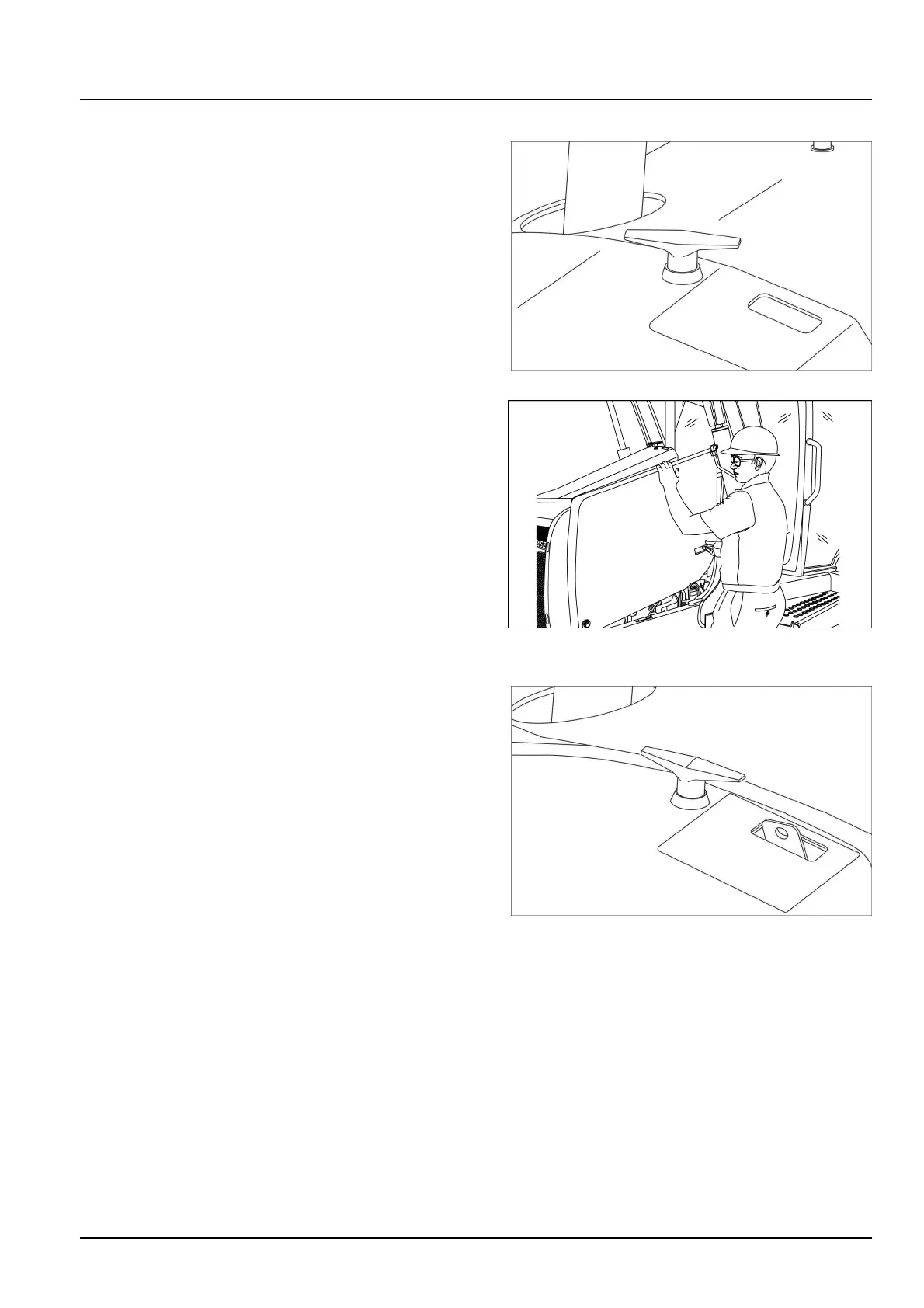

Basicinstructions-Hood
Openthehood:
1.Shutdowntheengine.
2.Turnthehandlecounter-clockwisetoreleasethehood
latch.
RCPH10TLB166AAF1
3.Liftthehoodandrotateforward.
RCPH10TLB356AAF2
NOTICE:Toavoiddamagetothehoodparts,alwaysclosethehoodbeforemovingtheloader.
Closethehood:
1.Lowerthehood.
2.Turnthehandleclockwisetolockthehoodlatch.
RCPH10TLB167AAF3
4819454220/11/2017
35
