INTRODUCTION

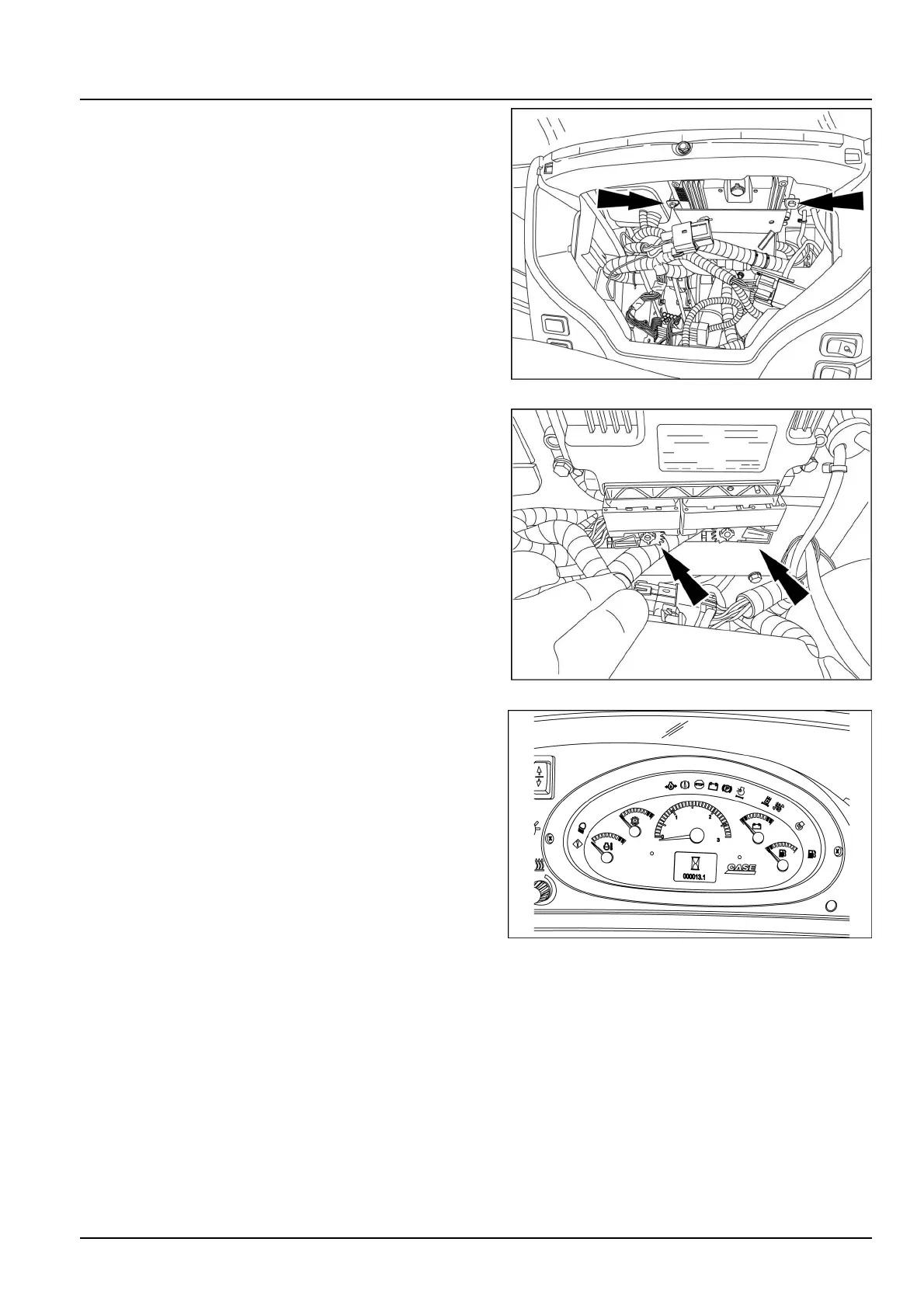

4.RemovetheEngineControlUnit(ECU)guardplate.
RCPH11TLB009BAD4
5.Disconnectbothconnectors.
RCPH11TLB054BAD5
6.Removetheinstrumentclusterpanel.
7.Disconnectallconnectorsfromthebackofthepanel.
RCPH10TLB339AAF6
8.Disconnectthecontrollerforbackhoepilotcontrols,if
equipped(oneconnector).
9.Disconnectthecontrollerfortheloader4-in-1bucket
orauxiliaryhydraulics,ifequipped(oneconnector,lo-
catedundertheloadervalveattherear,leftunderside
ofthemachine).
