82 SECTION 21 - TRANSMISSION

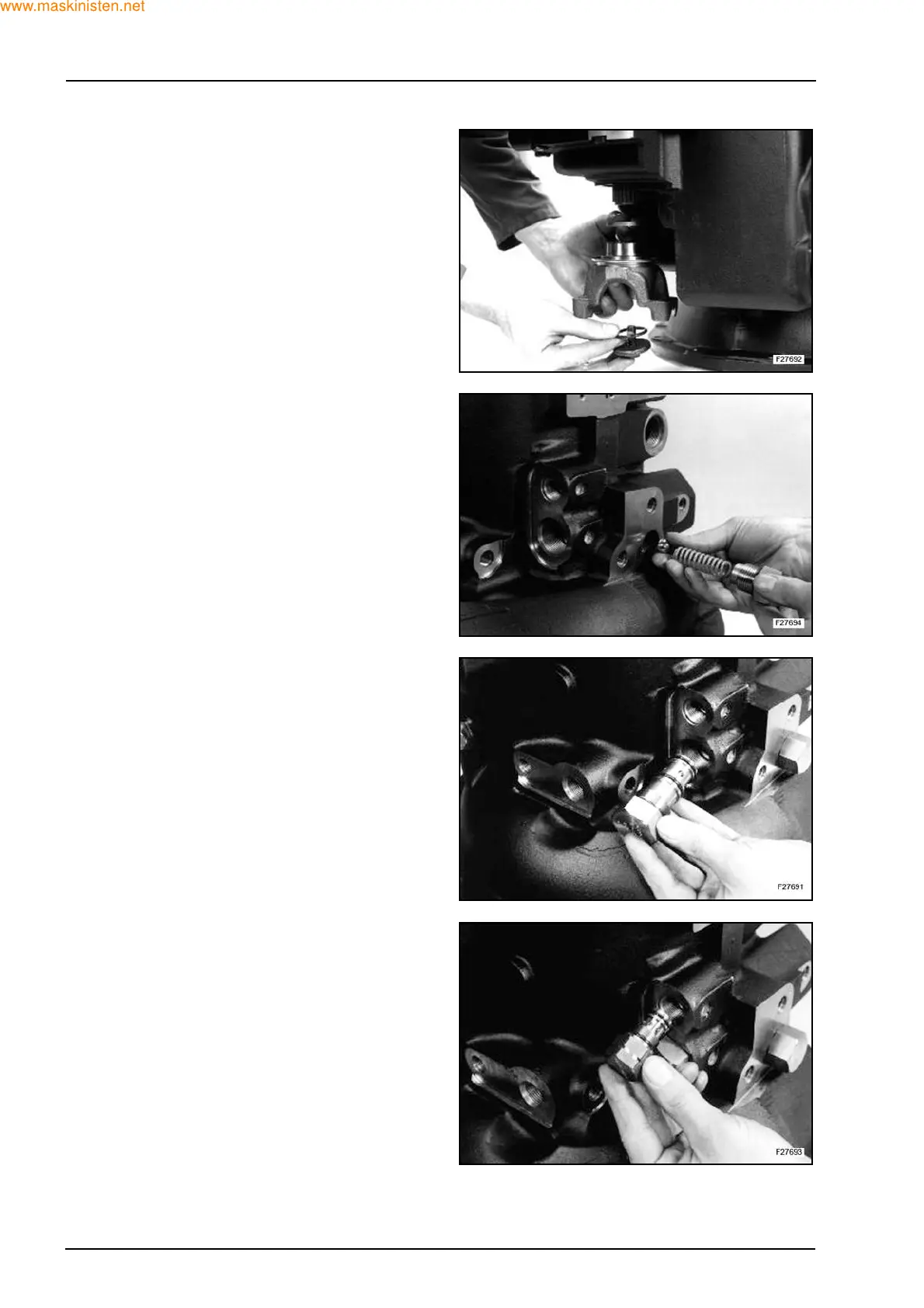

Replace the spacer, the 4WD yoke, the O-ring, the
washer and the bolt. Then tighten to a torque of 68-
88 Nm.
Refit the cold start ball, the spring and the housing.
Then tighten to a torque of 46-60 Nm.
Lubricate the seals with transmission fluid then refit
the pressure regulator valve and tighten to a torque
of 46-60 Nm.
Lubricate the seals with transmission fluid then refit
the converter regulator valve and tighten to a torque
of 23-30 Nm.
