2000-14

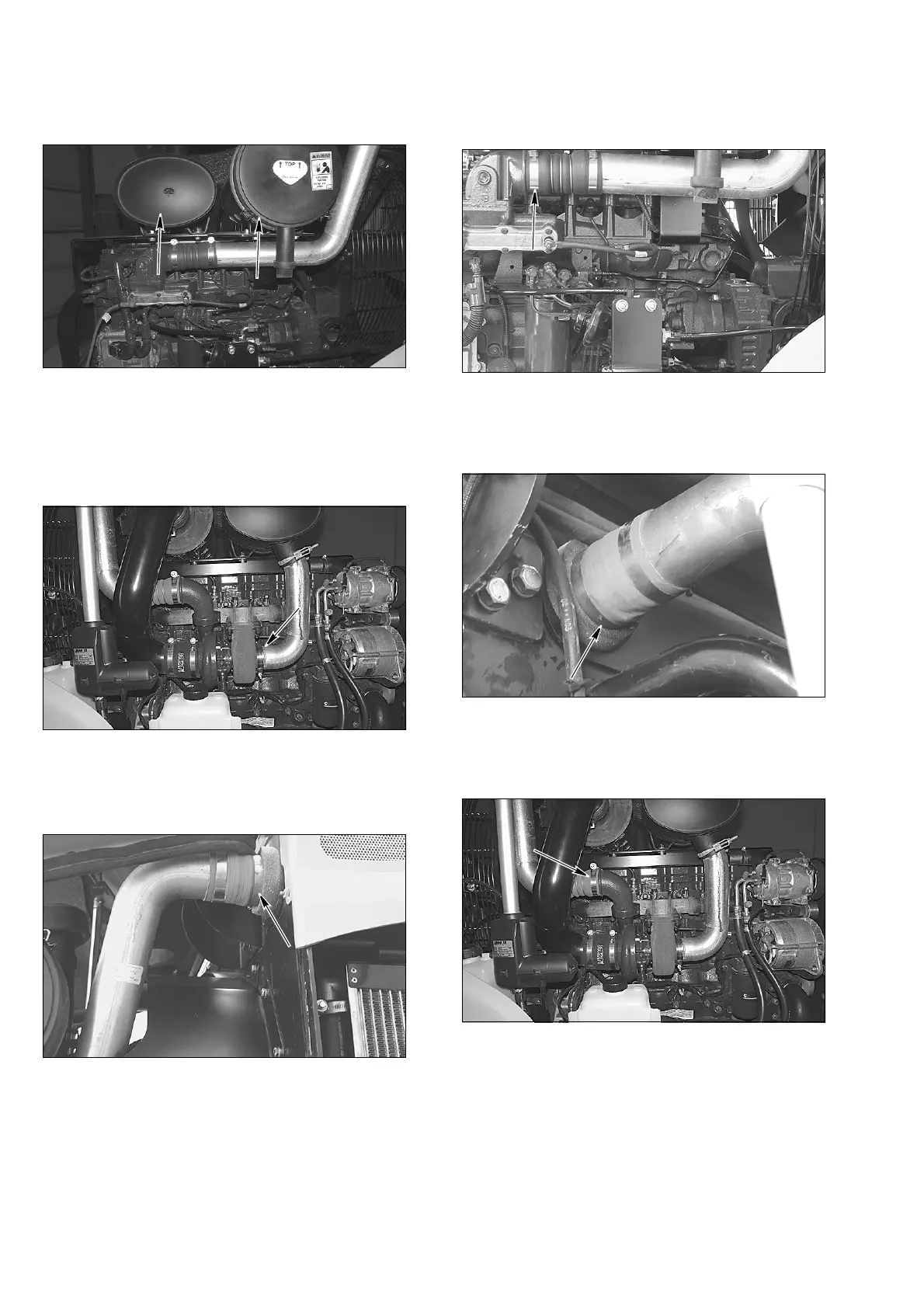

STEP 65
BD06F112
Place the muffler and air cleaner on the bracket.
Install mounting bolts in air cleaner and tighten,
install the mounting bolts in the muffler and leave
loose at this time.
STEP 66
BD06F110
Install and tighten the exhaust clamp on the
turbocharger, tighten the muffler mounting bolts.
STEP 67
BD03A118
Place the after cooler outlet hose on the machine.
Tighten the clamp on the after cooler.
STEP 68
BD06F111
Tighten the clamp on the intake manifold for the after
cooler output hose.
STEP 69
BD03A115
Place the after cooler inlet hose on the machine.
Tighten the clamp on the after cooler.
STEP 70
BD06F110
Tighten the clamp on the turbocharger for the after
cooler inlet hose.
