2000-15
STEP 71
BD06F110

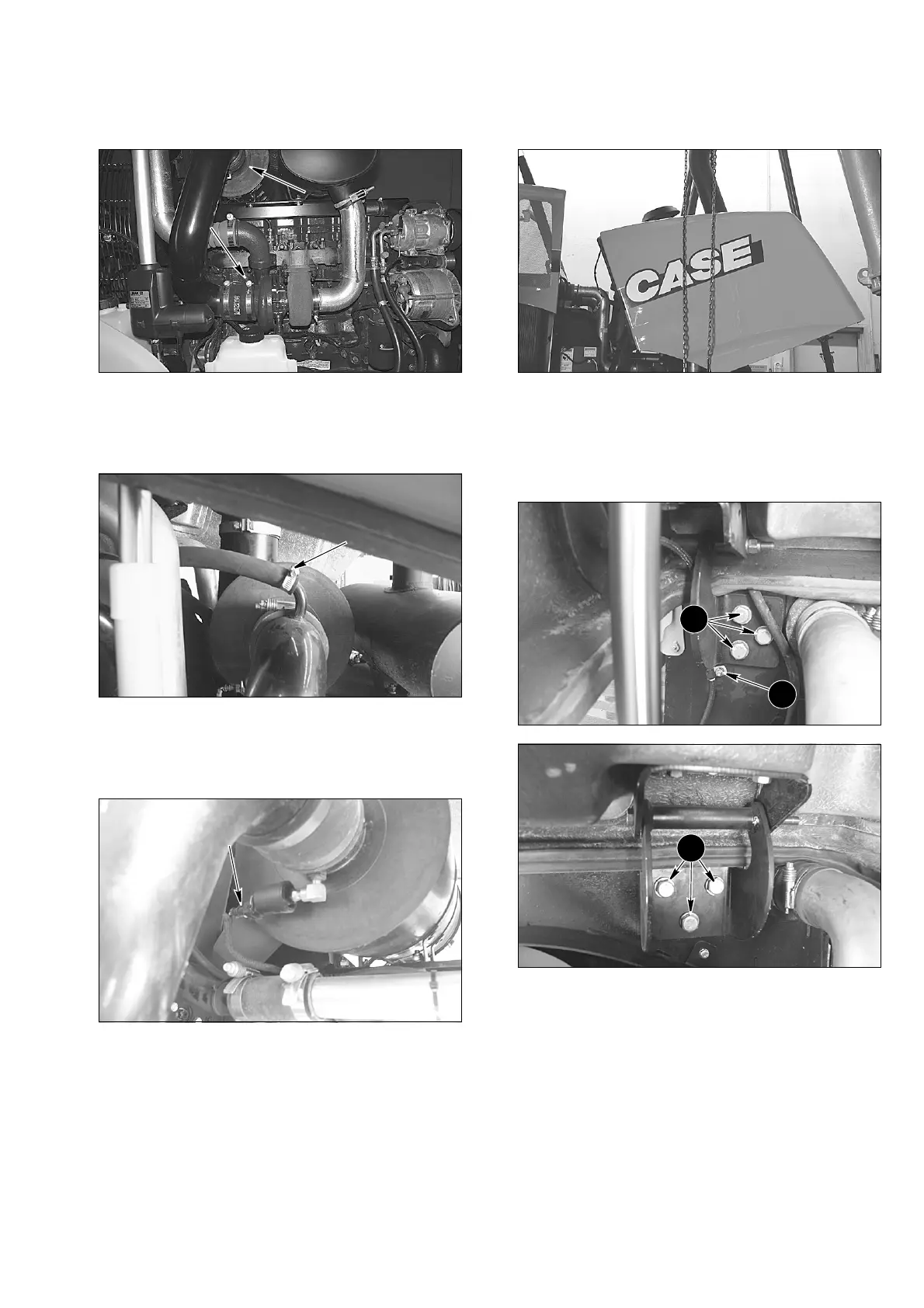

Install the intake hose and tighten the clamps on
turbocharger and air cleaner.
STEP 72
BD03A225
Install the crankcase ventilation hose and tighten the
clamp on air cleaner intake hose.
STEP 73
BD03A224
Connect engine wiring harness connector to air filter
restriction switch. Remove and discard tag.
STEP 74
BD03A232
Carefully raise and place hood over loader.
NOTE: Refer to step 7 and 8 of removal for lifting
procedure.
STEP 75
BD03A227
BD03A226
Have another person balance the hood, install the
hood hinge mounting bolts (2) to the cooler frame.
Install mount bolt (1) and backup alarm wiring
harness clamp to cooler housing.
