INSTRUMENT CLUSTER DISPLAYS

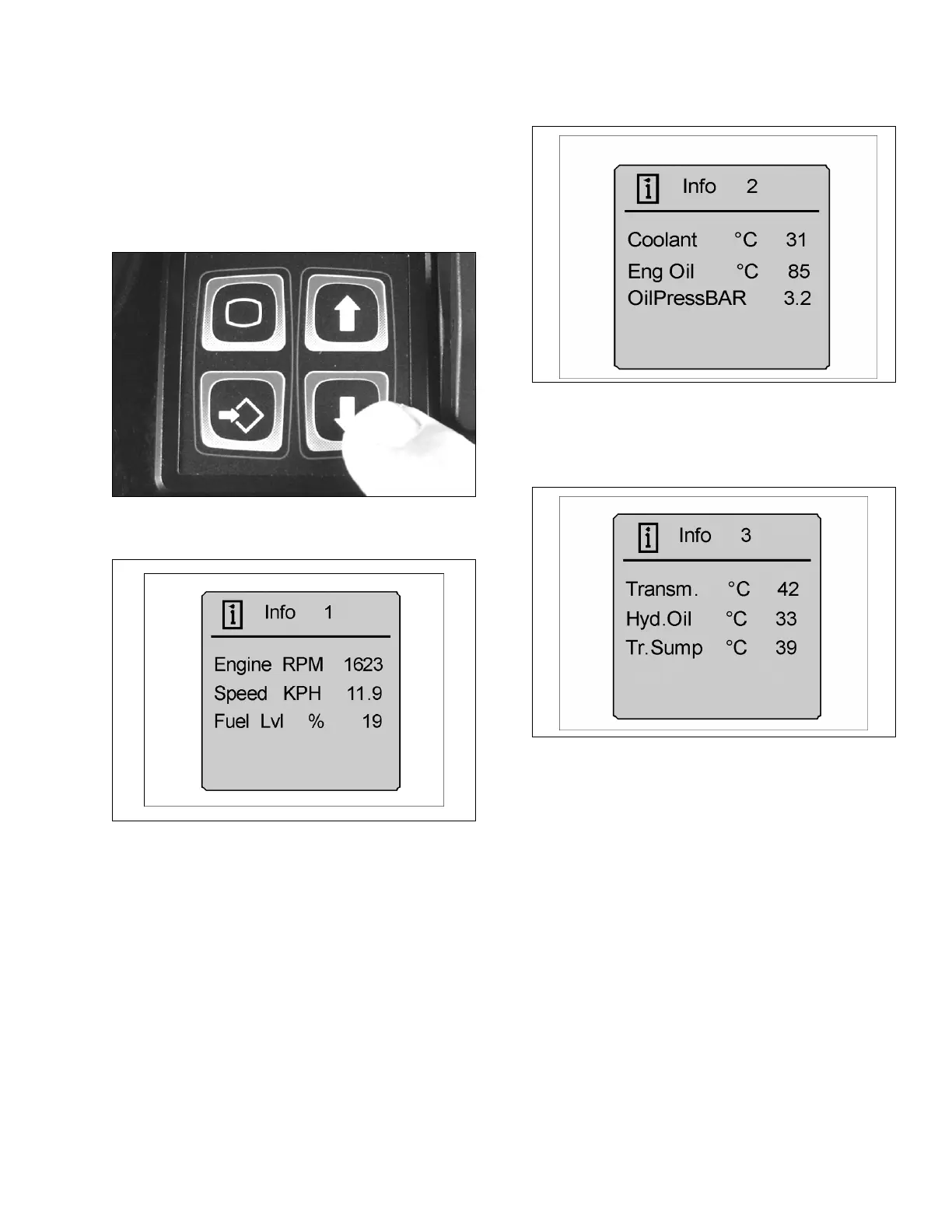

1. With the engine running, press the up or down
key and scroll through the information screens
and trip screens. The following sequence is using
the down key only.
NOTE: Pressing the escape key will return the LCD
back to the normal driving screen.
BD06F188
2. From the driving screen push the down arrow, as
shown.
BD06F183
3. Info 1 is the first information screen using the
down arrow from the driving screen. It displays
engine RPM’s, speed, and fuel level.
BD06F027
4. Info 2 will be displayed next. The Info 2 screen
will display coolant temperature, engine oil
temperature in either Fahrenheit or Celsius, as
well as oil pressure.
BD06F184
5. Push the down button again for the Info 3 screen.
This screen displays the temperature in
Fahrenheit or Celsius of the transmission oil,
hydraulic oil, sump oil.
