2000-20
Installation
STEP 12
Move radiator into position above cooling frame.
Carefully lower radiator while guiding it into position
in cooling frame.

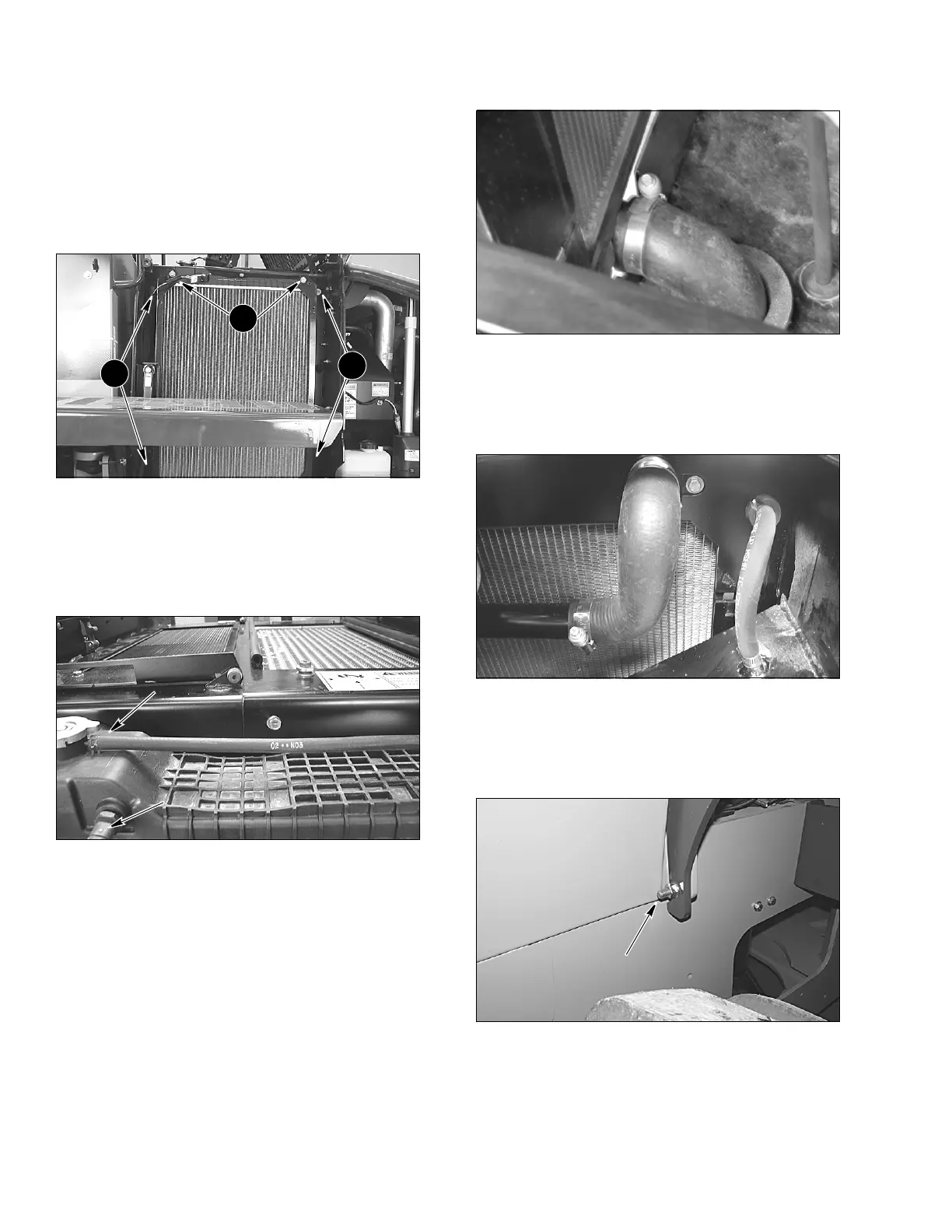

STEP 13
BD03A106
Install four lock washers and bolts (2) to secure
radiator to cooling frame. Disconnect lifting
equipment from lifting eyes. Remove lifting eyes and
install screws (1).
STEP 14
BD03A113
Connect connector to coolant level sender, connect
overflow hose to radiator.
STEP 15
BD06F129
At bottom of radiator, install bottom radiator hose.
Position and tighten two hose clamps to a torque of
10.1 to 11.3 Nm (90 to 100 lb-inch).
STEP 16
BD03A108
At top of cooling system frame, install hose. Position
hose clamps and tighten to a torque of 10.1 to 11.3
Nm (90 to 100 lb-inch).
STEP 17
BD06F130
When installing fender make sure it is behind the
fender mounting bolt.
1
2
2
