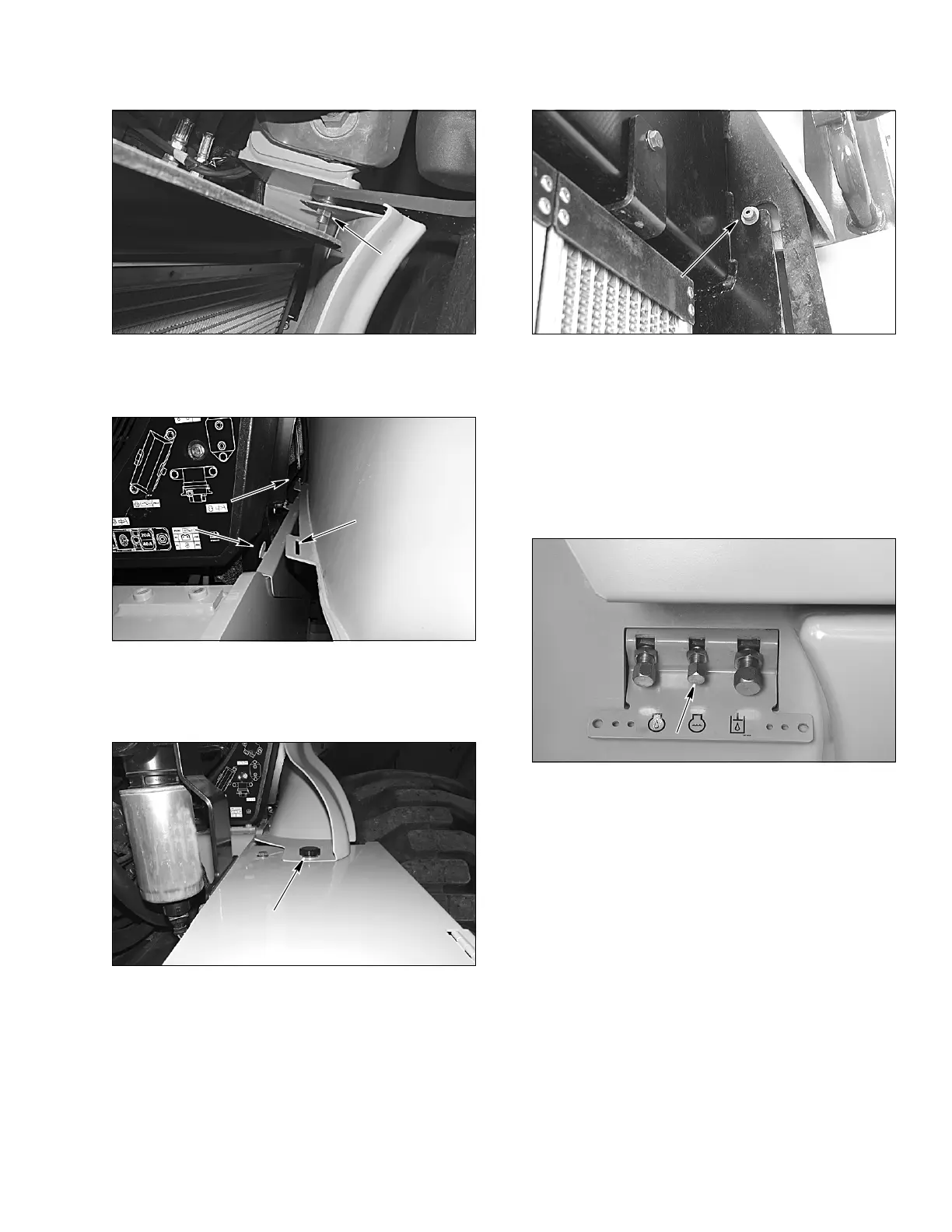

2000-21
STEP 18
BD06F131
Align the whole in the fender on the bolt.
STEP 19
BD06F132
Align the slots in the fender with the tabs on the body
of the machine.
STEP 20
DSC00105.TIF
Push the fender towards the front of the machine and
secure it using washer and bolt.
STEP 21
BD03A120
Have another person raise and hold the side panel
up into position. Apply Loctite 242 to the threads,
install the two mounting screws for the side panel
and torque to 6.5 ± 3.0 Nm (57.5 ± 26.5
pound-inches).
NOTE: Photo is of the oil cooler side of the machine,
the procedure is the same.
STEP 22
BD02N160
Check that coolant drain cap is tight.
STEP 23
Fill engine coolant system with a solution of 50%
Ethylene Glycol and 50% water. Cooling system
capacity is 30 liters (32.0 U.S. quarts). Install the
radiator cap. Fill the coolant reservoir up to the FULL
mark on the reservoir.
