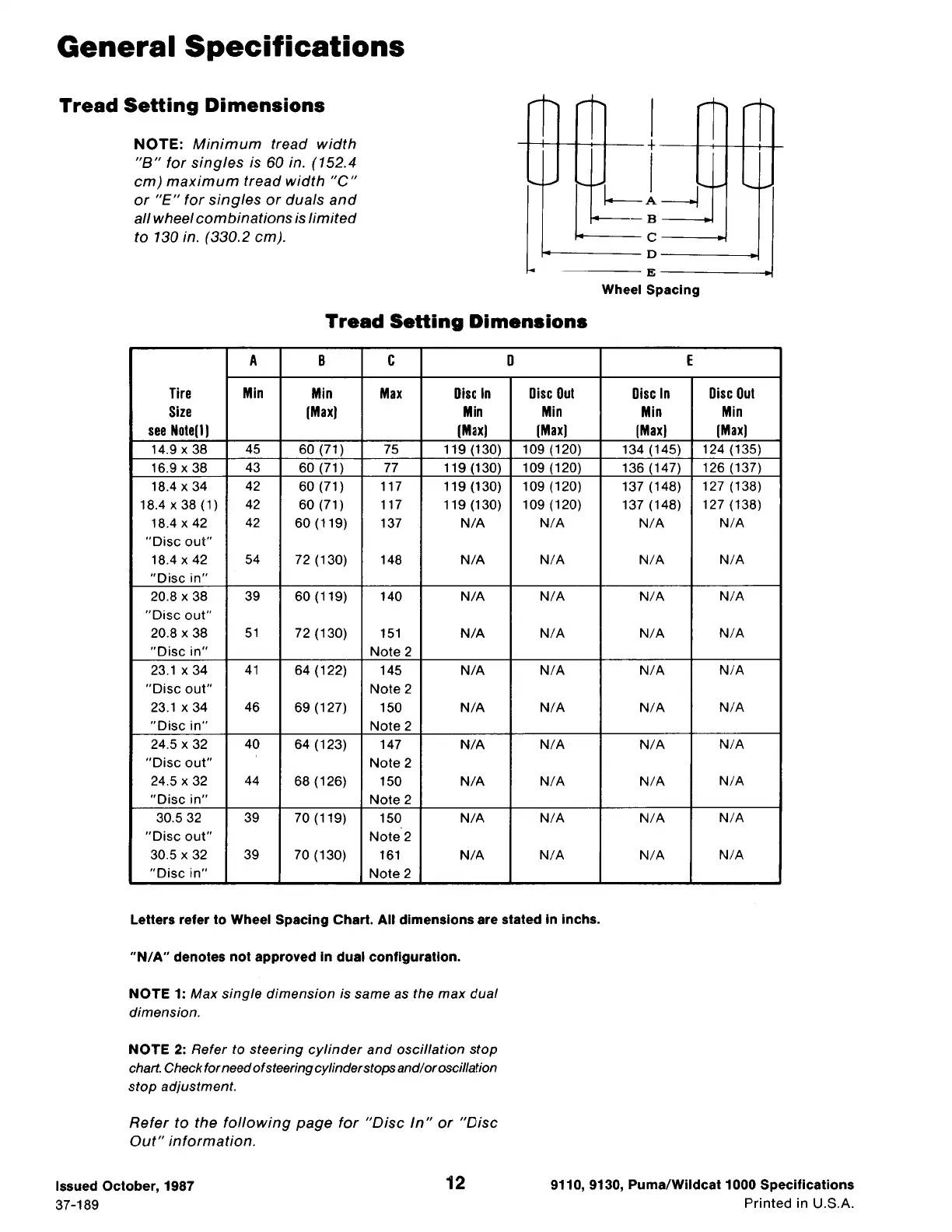

General Specifications
Tread Setting Dimensions
NOTE: Minimum tread width
"B" for singles is 60 in. (152.4
cm) maximum tread width
"C"
or "E" for singles or duals and
all wheel combinations is limited
to 130 in. (330.2 cm).
I
-+--+-+--.._.-+--- + -----il--+--+--+--+-1-
~ i ~
-----D-------i
------E------
Wheel Spacing
Tread Setting Dimensions
A
B C D
E
Tire
Min
Min Max Disc In Disc Out Disc In Disc Out
Size
(Max)
Min Min Min Min
see Note(l) (Max) (Max) (Max)
(Max)
14.9 X 38
45
60 (71) 75 119(130)
109 (120)
134 (145)
124 (135)
16.9x38
43
60 (71) 77 119(130) 109 (120) 136 (147)
126 (137)
18.4
X 34
42 60 (71)
117
119(130) 109 (120) 137 (148) 127 (138)
18.4
X 38 (1) 42 60 (71)
117
119(130) 109 (120) 137 (148) 127 (138)
18.4x42
42 60 (119)
137
N/A
N/A
N/A
N/A
"Disc out"
18.4x42
54
72 (130) 148
N/A N/A N/A
N/A
"Disc in"
20.8
X 38 39 60 (119) 140
N/A N/A N/A N/A
"Disc out"
20.8
X 38 51
72 (130) 151
N/A
N/A
N/A
N/A
"Disc in"
Note 2
23.1 x34 41
64 (122) 145
N/A N/A N/A
N/A
"Disc out"
Note 2
23.1 x34
46
69 (127) 150
N/A N/A N/A
N/A
"Disc in"
Note 2
24.5
X 32
40
64 (123) 147
N/A N/A N/A
N/A
"Disc out"
Note 2
24.5
X 32
44
68 (126)
150
N/A N/A
N/A N/A
"Disc in"
Note 2
30.5 32 39 70 (119)
150
N/A N/A N/A
N/A
"Disc out"
Note 2
30.5
X 32
39 70 (130) 161
N/A
N/A
N/A
N/A
"Disc in"
Note 2
Letters refer to Wheel Spacing Chart. All dimensions are stated In inchs.
"N/A" denotes not approved In dual configuration.
NOTE 1: Max single dimension is same as the max dual
dimension.
NOTE 2: Refer to steering cylinder and oscillation stop
chart. Check for need of steering cylinder stops and/or oscillation
stop adjustment.
Refer to the following page for "Disc In" or "Disc
Out" information.
