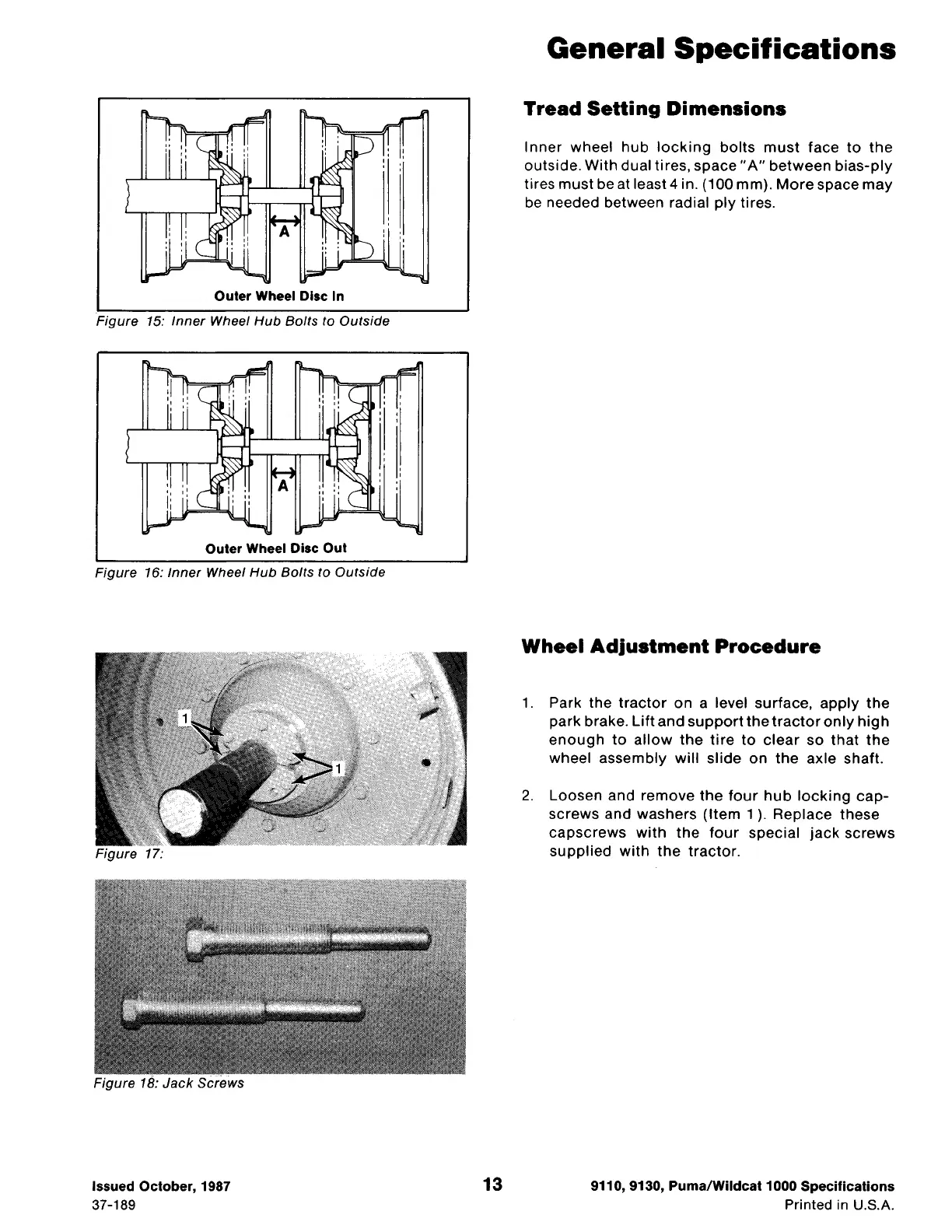

Outer Wheel Disc In
Figure 15: Inner Wheel Hub Bolts to Outside
Outer Wheel Disc Out
Figure 16: Inner Wheel Hub Bolts to Outside
Figure 17:
Figure 18: Jack Screws
Issued October, 1987
37-189
13
General Specifications
Tread Setting Dimensions
Inner wheel hub locking bolts must face to the
outside. With dual tires, space" A" between bias-ply
tires must be at least 4 in. (100 mm). More space may
be needed between radial ply tires.
Wheel Adjustment Procedure
1. Park the tractor on a level surface, apply the
park brake. Lift and support the tractor only high
enough to allow the tire to clear so that the
wheel assembly will slide on the axle shaft.
2. Loosen and remove the four hub locking cap-
screws and washers (Item 1 ). Replace these
capscrews with the four special jack screws
supplied with the tractor.
