ELECTRIC CIRCUIT
5 - 10
CASE TRAINING CENTER
AUGUST 2000

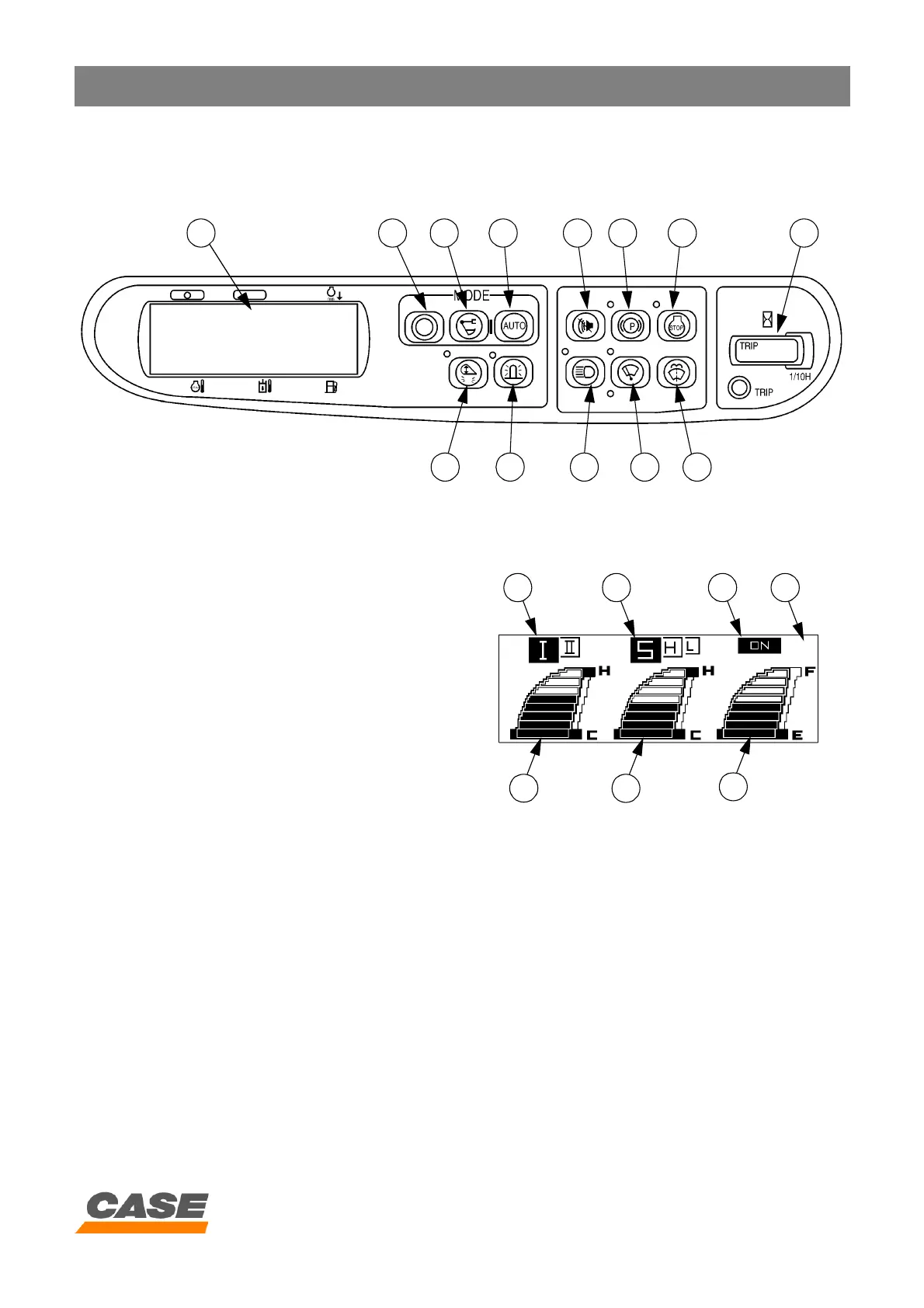

Instrument panel
CM00E001
1. Travel mode switch
2. Working mode switch
3. Automatic mode switch
4. Buzzer stop switch
5. Swing brake switch
6. Engine emergency stop switch
7. Hourmeter
8. Shock absorption (Hard/soft) switch
9. Rotary light switch
10. Working light switch
11. Windshield wiper switch
12. Windshield washer switch
13. Control screen
CS00F521
14. Travel speed indicator
15. Working mode indicator
16. Idle mode indicator
17. Water temperature indicator
18. Hydraulic oil temperature indicator
19. Fuel level indicator
13 1 2 3 4 5 6 7
12111098
14 15 16 13
17
18
19
To Next Page
