5 - 9
ELECTRIC CIRCUIT
CASE TRAINING CENTER
AUGUST 2000

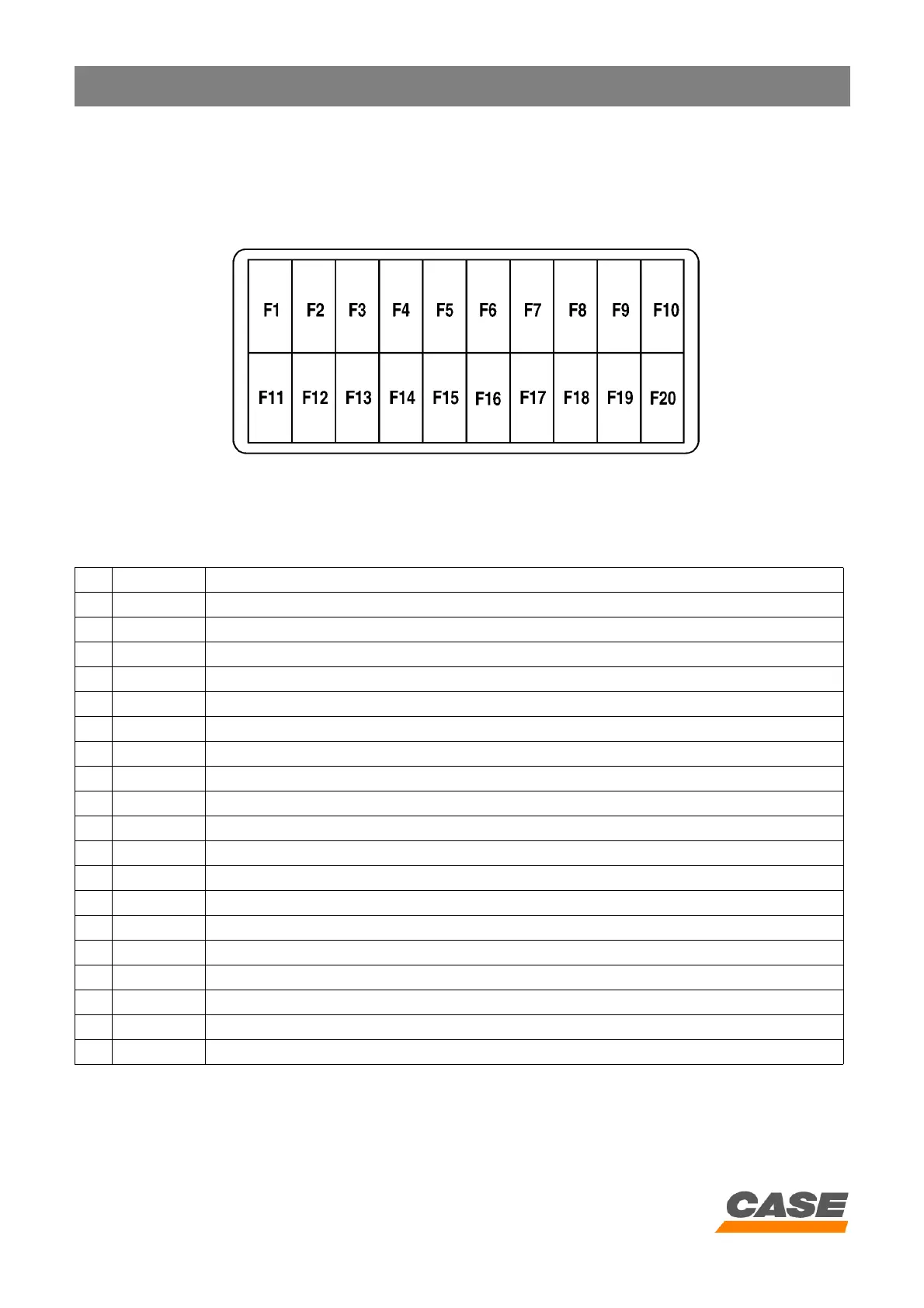

Fuse box
CM00E005
F1 Fuse 20A: Engine electronic control box
F2 Fuse 20A: Electronic box control
F3 Fuse 20A: Power for electronic control box
F4 Fuse 10A: Hydraulic control cancellation
F5 Fuse 15A: Grease fitting (not used)
F6 Fuse 10A: Rotary light
F7 Fuse 20A: Fuel filler pump
F8 Fuse 15A: Engine emergency stop motor
F9 Fuse 30A: Pre-heater plug
F10 Fuse 10A: Option
F11 Fuse 10A: Memory
F12 Fuse 10A: Starting, radio and cab light switch
F13 Fuse 20A: Air conditioning, heating
F14 Fuse 5A: Air conditioning compressor
F15 Fuse 15A: Working lights
F16 Fuse 15A: Working light (not used)
F17 Fuse 10A: DC converter (24 V - 12 V)
F18 Fuse 15A: Windshield wiper and washer
F19 Fuse 10A: Horn
F20 Fuse 15A: Cigar lighter and cab seat
