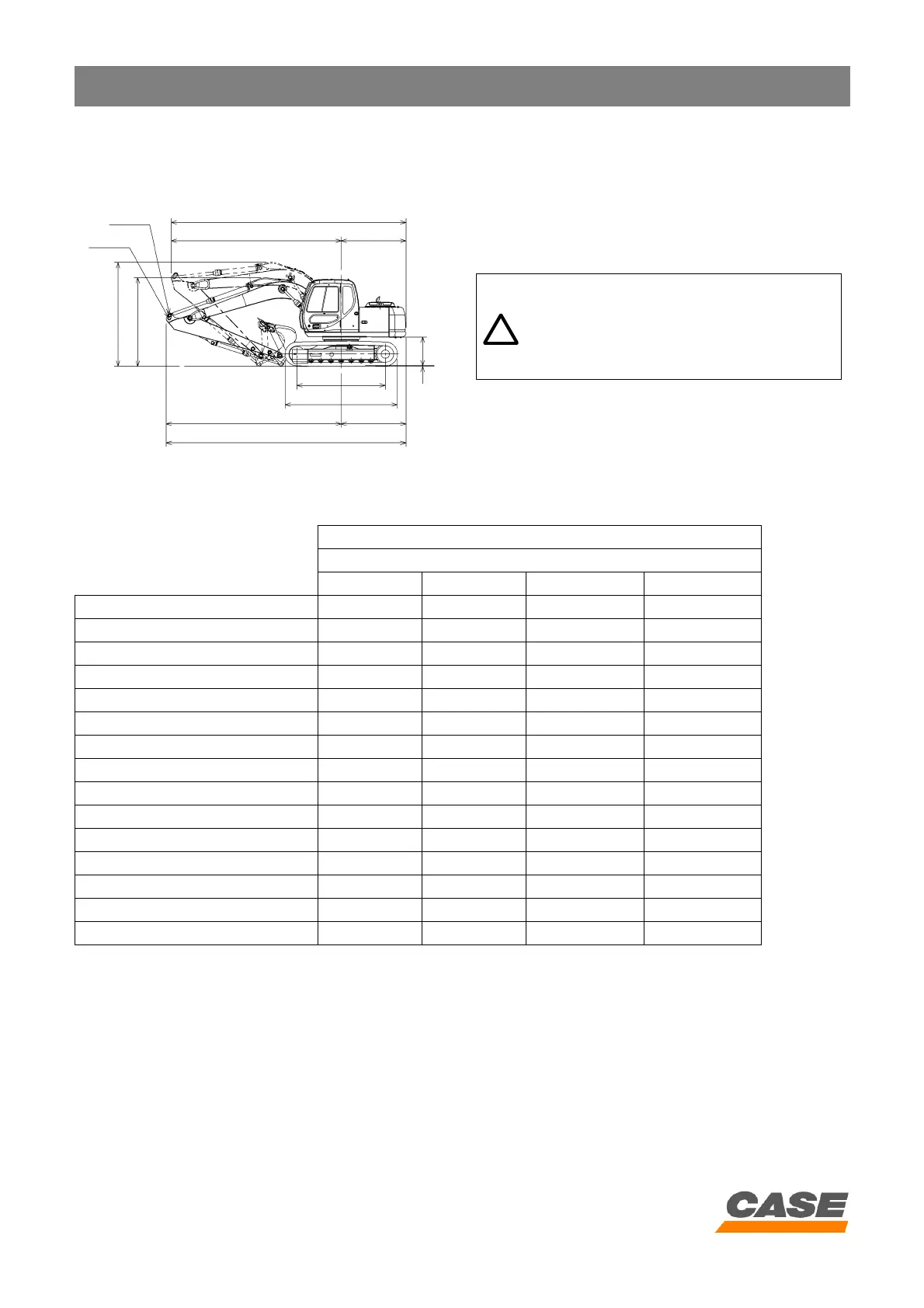

MACHINE OVERALL DIMENSIONS
Only on CX130 machines with 3 m dipper
CS00E527
Point A: Working position
Point B: Transport position
IMPORTANT: For CX130 machines with 3 m dipper, it
is imperative that the dipper cylinder head/dipper
linkage is positioned at point B.
NOTE: Never work with the pin in this position.
C
H
G
F
I
D
H
C
AA
Point A
Point B
WARNING: When the dipper cylinder is
placed in position B (transport), take care
not to damage the cab, there can be
interference between the bucket and the
cab.
!
CX130
Dipper
2.10 m 2.50 m 3.00 m (A) 3.00 m (B)
A 2.74 m 2.74 m 3.26 m 2.78 m
B 2.74 m 2.74 m 2.74 m 2.74 m
C 7.48 m 7.49 m 7.38 m 7.54 m
D 3.54 m 3.54 m 3.54 m 3.54 m
E 2.52 m 2.52 m 2.52 m 2.52 m
F 0.894 m 0.894 m 0.894 m 0.894 m
G 2.04 m 2.04 m 2.04 m 2.04 m
H 5.44 m 5.45 m 5.34 m 5.50 m
I 2.78 m 2.78 m 2.78 m 2.78 m
J 1.99 m 1.99 m 1.99 m 1.99 m
K 0.50 m 0.50 m 0.50 m 0.50 m
L (with 500 mm track pads) 2.49 m 2.49 m 2.49 m 2.49 m
L (with 600 mm track pads) 2.59 m 2.59 m 2.59 m 2.59 m
L (with 700 mm track pads) 2.69 m 2.69 m 2.69 m 2.69 m
M 0.46 m 0.46 m 0.46 m 0.46 m
