Case CX130 - Page 31

2 - 5

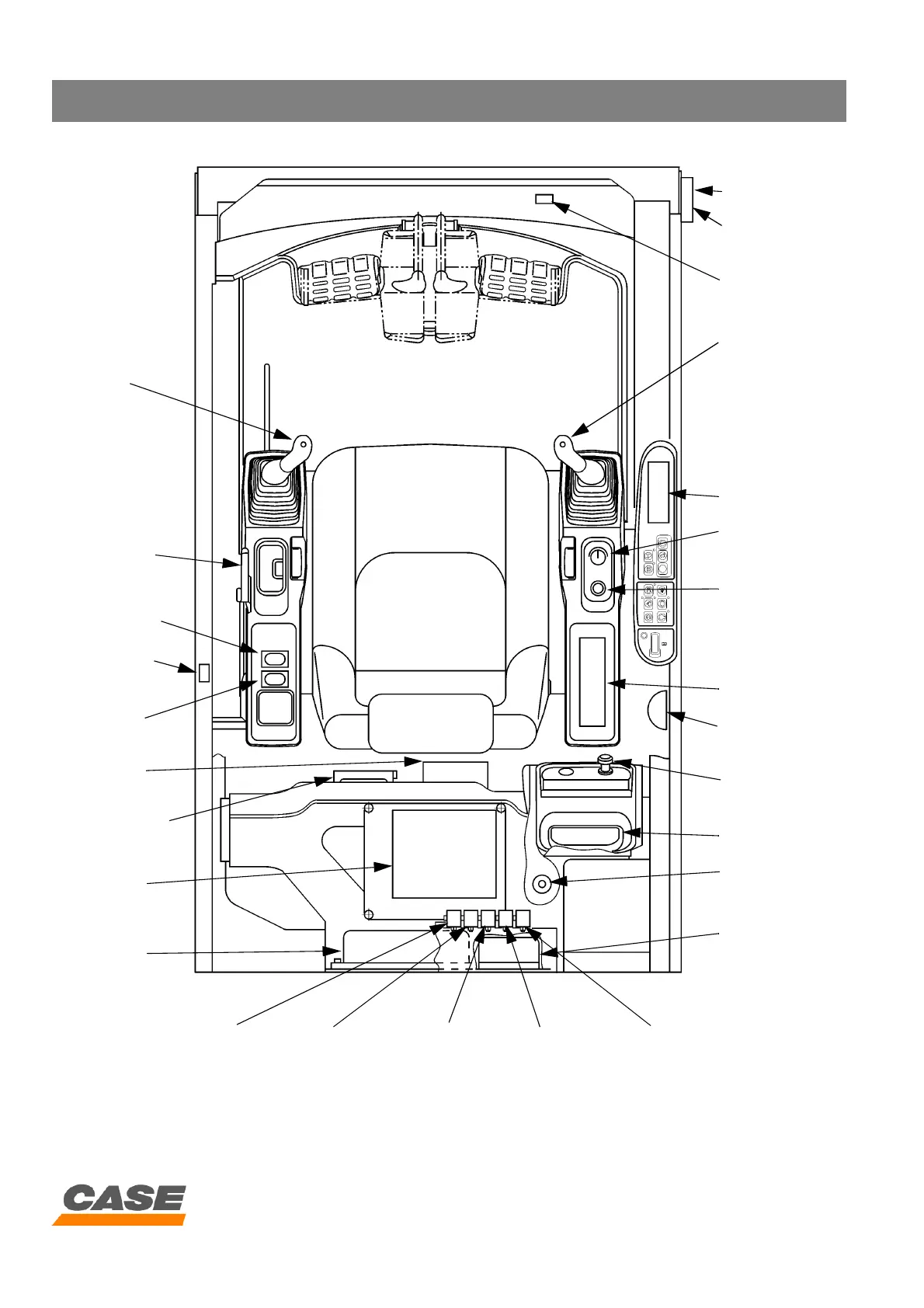

COMPONENTS LAYOUT CX130
CASE TRAINING CENTER
AUGUST 2000
Cab controls
Horn switch
Wi
pper mo
t
or
controller
Wipper motor
Windshield
switch
Engine throttle
knob
Iddle switch
Instrument
panel
Key switch
A/C controls
Sun shine
sensor for A/C
Dome light
Radio set
Cigar lighter
Fuse box
Engine
controller
Door switch
Overload
switch
A/C unit
Crusher/braker
rocker switch
Gate lock lever
DC convertor
24V-12V
Machine
controller
Beacon
relay
Engine
emergency
shut down
relay
Work light
relay
Horn relay Glow plug
relay
