COMPONENTS LAYOUT CX130
2- 6
CASE TRAINING CENTER
AUGUST 2000

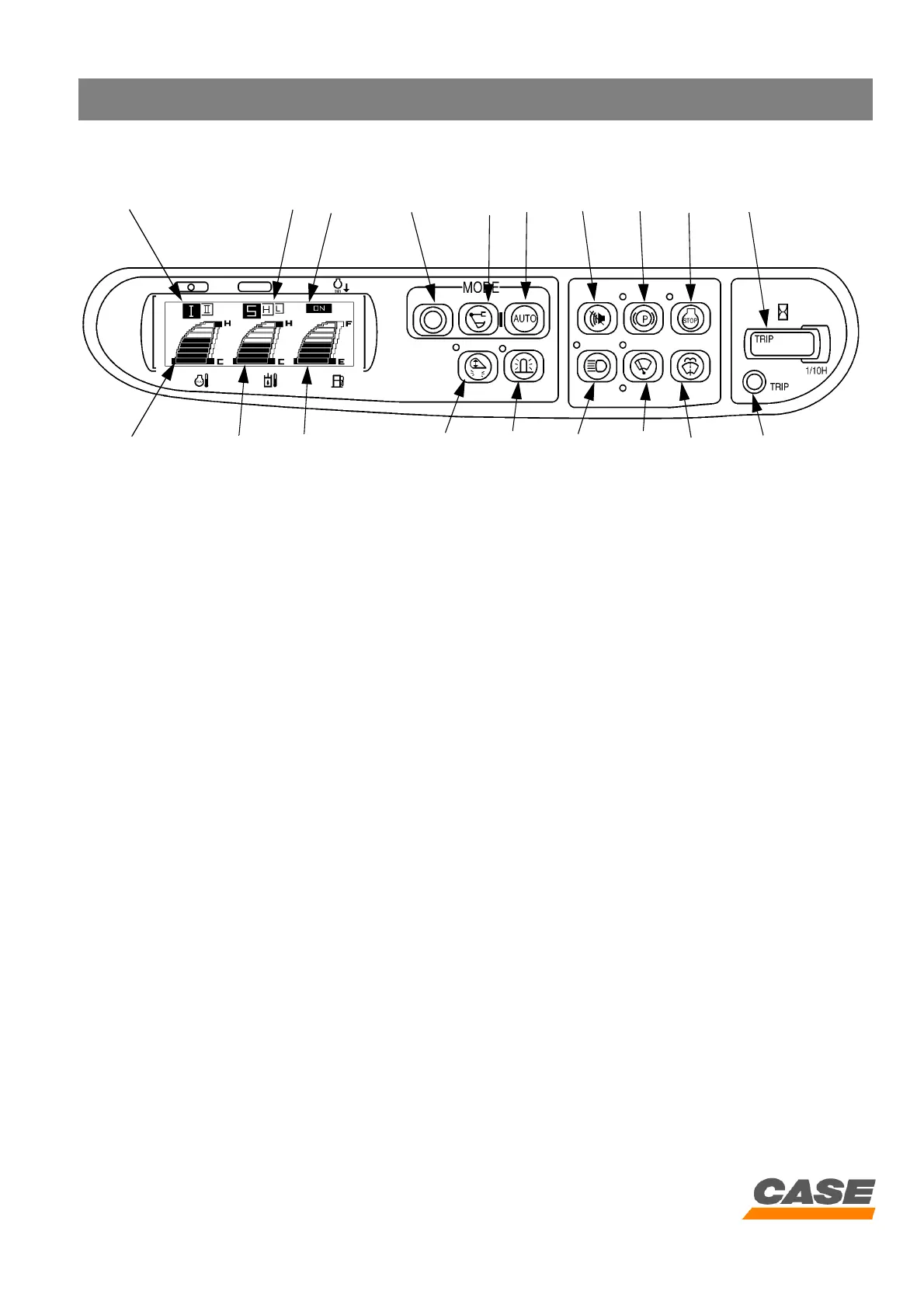

Instrument panel
1. Travel mode switch
2. Work mode switch
3. Auto mode switch
4. Buzzer stop switch
5. Swing brake switchr
6. Emergency shutdown switch
7. Hourmeter
8. Cushion switch
9. Rotating beacon switch
10. Work light switch
11. Wipper switch
12. Windshield washer switch
13. Hourmeter trip switch
14. Travel speed indicator (1 or 2)
15. Work mode indicator (H, S, L or Auto)
16. Auto iddle mode indicator
17. Engine coolent temperature bar-graph
18. Hydraulic oil temperature bar-graph
19. Fuel level bar-graph
14
1098191817
6543211615
1211
7
13
