DISTRIBUTIONSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
Mainpumpsowcurveandpilotpressure
"Negativeowcontrol"diagram
•
Enginespeed2000RPM
•
Maximumdisplacement96.7cm³.
Hydraulicpump-Specialtools(A.10.A.20-D.20.A.40)
CX225SR
NOTE:Thetoolslistedbelowaretobemanufacturedlocally.
NOTE:NumbersinparenthesesrefertoHydraulicpump-Sectionalview(A.10.A.20-C.10.A.30)

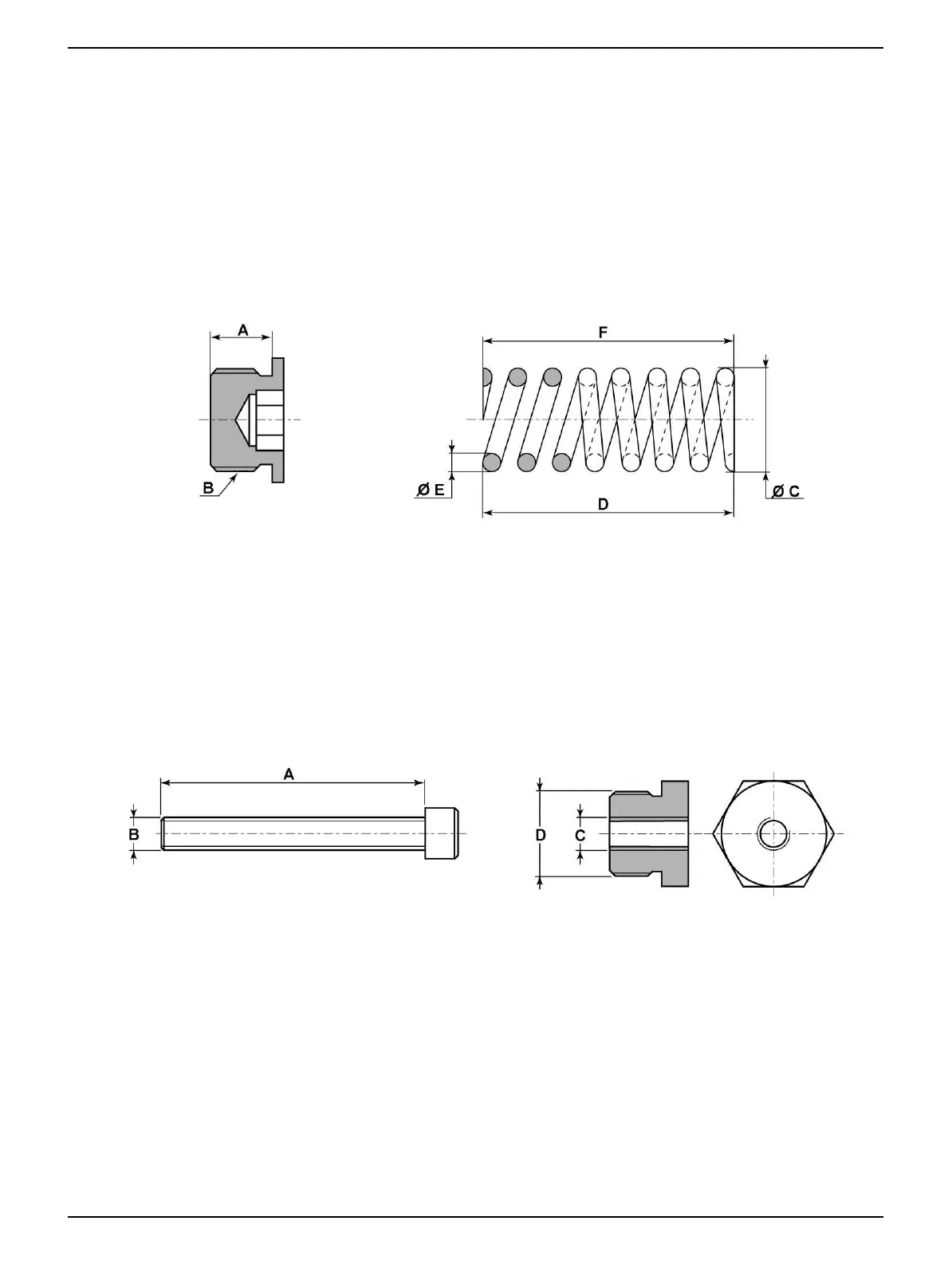

CRIL04B006E011
Usedtoinstallpiston(69)and(70).
(A)
20mm
(B)G1
(C)
diameter23mm
(D)
56mm
(E)
diameter4mm
(F)Numberofcoils:7
CRIL04B007E012
Usedtoinstallpusherbracket(47).
(A)
50mm
(B)
M12
(C)
M12
(D)G3/4
26020102/12/2004
A.10.A/15
