INTRODUCTION

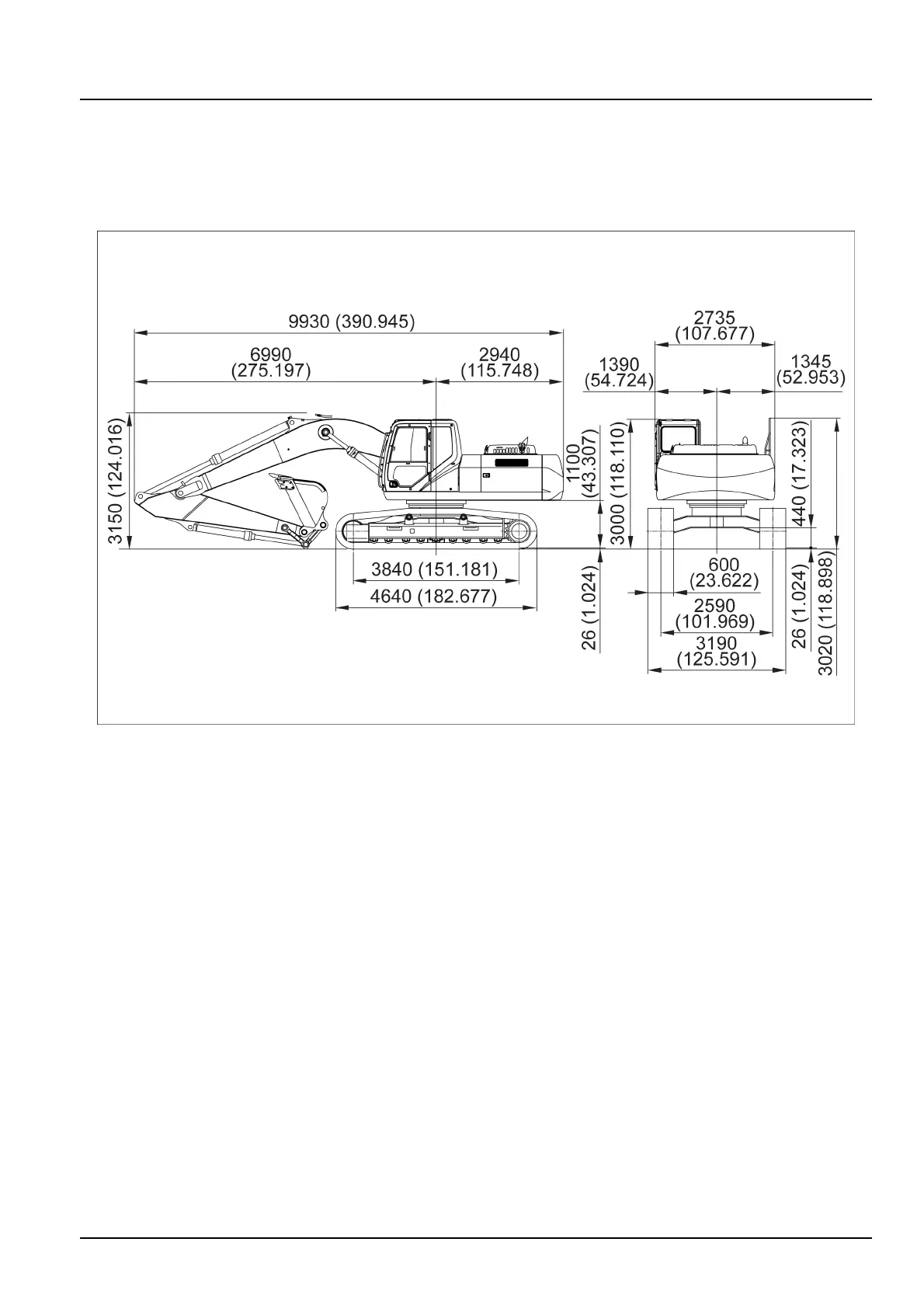

Dimension
Standardarm[3.00m(9.8425ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
Thediagramsgivevaluesthatincludetheshoelugheight“a”[26mm(1.024in)].
SMIL15CEX3797FA1
4787701401/07/2015
29
