Case CX350C - Engine - Remove

Engine-Engineandcrankcase
Engine-Remove
1.Draintheengineoil.(Fordetails,See“EngineOilRe-
placing”.)
2.Drainthecoolantfromtheradiator.(Fordetails,see
Radiator-Remove(10.400))
3.Removetheenginehood.(Fordetails,seeHood-
Remove(90.100))
4.Removethehydraulicpump.(Fordetails,seePump-
Remove(35.106))

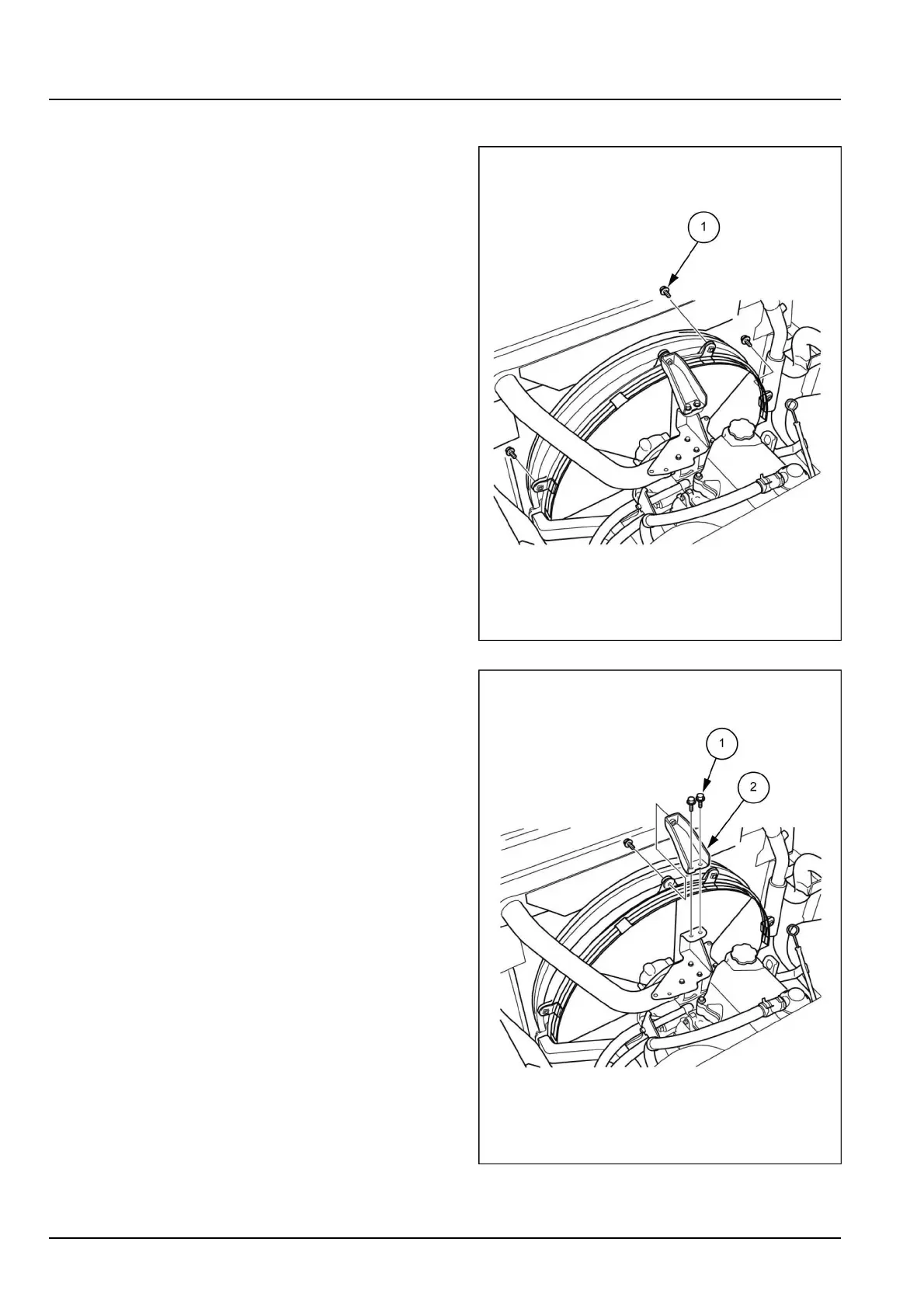

5.Useawrench[13mm]toremovethe3bolts(1).
LPIL12CX03541BB1
6.Useawrench[13mm]toremovethe3bolts(1),and
thenremovethebracket(2).
LPIL12CX03542BB2
4802442623/05/2016
10.1[10.001]/12
