Case CX37C - Dimensions

INTRODUCTION
Dimensions
Cabversion

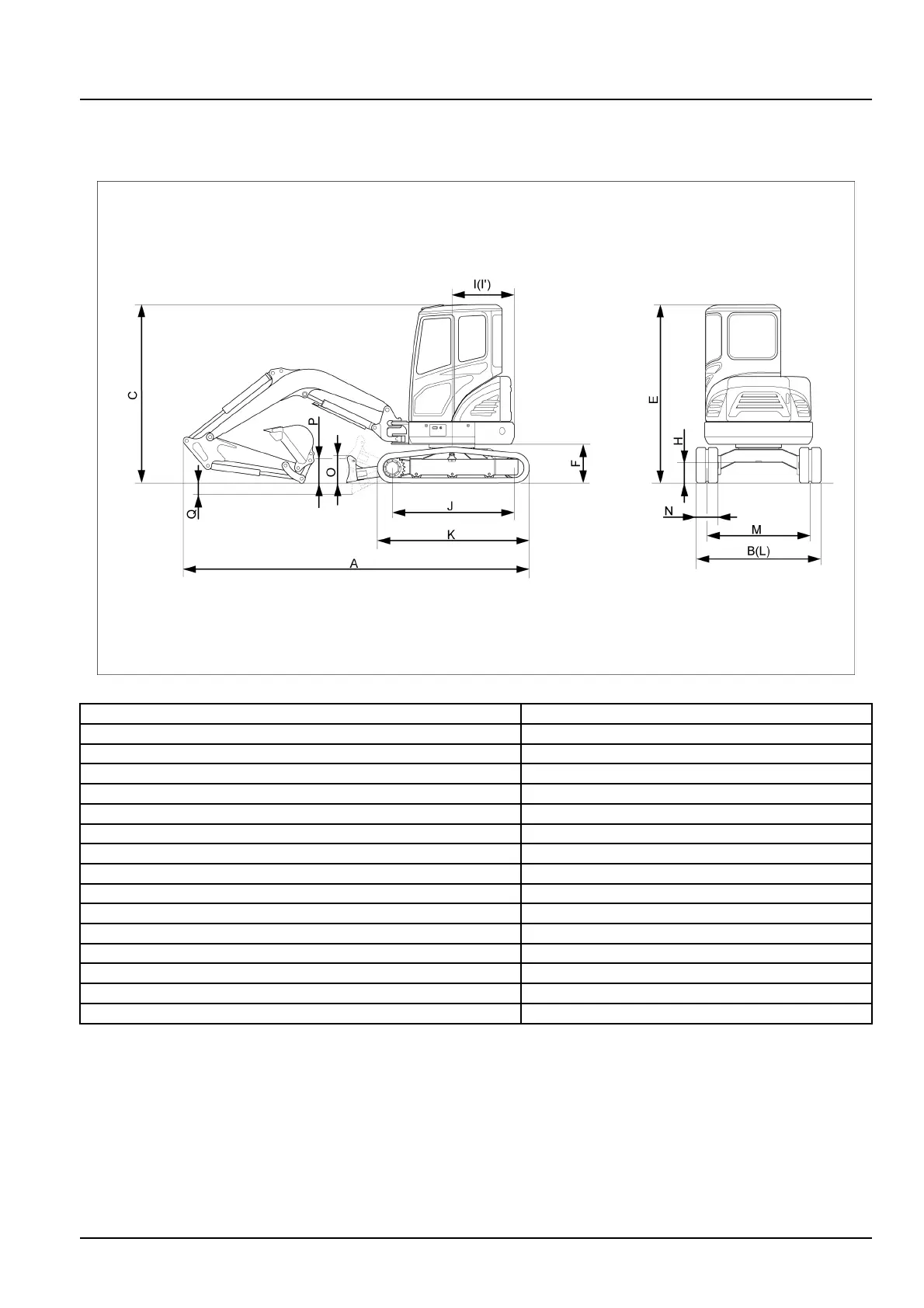

SMIL16MEX0048FA1
(A)Overalllength4790mm(188.6in)
(B)Overallwidth,with300mm(11.8in)shoe1740mm(68.5in)
(C)Overallheight2500mm(98.4in)
(E)Overallheightofcab2500mm(98.4in)
(F)Groundclearanceofcounterweight540mm(21.3in)
(H)Minimumgroundclearance290mm(11.4in)
(I)Rear-enddistance870mm(34.3in)
(I’)Rear-endswingradius870mm(34.3in)
(J)Distancebetweentumblers1700mm(66.9in)
(K)Undercarriagelength2130mm(83.9in)
(L)Undercarriagewidth1740mm(68.5in)
(M)Trackgauge1440mm(56.7in)
(N)Trackshoewidth,standard300mm(11.8in)
(O)Heightofblade370mm(14.6in)
(P)Groundclearanceofbladeup375mm(14.8in)
(Q)Depthofbladedown390mm(15.4in)
Boomlength:2.5m(98.425in)
Armlength:1.3m(51.181in)
Withboomswingpost
