Case CX800B - Weight

INTRODUCTION
Weight

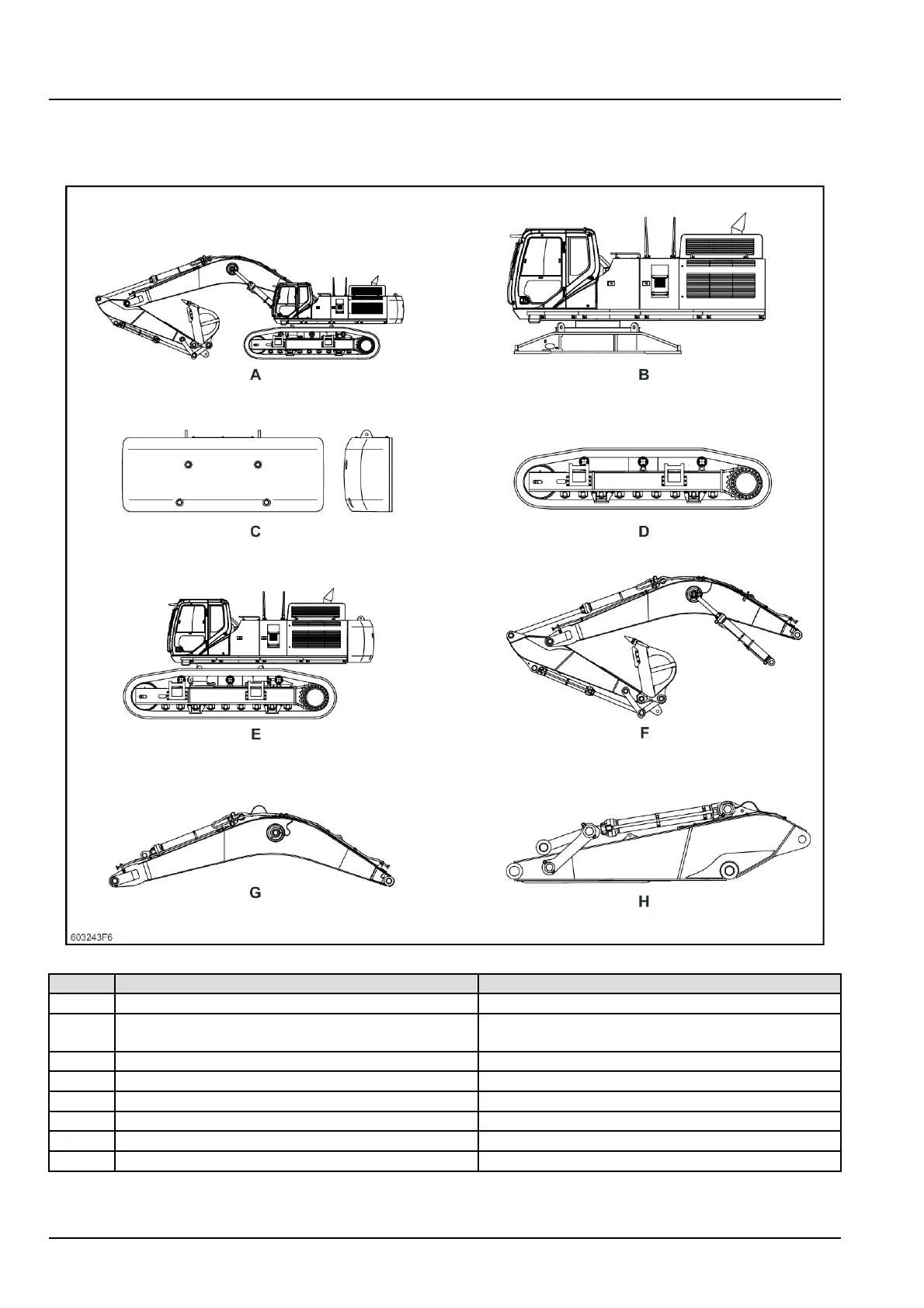

Dividedweight(LCStandardundercarriage)
603243F61
Code
Partname
Weight
A
Operatingweight83200kg(183424.602lb)
B
Uppercomponent(includingcounterweightand
turntablebearing)
25300kg(55776.952lb)
C
Counterweight12500kg(27557.783lb)
D
Lowercomponent(withgrousershoe)12400kg(27337.321lb)
E
Mainunitweight
64300kg(141757.235lb)
FAttachment
18700kg(41226.443lb)
G
Boom(includingcylinder)8200kg(18077.906lb)
H
Arm(includingcylinderandlinkage)4500kg(9920.802lb)
NOTE:Thebucketweightisnotincluded.Theweightsshownhereareapproximatevalues.
