INTRODUCTION

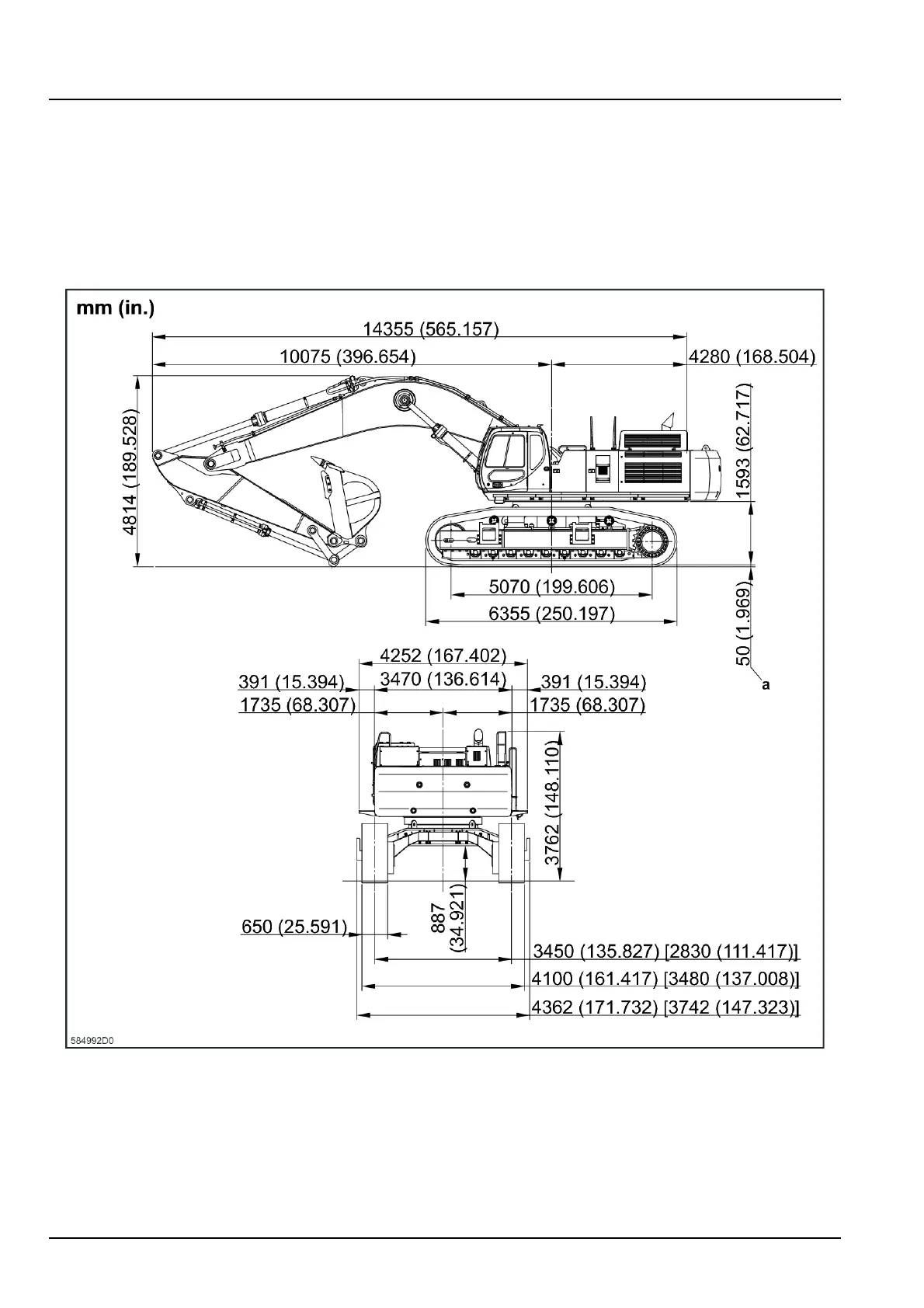

Dimension

Standardarm[3.66m(12.01ft)]

NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-

sons.

NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[50mm(1.969in)].

NOTE:Thedimensionwithinthebracketsindicatesthemaximumretractedlengthduringtransport.

584992D01

NOTE:Allthedimensionsingureareinmm(in.)

4802029215/06/2016
