INTRODUCTION

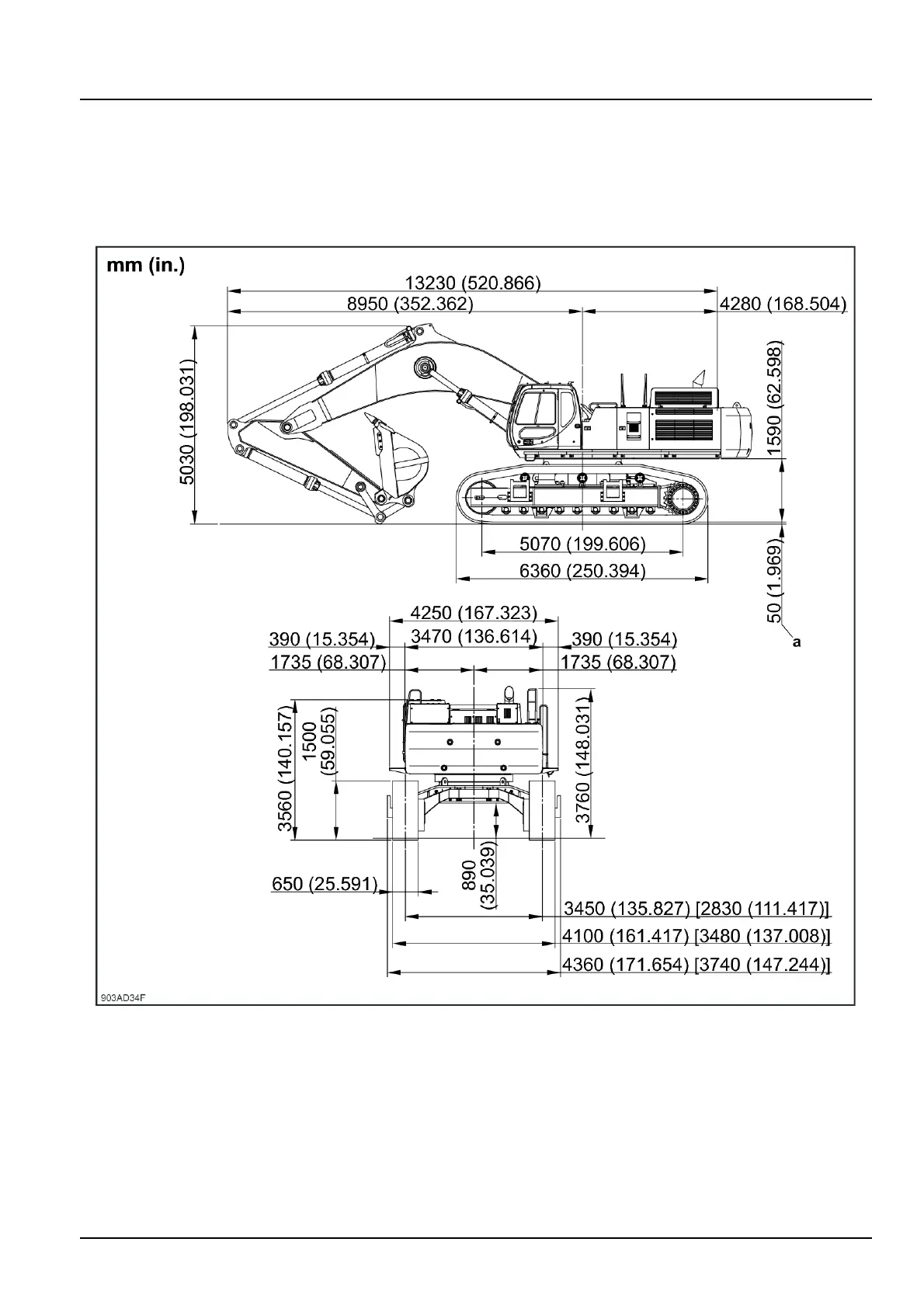

Shortarm[2.98m(9.78ft)]
NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-
sons.
NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[50mm(1.969in)].
NOTE:Thedimensionwithinthebracketsindicatesthemaximumretractedlengthduringtransport.
903AD34F2
NOTE:Allthedimensionsingureareinmm(in.)
4802029215/06/2016
31
