Case CX800B - Page 39

INTRODUCTION

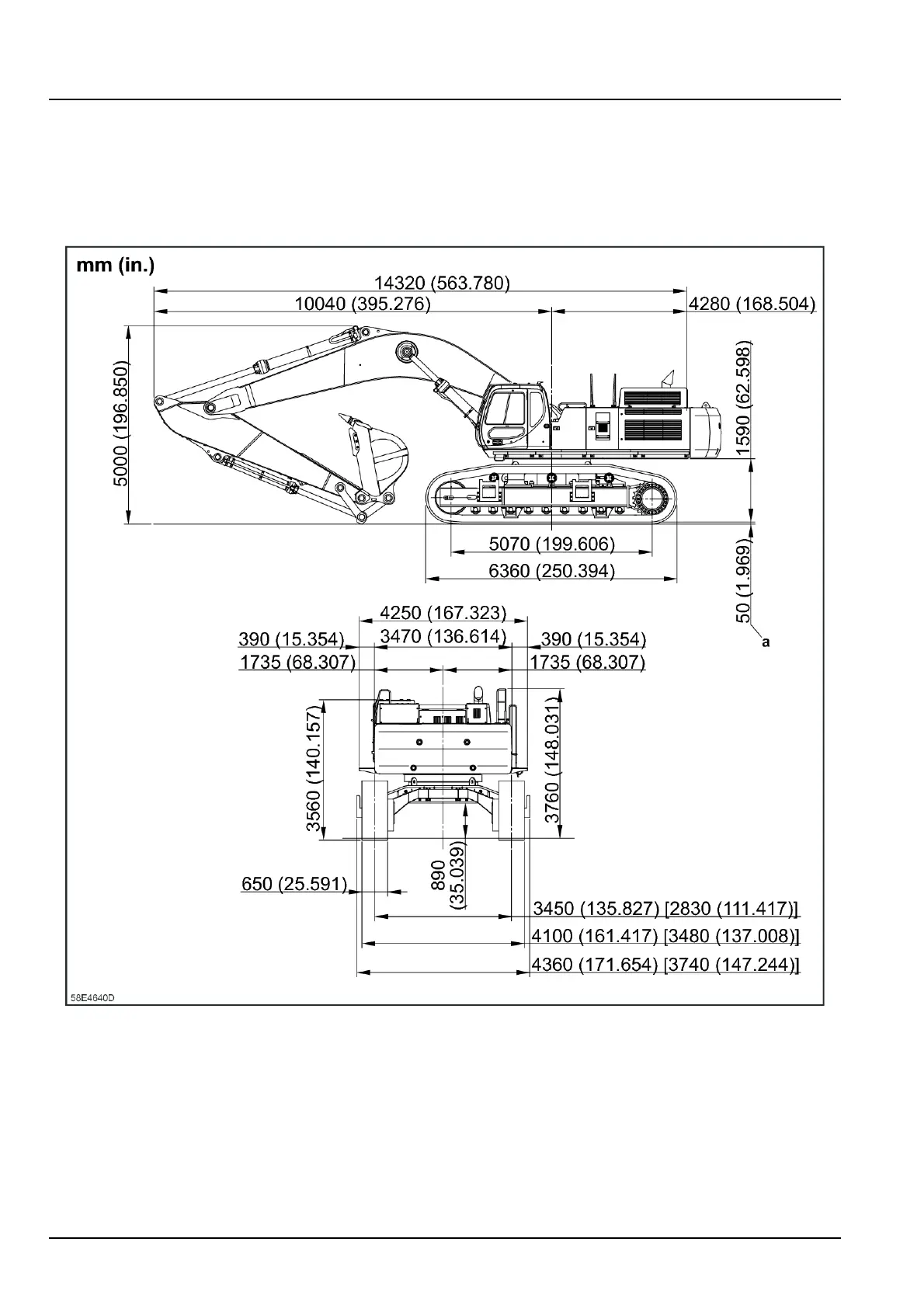

Longarm[4.44m(14.57ft)]
NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-
sons.
NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[50mm(1.969in)].
NOTE:Thedimensionwithinthebracketsindicatesthemaximumretractedlengthduringtransport.
58E4640D3
NOTE:Allthedimensionsingureareinmm(in.)
4802029215/06/2016
32
