INTRODUCTION

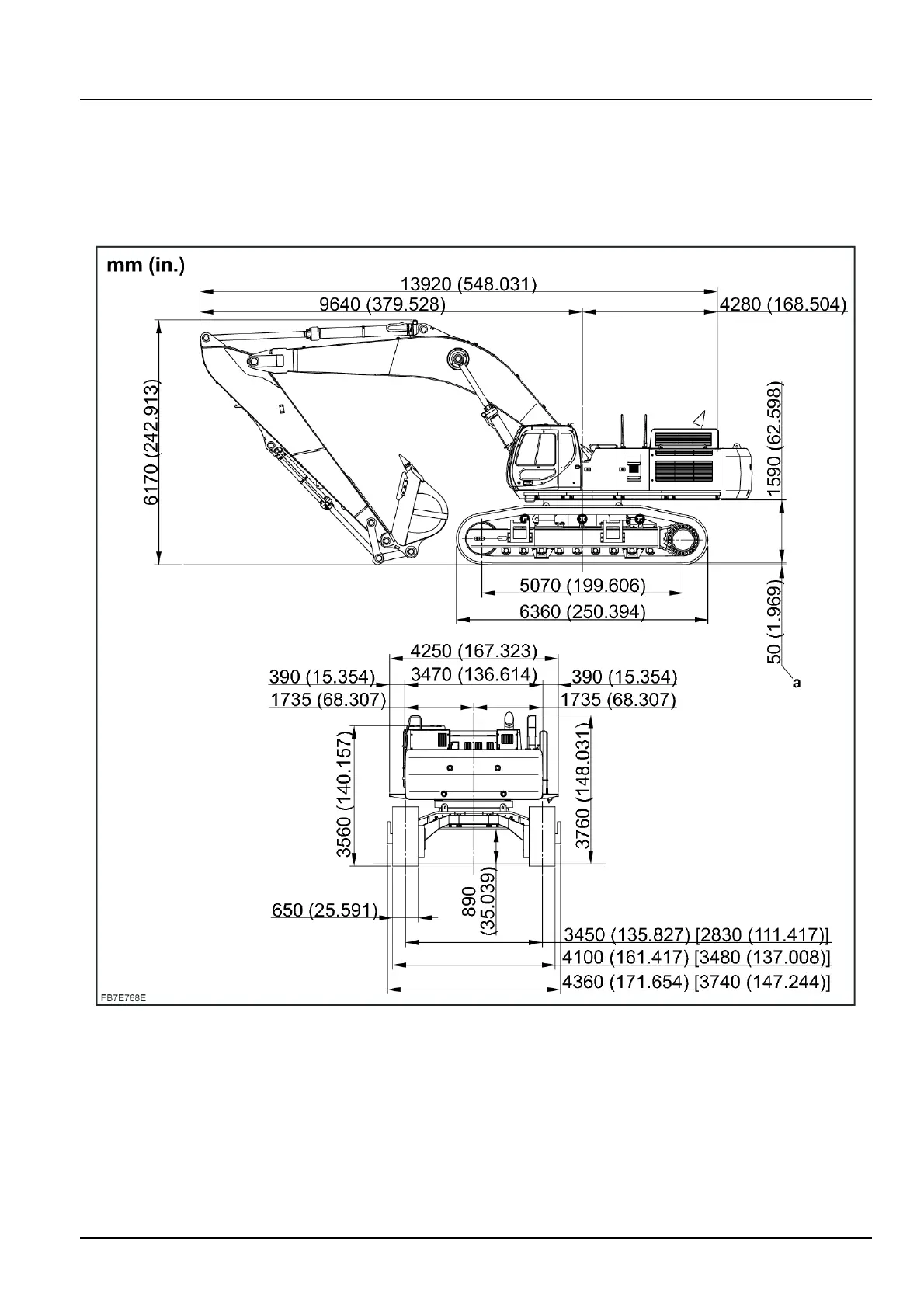

Ultra-longArm[5.62m(18.44ft)]
NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-
sons.
NOTE:Thevaluesindicatedinthediagramincludetheshoelugheight(a)[50mm(1.969in)].
NOTE:Thedimensionwithinthebracketsindicatesthemaximumretractedlengthduringtransport.
FB7E768E4
NOTE:Allthedimensionsingureareinmm(in.)
4802029215/06/2016
33
